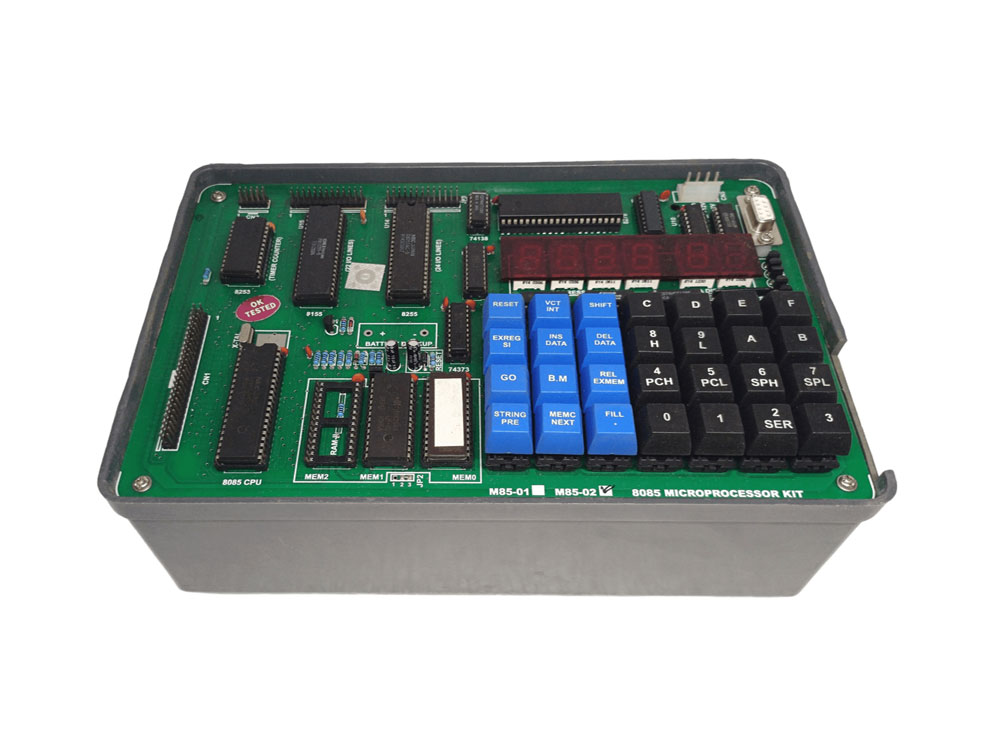

8085 Microprocessor Board (LED ver.)

• Based on 8085 CPU operating at 6.144 MHz
• 88KB of RAM with Battery Backup, 8K Monitor EPROM
• Peripheral like 8255,8253, RS-232 using SID/SOD lines
• 28 keys keyboard with six 7- segment display using 8279
• In-Built Power Supply of +5V/1.5A, ±12V/250mA

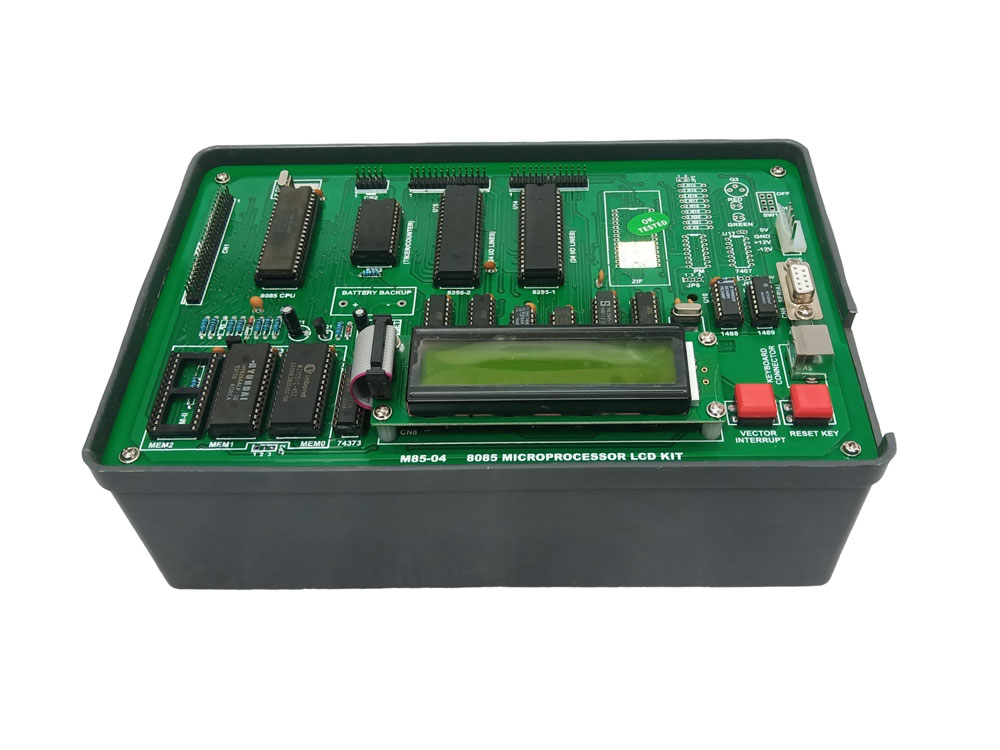

8085 Microprocessor Board (LCD ver.)

• Based on 8085 CPU operating at 6.144 MHz.
• 8KB of RAM with Battery Backup, 8K Monitor EPROM
• Peripheral like 2X 8255,8253, RS-232 using SID/SOD lines
• 20x2 Alphanumeric LCD Display with Backlite with 101 ASCII Keyboard
• On board Single Line Assembler / Disassembler
• In-Built Power Supply of +5V/1.5A, ±12V/250mA

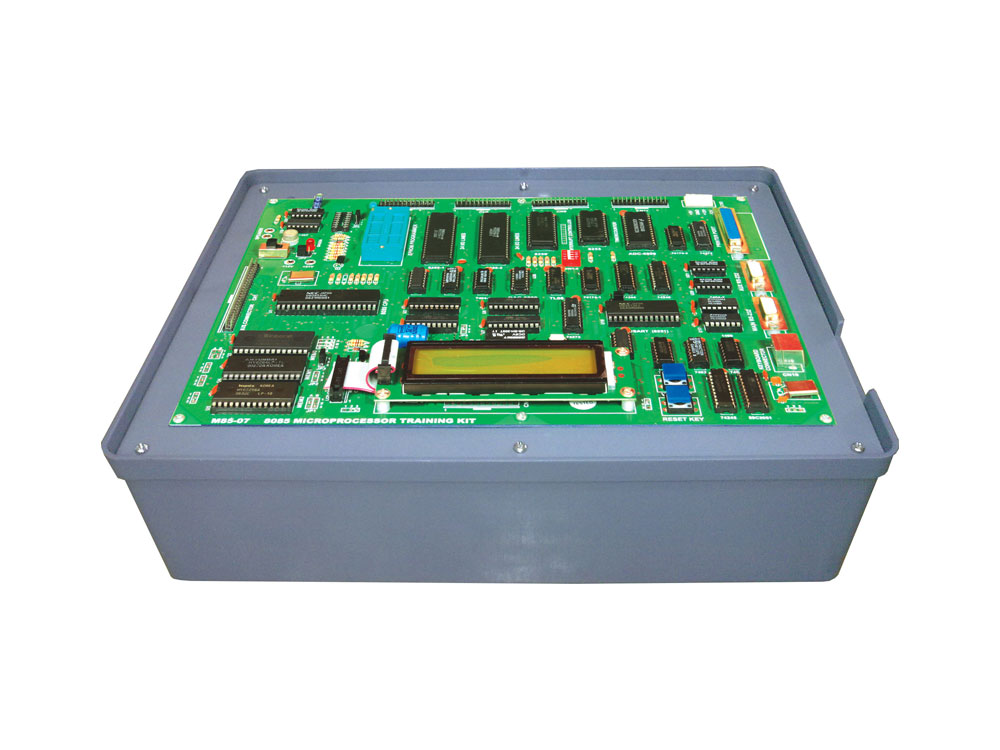

Advance 8085 Microprocessor Board (LCD ver.)

• Based on 8085 CPU operating at 6.144 MHz.
• 8KB of RAM with Battery Backup, 8K Monitor EPROM
• Peripheral like 2X 8255, 8253, 8259, 8251, RS-232 using SID/SOD lines
• On-board Eprom Programmer,ADC0809,DAC0800,Relay,OPTO, Printer interface
• 20x2 Alphanumeric LCD Display with Backlite with 101 ASCII Keyboard
• On board Single Line Assembler / Disassembler
• In-Built Power Supply of +5V/1.5A, ±12V/250mA

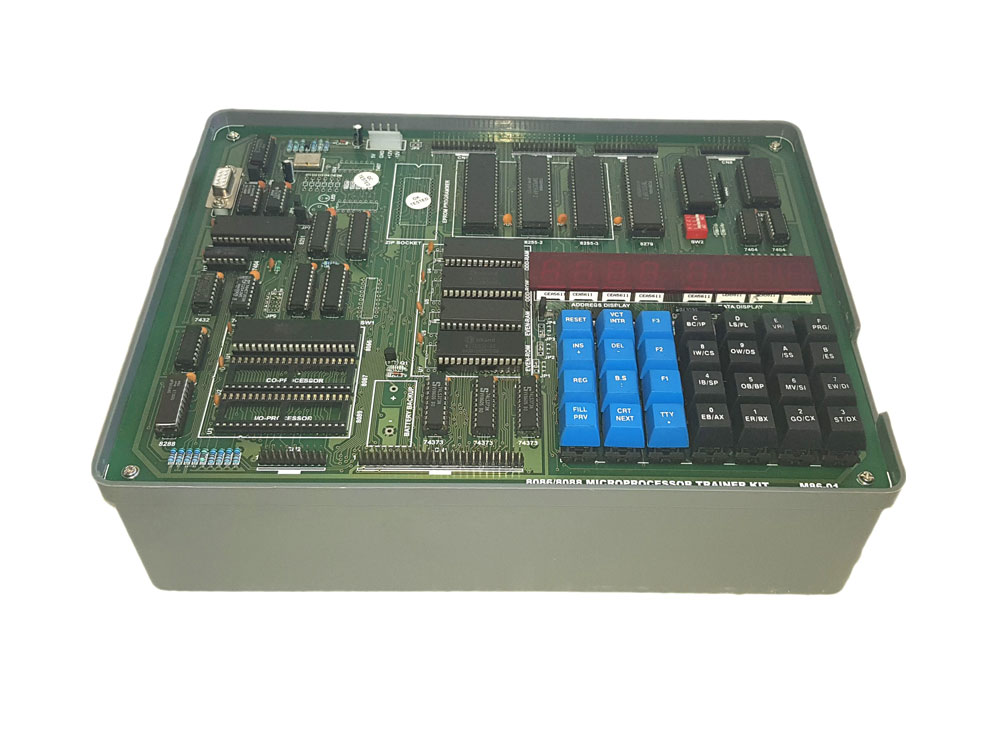

8086/8088 Microprocessor Board (LED ver.)

• Based on 8086/8088 CPU operating at 2.5/5MHz
• 16KB of RAM with Battery Backup, 16K Monitor EPROM
• Peripheral like 3x 8255, 8253, 8259, 8251 RS-232 interface
• 28 keys keyboard with six 7- segment display using 8279
• In-Built Power Supply of +5V/1.5A, ±12V/250mA

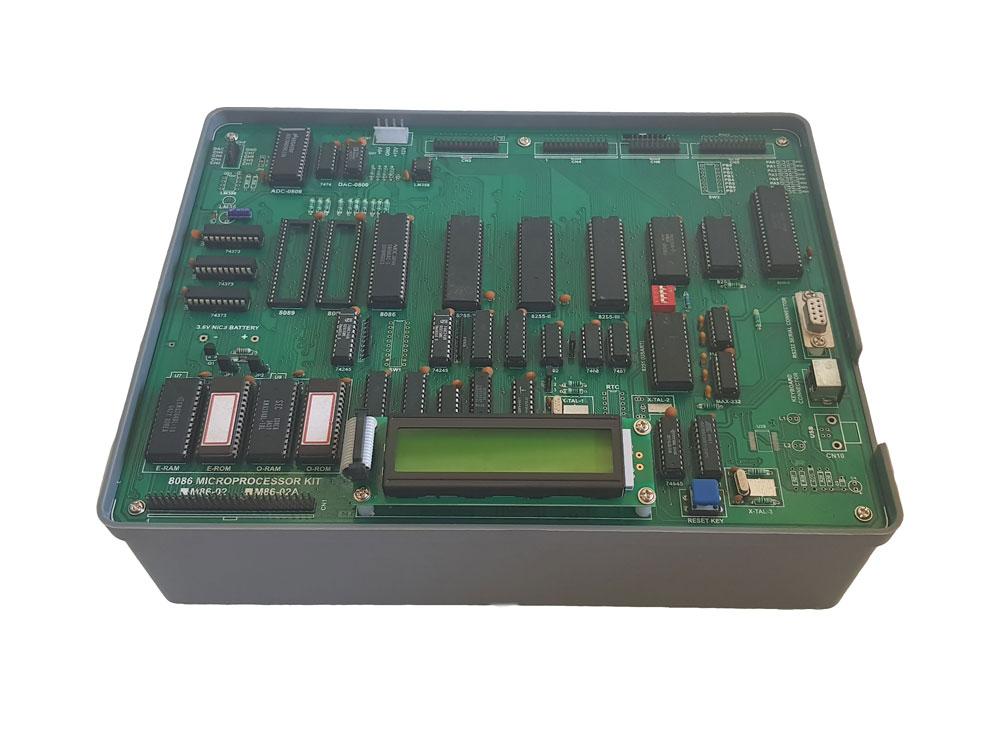

8086/8088 Microprocessor Board (LCD ver.)

• Based on 8086/8088 CPU operating at 2.5/5MHz
• 16KB of RAM with Battery Backup, 16K Monitor EPROM
• Peripheral like 3x 8255, 8253, 8259, 8251 RS-232 interface
• On-board ADC0809,DAC0800,LM35 sensor.
• 20x2 Alphanumeric LCD Display with Backlite with 101 ASCII Keyboard
• In-Built Power Supply of +5V/1.5A, ±12V/250mA
