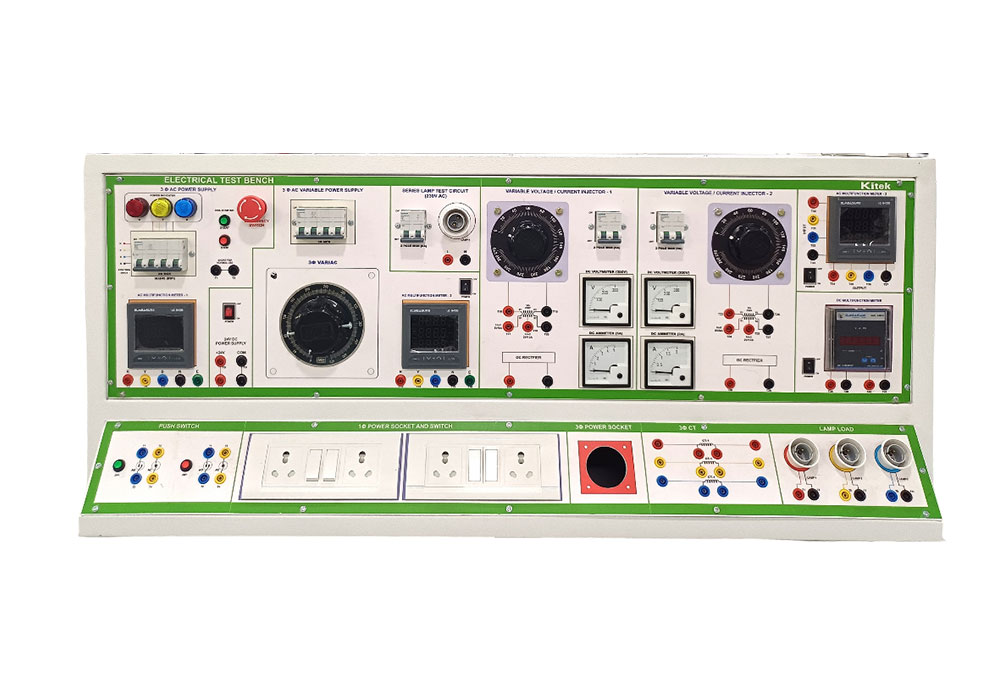

ELECTRICAL WORK BENCH

• Complete workbench is powder-coated and divided into three sections for better aesthetics.
• Equipped with measurement facilities for experimentation on AC machines, DC machines, and transformers.
• Terminals provided for three-phase fixed & variable AC supply and variable DC supplies with protection.
• Heavy-duty all-welded structure made from 2mm × 38mm × 38mm square mild steel.
• Durable construction with 18mm wooden top and anti-static mat for safe working.
• Overall Dimensions: Length 1250 mm × Width 1150 mm × Height 1350 mm (with leveling screws) × Depth 800 mm.
• Fixed MS drawers (200 mm × 400 mm × 300 mm, 1.2 mm thick) with handle and lock.
• Emergency mushroom switch for protection against short circuits.
• Caster wheels with locking mechanism on the front side for easy mobility.
• Rust-free powder coating finish.
• Mimic diagram on panel with 4 mm shrouded sockets.
• Input/output connections with 4 mm shrouded cables of various lengths.

Instruments Included

• 3 Phase AC Power Supply, AC Multifunction Meter. DC Multifunction Meter Panel
• 3 Phase AC Variable Power Supply, Variable Voltage / Current Injector
• Series Lamp Test Circuit (230V AC),Push Switch, 1-Phase Power Socket & Switch
• 3 Phase Power Socket,3 Phase Current Transformer (CT),Lamp Load

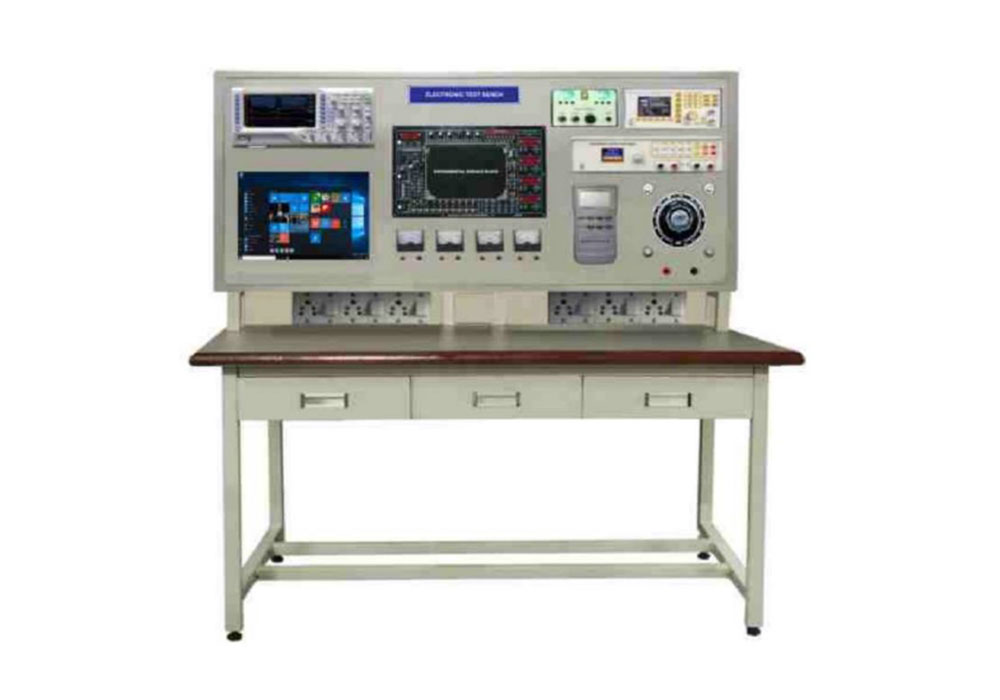

ELECTRONICS WORK BENCH

• Basic Electronic Workbench, Heavy duty all
• welded (2mm X 38mm) approx. round
• Tubular mild steel structure.
• Construction is for long wearing use.
• Sufficient working area with appx.18mm
• Wooden top and anti-static mat.
• Work Station Dimensions: Width 900 mm, Height 1450 mm approx.
• (with leveling screws), Depth 750 mm
• Major Specifications: Epoxy Coated 2mmX38mm mild steel
• tubular structure: Epoxy coated 1.0mm mild steel instrument and electric panels :18 mm thick laminated wooden top

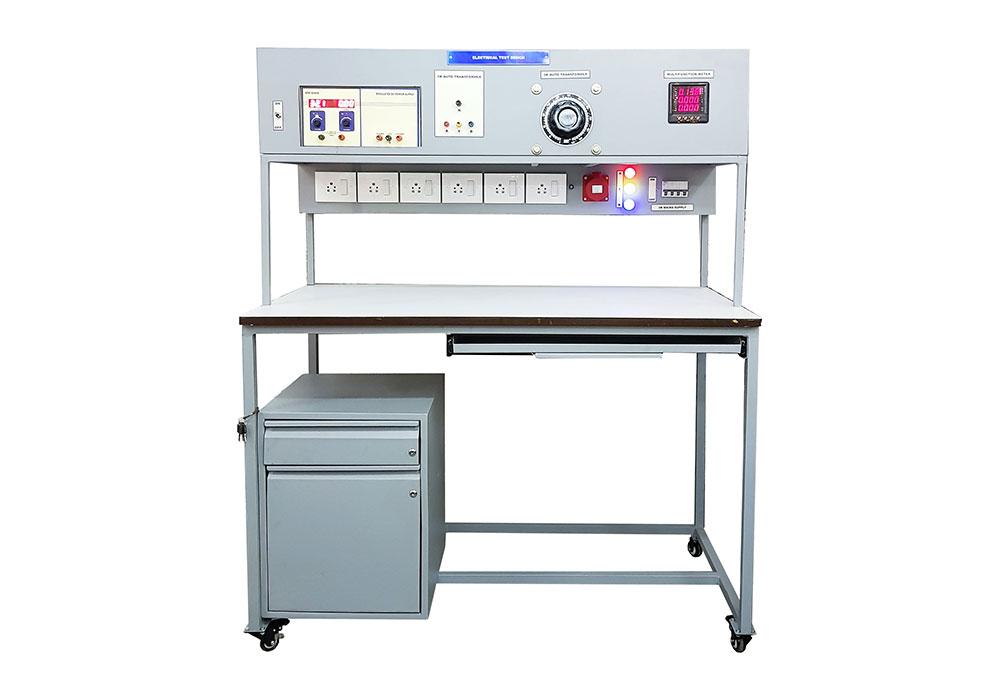

ELECTRICAL WORK BENCH

• Table is made from 3 assemblies & subassemblies
• Bottom stand Pi type structure with table top, drawers etc.
• Hind rectangular box, also called as switch box, to hold 1 power sources, switches, sockets, MCBs etc.
• Top side rectangular box mounted on top of Hind or switch box to house various instruments
• MS square tube (Heavy duty) Colours: Brown / off white powder coating OR Optionally sturdy aluminum profile/frame.
• The structure of the top table of Iron Tube (20mm X 60mm) and thickness of 2mm
• Square tube Support in the middle of the top frame to strengthen the structure

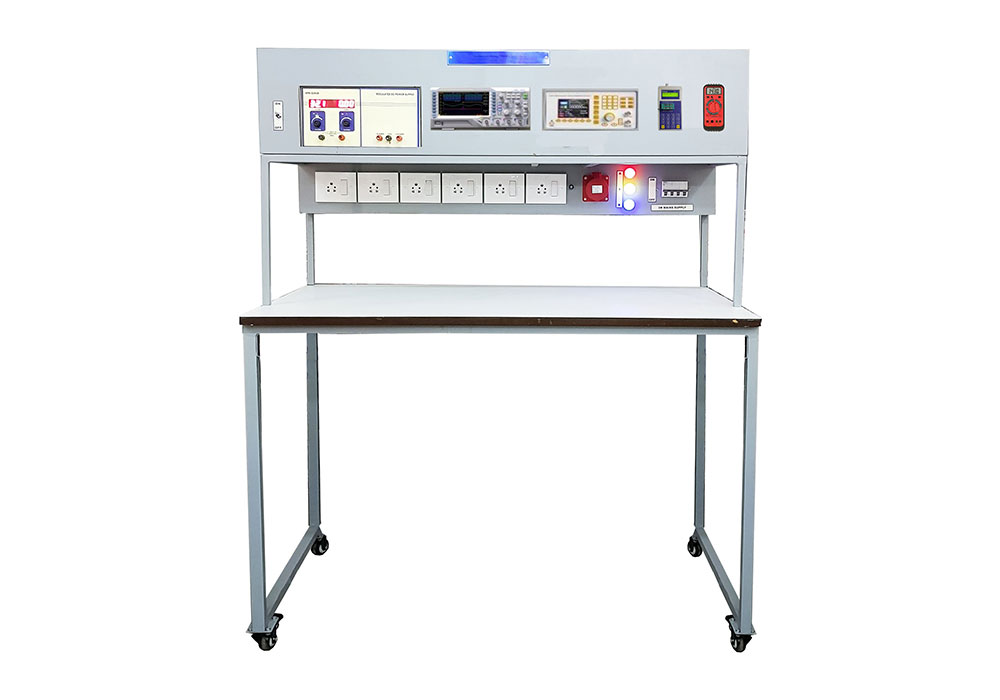

ELECTRONIC WORK BENCH

• Table is made from 3 assemblies & subassemblies
• Bottom stand Pi type structure with table top. Drawers etc.
• Hind rectangular box, also called as switch box, to hold 1f & 3f power sources etc. c) Optional top
• Side rectangular box mounted on top of Hind or switch box to house various instruments like CRO, FG, & power supplies etc.
• The sturdy basic structure is made of CRC
• Powder coated pipes of size 38 X 38 X 1.5 mm.
• The overall dimensions of Workbench is Width

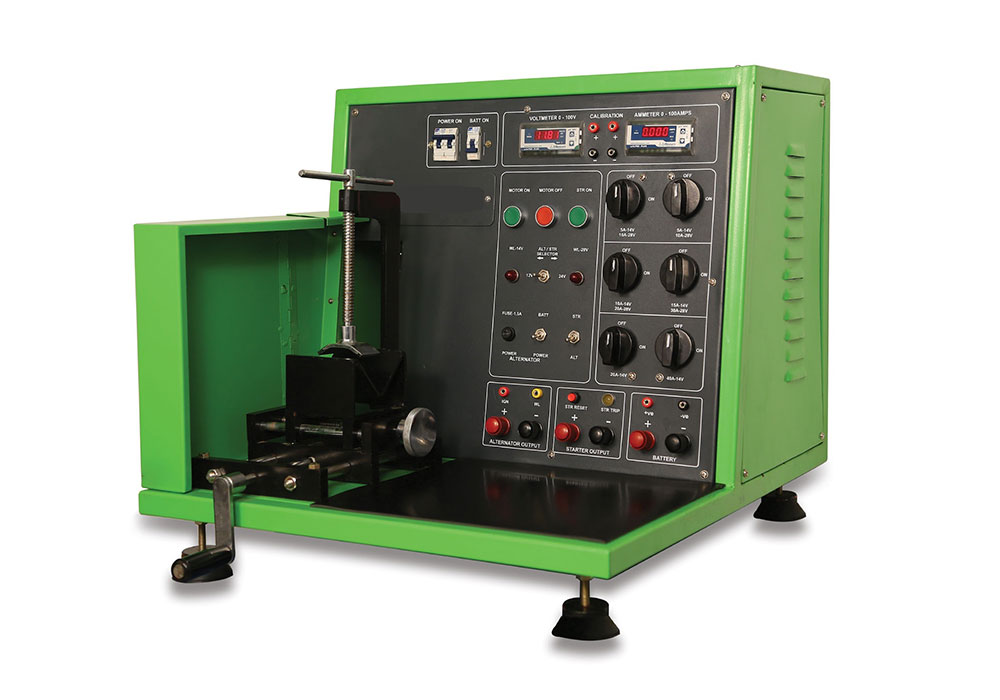

AUTO ELECTRICAL TEST BENCH – SINGLE PHASE

• Enables testing of alternators up to 90A/ 12V and 75A/ 24V
• Starter free spin testing directly from battery and short-circuit test facility available
• Testing of both V Pulley and Poly V groove pulley mounted Alternators at High speed (6000 rpm) and low speeds (1500rpm, 1800rpm)
• Alternator loading through six rotary switches
• Battery Charging facility available during the alternator testing process
• Vehicle simulation of battery charging through Alternator
• Provided with 12 V battery supply for testing a wide range of electrical components like horns, bulbs, relays, child parts of Starters and Alternators

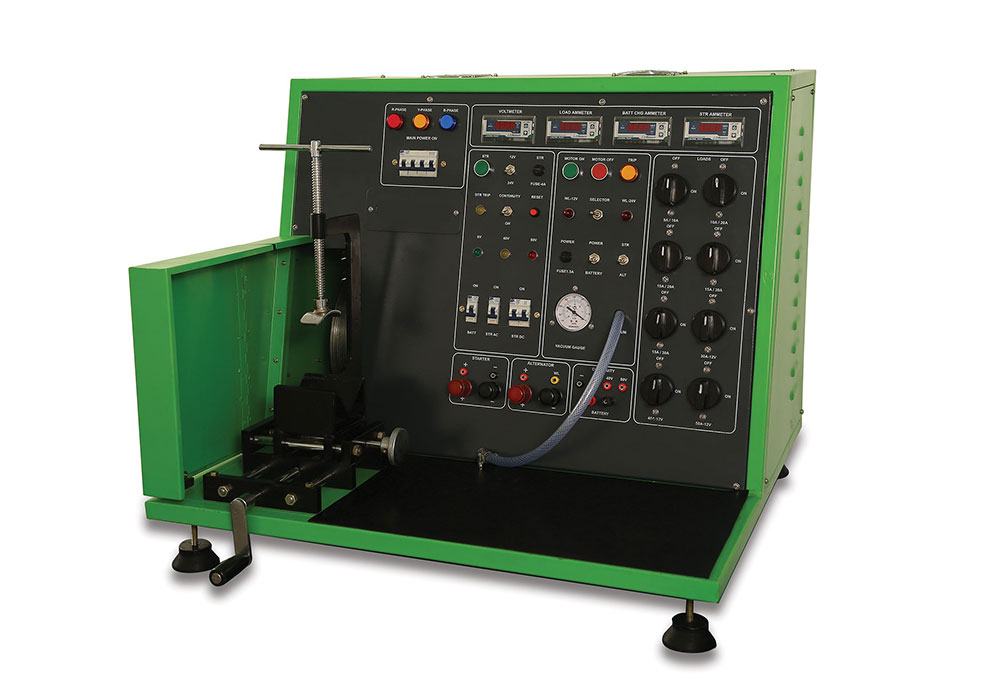

AUTO ELECTRICAL TEST BENCH – THREE PHASE

• The readings can be read through digital meters
• 5 HP, 3 Phase, 1440 RPM motor induction motor suitable for 50 Hz / 415 V AC Supply with variable frequency drive 5 hp for speed variation
• Alternator loading up to 170 A / 14 V & 110 A / 24 V
• Heavy duty transformer for starter testing with light run test
• Poly V / V groove for alternator checking
• Battery charging ammeter to read the battery current
• Heavy duty rugged frame for mounting alternator & starter
• Three phase 4 pole isolator switch
• All tripping MCB’s available
• PCB / bat excitation available
• Accessories like bulbs / fuses / belts and cables for test of alternator / starter/ continuity / battery along with manual & calibration certificates to be provided
• Facility to check continuity test of excitation winding using 6 V - DC Output
• Facility to check short circuit of starter / alternator- rotor using 40 / 80 V AC
• Dimensions: Length X Width X Height: 800mm X 850mm X 650mm (Approx.)
• Weight: 150 Kgs net (Approx.)
• Facility to charge battery (Not in the scope of supply) using appropriate cable harness.
• Components of Auto Electrical Test Bench:
• Volt Meter Digital, 0-30 V DC-1 No
• Ammeter Digital, 0-30 A-1 No
