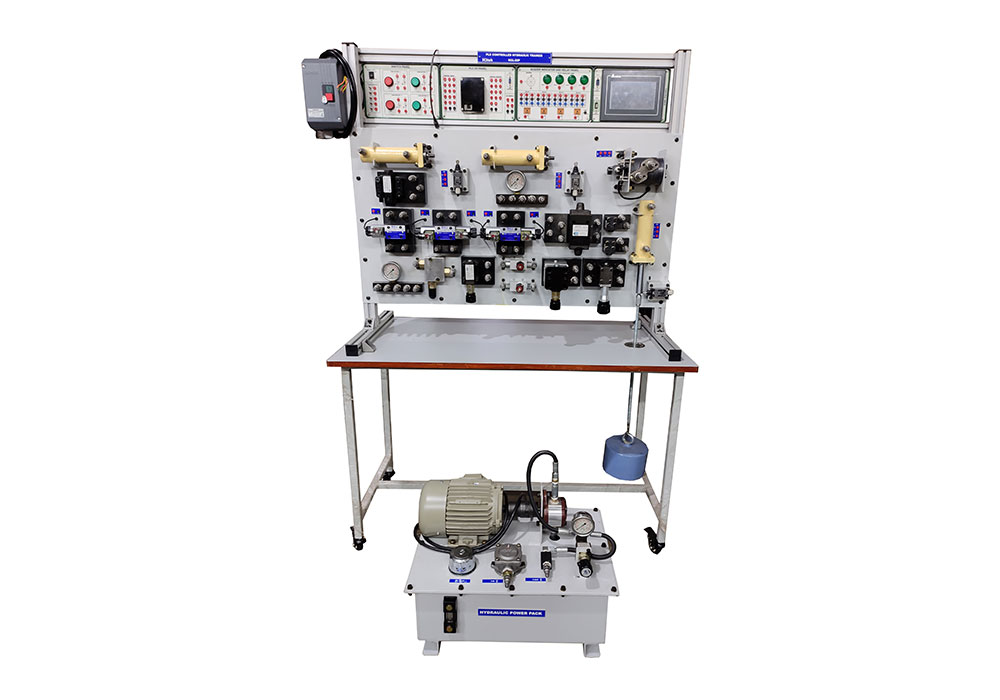

ELECTRO-HYDRAULIC TRAINER

• Electro-Hydraulic Trainer System is a very versatile self - contained training package for the teachers and students in hydraulics.
• Electro-Hydraulic Trainer consists of flat control panel with general purpose component area provided using 40X40 mm Aluminum profile rack with MS Plate size of 1115 x 950 mm (W x H).
• General purpose area of size 1000 x 700 mm (W x H) for fixing Hydraulic Component.
• Trainer Mountable Aluminium Stand for Hydraulic Hose Pipes
• Single Phase 220V DOL Starter with 2Pole MCB/6A, Contractor 9A, relay 4.5A – 6.3A with Start/Stop Switch for Hydraulic Power Pack
• Optionally available Hydraulic components, PLC’s & HMI’s makes it suitable for beginner as well as advance user.
• Electronics control having below components mounted in numbers of ABS enclosure having
• 230V AC Supply input
• 24V/2A DC output Power Supply
• 5 No’s of Toggle Switch /2A
• Dual Cyclic Timer Output NO, NC control contacts /2A
• Four No’s. of SPDT Switch NO, NC Switch
• 3 No’s of Relay Output NO, NC /5A
• 3 No’s of 22mm Led Indicators
• Directional Control Single Solenoid Valve (3/2 way) 24VDC coil with Sub plate having QRC on front side
• Directional Control Double Solenoid Valve (4/3 way) 24VDC coil with Sub plate having QRC on front side
• Directional Control Double Solenoid Valve (4/2 way) 24VDC coil with Subplate having QRC on front side
• Single Acting Cylinder (10cm stroke) up to 100bar with QRC on front side
• Double Acting Cylinder (10cm stroke) up to 100bar with QRC on front side
• Check Valve up to 100bar with Subplate having QRC on front side
• Two Numbers of Flow Control Valve with QRC on front side
• Proximity Sensor 8mm dia, PNP type 10-24V Supply
• Two numbers Electrical Limit Switch NO,NC
• 100bar Pressure Gauge
• 4 Port Manifold (2No’s) with QRC on front side
• Two Numbers of T Connector with Male & Female QRC fitted
• Loading Weight 15Kgs
• QRC fitted Hose Pipe 2-meter length (2 No’s.)
• QRC fitted Hose Pipe 1.5-meter length (4 No’s.)

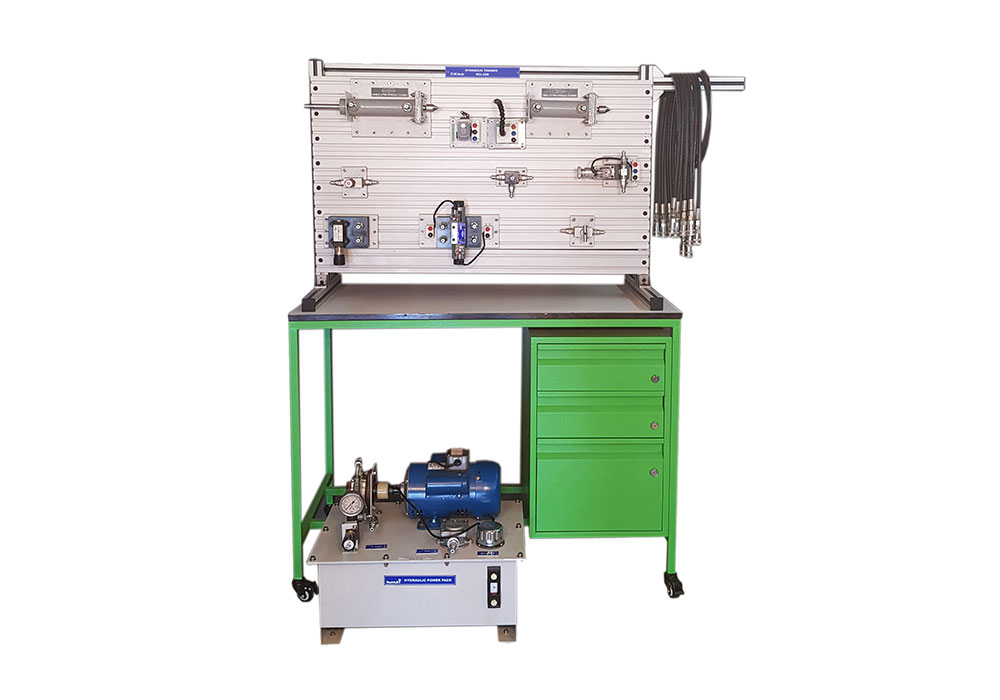

HYDRAULIC TRAINER

• Hydraulic Trainer System is a very versatile self - contained training package for the teachers and students in hydraulics.
• Hydraulic Trainer consists of flat control panel with general purpose component area provided using 40X40 mm Aluminum profile rack with MS Plate size of 1115 x 950 mm (W x H).
• General purpose area of size 1000 x 700 mm (W x H) for fixing Hydraulic Component.
• Trainer Mountable Aluminium Stand for Hydraulic Hose Pipes
• Single Phase 220V DOL Starter with 2pole MCB/6A, contractor 9A, relay 4.5A - 7A with Start/Stop Switch for Hydraulic Power Pack
• Optionally available Hydraulic components makes it suitable for beginner as well as advance user.
• Hand Lever Directional Valve (3/2 way) with Subplate having QRC on front side
• Hand Lever Directional Valve (4/3 way) with Subplate having QRC on front side
• Hand Lever Directional Valve (4/2 way) with Subplate having QRC on front side
• Single Acting Cylinder (10cm stroke) up to 100bar with QRC on front side
• Double Acting Cylinder (10cm stroke) up to 100bar with QRC on front side
• Check Valve up to 100bar with Subplate having QRC on front side
• Two Numbers of Flow Control Valve with QRC on front side
• 100bar Pressure Gauge
• 4 Port Manifold (2No’s) with QRC on front side
• Two Numbers of T Connector with Male & Female QRC fitted
• Loading Weight 15Kgs
• QRC fitted Hose Pipe 2-meter length (2 No’s.)
• QRC fitted Hose Pipe 1.5-meter length (4 No’s.)
