Fiber Optic Communication Trainer, Kitek Technologies PVT. LTD.

Telecommunication Didactic Trainer

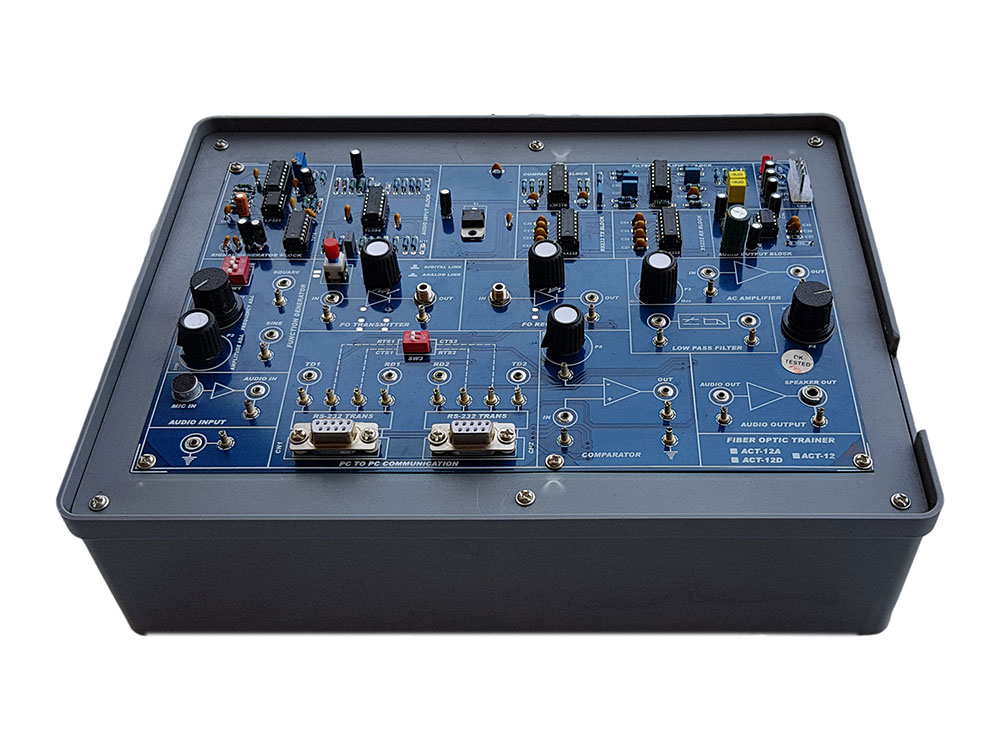

ACT–12

Provided with 1Hz. To 10 KHz sine wave generator with amplitude adjustable & Square Wave (TTL) generator.
One Fiber Optics LED having peak wavelength of emission 660nm Transmitter.
One Fiber Optic photo detector Receiver
On board Analog & Digital Drivers, AC Amplifiers, Comparator.
On board 4th order Butterworth 3.4 KHz cut-off frequency.
FO voice link using microphone & speaker
On board Serial PC to PC link using 9 Pin D-type connector.

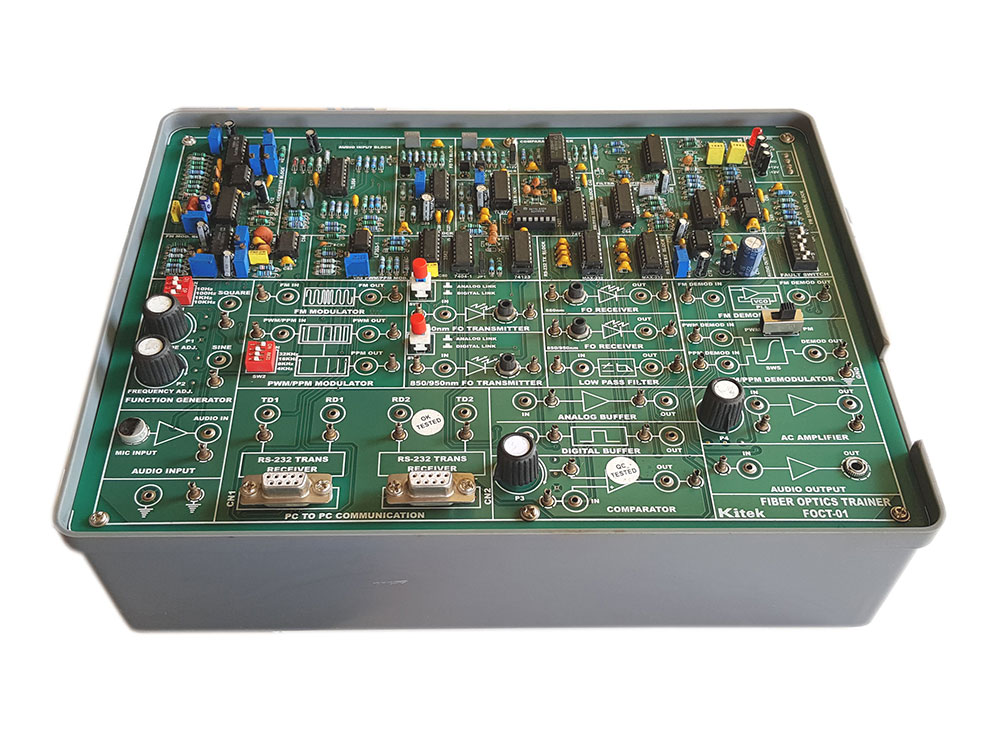

FOCT–01

Provided with 1Hz. To 10 KHz sine wave generator with amplitude adjustable & Square Wave (TTL) generator.
Two Fiber Optics LED having peak wavelength of emission 660nm & 950nm Transmitter, Two Fiber Optic photo detector Receiver
On board Analog & Digital Drivers, AC Amplifiers, Comparator
Modulation Techniques using Direct intensity, FM, PWM, PPM Modulation & Demodulation.
Demodulation Techniques using PLL detector & Low pass amplifier.
On board 4th order Butterworth 3.4 KHz cut-off frequency.
FO voice link using microphone & speaker
On board Serial PC to PC link using 9 Pin D-type connector.

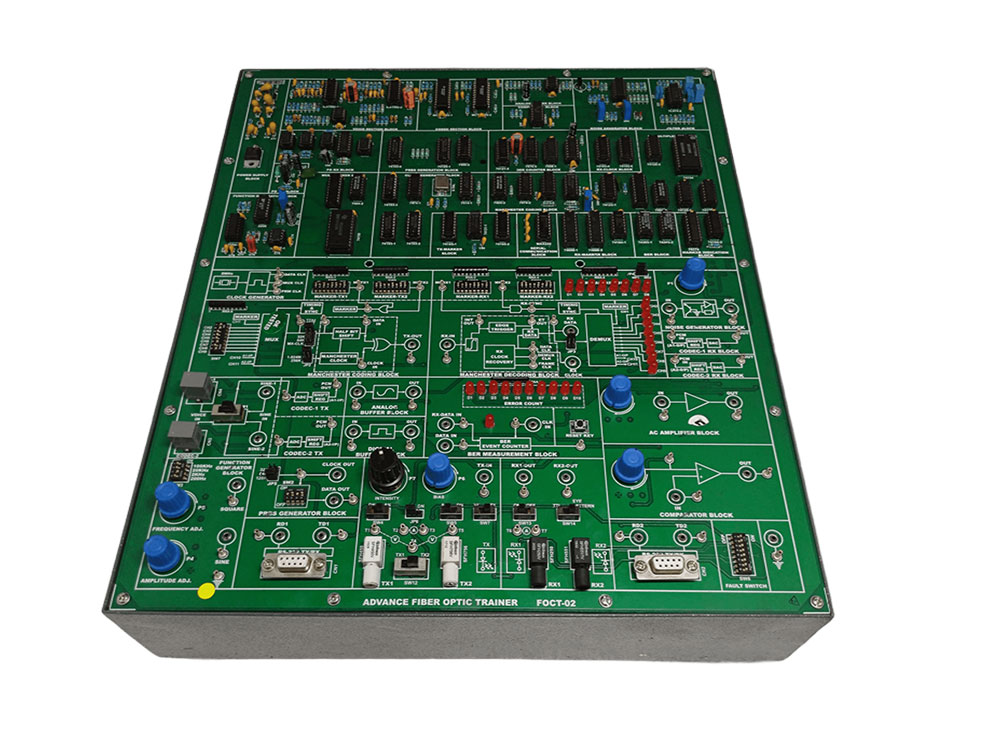

FOCT–02

Provided with 1Hz. To 10 KHz sine wave generator with amplitude adjustable & Square Wave (TTL) generator.
Two Fiber Optics LED having peak wavelength of emission 660nm & 950nm Transmitter, Two Fiber Optic photo detector Receiver
On board Analog & Digital Drivers, AC Amplifiers, Comparator
On board 32K,64K,128K, 1M Clock generator
On board 16 bit PRBS generator and White Noise generator Output
Modulation Techniques using PCM Modulation & Demodulation using codec IC.
16 channel TDM multiplexing & De multiplexing technique with Manchester coding & decoding.
Bit error rate measurement using 8 bit counter with LED indication up to 255 count.
On board 4th order Butterworth 3.4 KHz cut-off frequency.
Two channel voice link using phone & speaker (A-Law).
On board Serial PC to PC link using 9 Pin D-type connector.

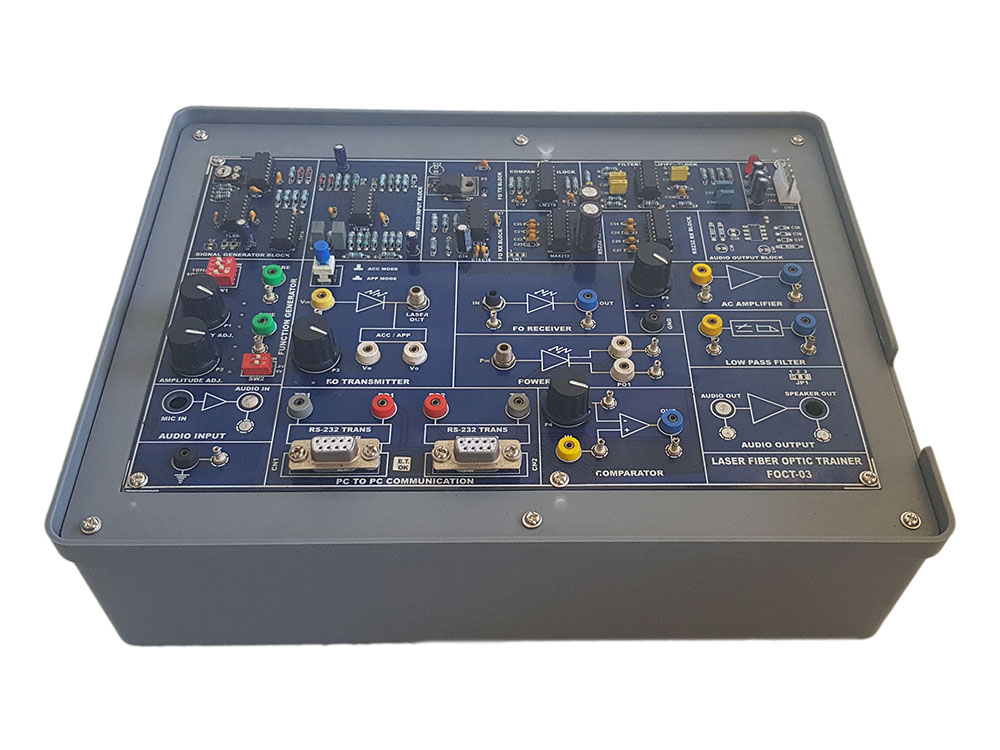

FOCT–03

Provided with 1Hz. To 10 KHz sine wave generator with amplitude adjustable & Square Wave (TTL) generator.
One Laser Fiber Optics LED having peak wavelength of emission 660nm Transmitter, One Fiber Optic photo detector Receiver
On board Analog & Digital Drivers, AC Amplifiers, Comparator.
On board 4th order Butterworth 3.4 KHz cut-off frequency.
On board Serial PC to PC link using 9 Pin D-type connector.

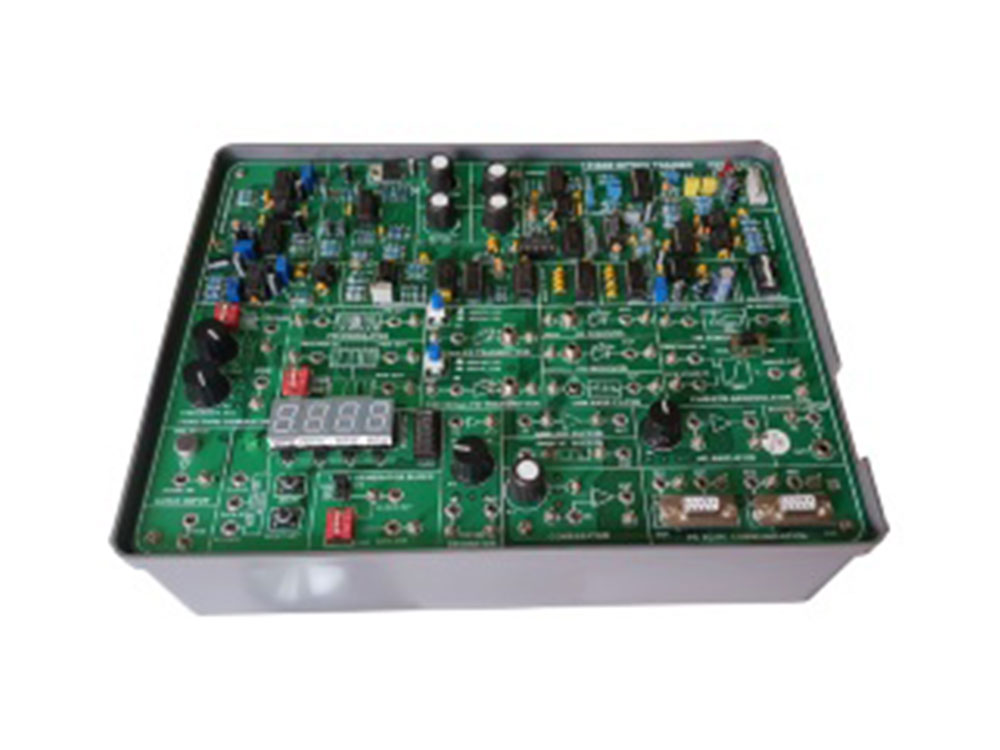

FOCT–04

Two Transmitter Fiber Optics LED having peak wavelength of emission 660nm & 950nm.
Two Receiver Fiber Optic photo detector.
Modulation & Demodulation Techniques using Direct IM, FM, PPM, PWM
Analog Band Width 350 KHz.
Digital Band Width 2.5 MHz
Noise Generator, PRBS Generator, BIT ERROR RATE Meter

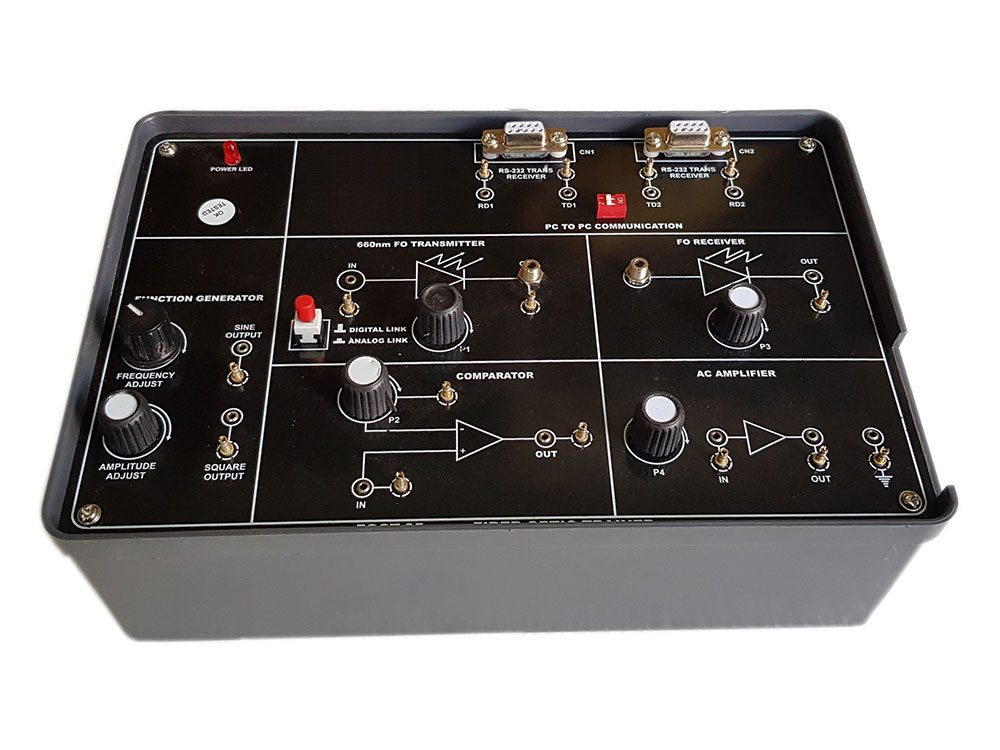

FOCT–05

Provided with 1Hz. To 10 KHz sine wave generator with amplitude adjustable Square Wave (TTL) generator.
One Fiber Optics LED having peak wavelength of emission 660nm Transmitter.
One Fiber Optic photo detector Receiver
On board Analog & Digital Drivers, AC Amplifiers, Comparator.
On board 4th order Butterworth 3.4 KHz cut-off frequency.
On board Serial PC to PC link using 9 Pin D-type connector.

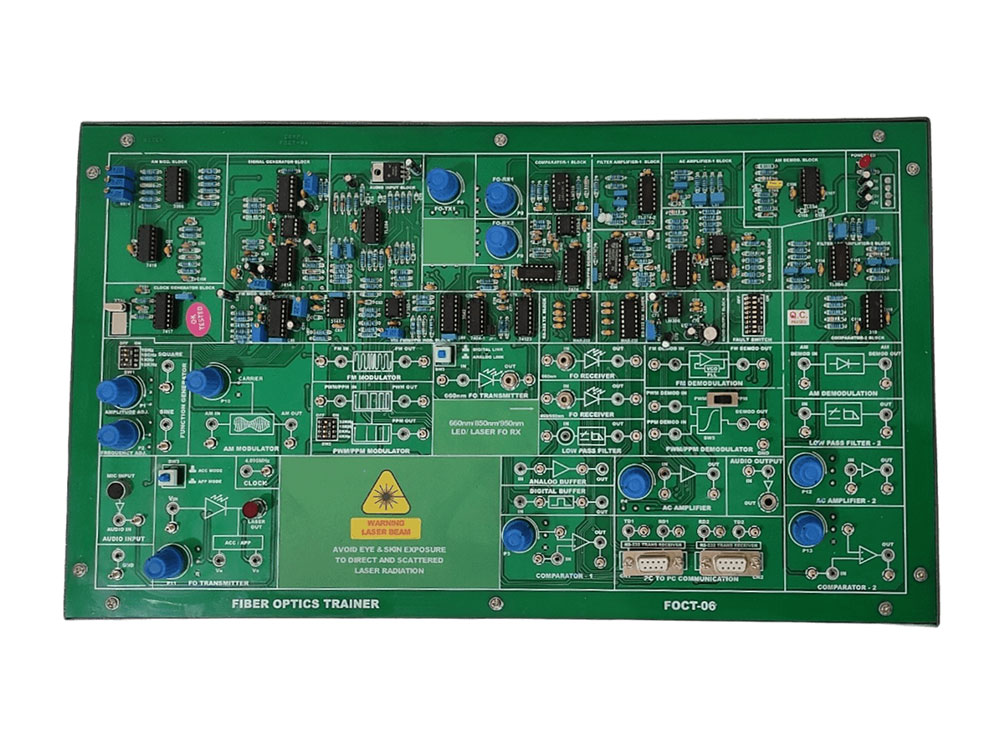

FOCT–06

660nm LED, 850nm/950nm and 660nm Laser Transmitter.
Two Nos. of Photo Detector.
On-board Sine & Square wave generator.
On-board AM, FM, PWM & PPM Modulation & Demodulation
On-board 4th Order Low Pass Filer.
On-board Fault Switch.
Two Transmitter Fiber Optics LED having peak wavelength of emission 660nm & 850/950nm.
One Transmitter LASER Diode having peak wave length of emission 660nm
Two Receiver Fiber Optic photo detector.
Modulation & Demodulation Techniques using AM, FM, PWM & PPM.
On-board one Analog & Digital mode Drivers & Noise Generator
In-Built Power Supply.

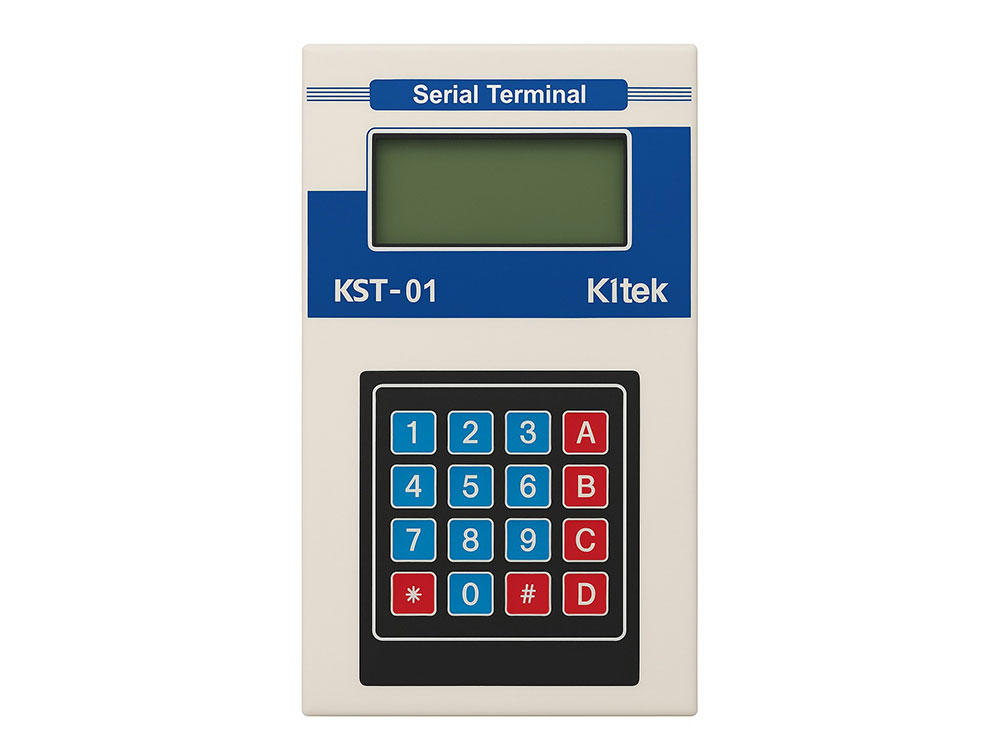

KST-01

16 x 4 LCD Display
Serial Communication Using at Different Baud Rate.
Serial Communication between Serial Terminal & Fiber Optic Trainer using Via RS-232
Serial Communication between Two Fiber Optic Trainer using Serial Terminal & Fiber Optic Trainer
Serial Communication between Two Fiber Optic Trainer using Serial Terminal & Fiber Optic Trainer via USB Port
16-key numeric & alphanumeric keypad
Power supply: 5V DC adaptor
RS-232 & USB-based communication

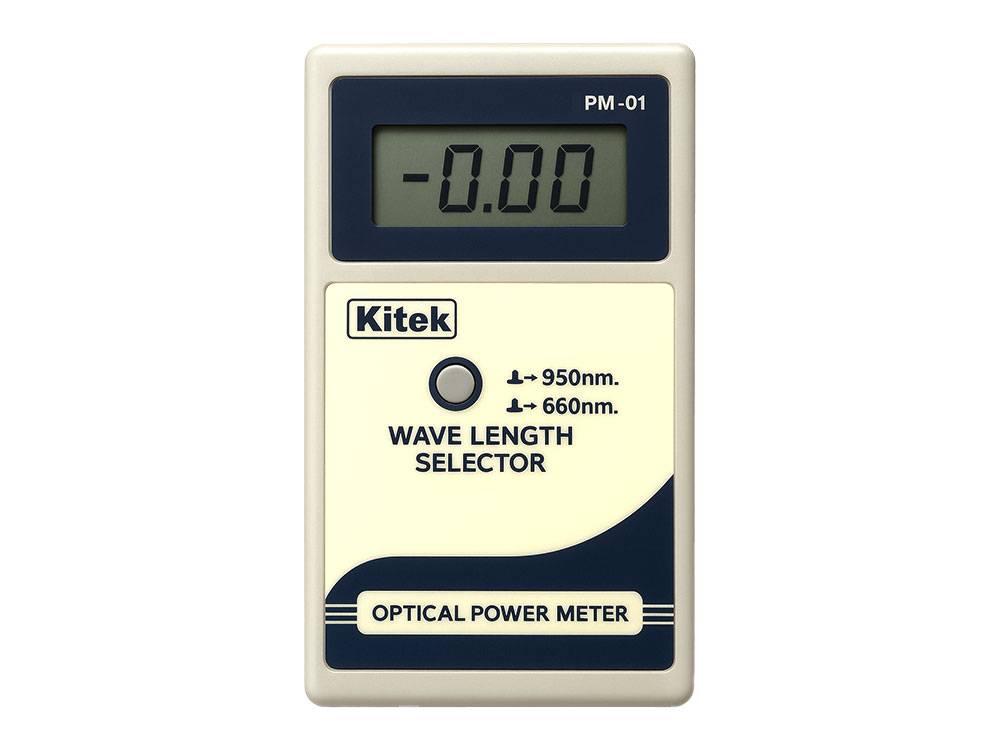

PM-01
