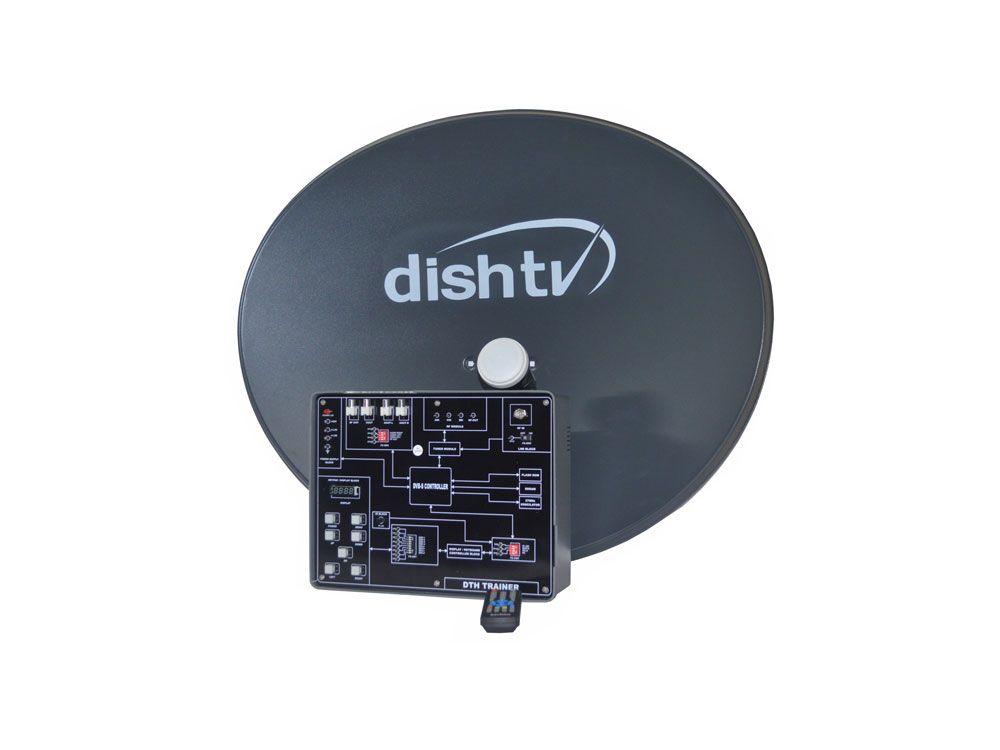

DIGITAL SATTELITE RECIEVER TRAINER

• RF Input 950-2150 MHZ with Input Impedance : 75 Ohm
• RF Output 470MHz to 862MHz (approx.)
• Ku & C band type LNB are provided.
• 6" Dish Antenna with Dish Input F type Connector
• RCA type Composite Video Output, Audio Output, TV Output.
• PAL/NTSC Video Output
• IF Frequency Bandwidth 27MHz-36MHz
• Video Output level 1Vpp (75 load)
• 352 x 288 Image Resolution
• Controls Power, Menu, Channel Up/Down OK, Left, Right
• 17 no’s of Test Points provided.
• Power Supply 110V - 260V AC, 50Hz/60Hz
• Dish Antenna & LNB should be mounted on Aluminum profile

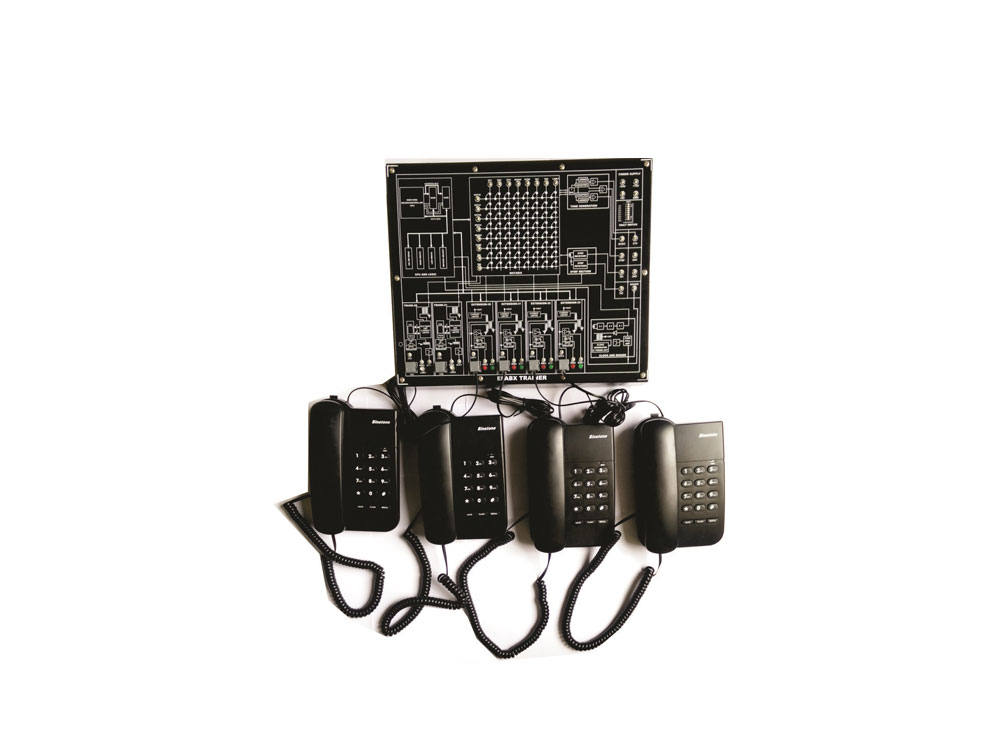

TELEPHONE EXCHANGE TRAINER

• 89E516RD Microcontroller based stored program control having Memory of 72KB Program memory & 1KB Data RAM memory.
• No. of Subscribers Two DOT Lines, Four Extension Lines
• Line Section are Opto Isolated for Trunk Lines and 4 Extension Lines.
• Tone Generation like Dial Tone, Busy Tone, Ring Back Tone, Hold-on music etc.
• Speech Path is Fully Non- Blocking.
• Switch Faults: 8 Switch Faults are provided on board to study different effects on circuit.
• Test Points: 46 Nos.
• On board Power +11V, +23V, +5V, +15V.
• Input Power: 230V AC, 50Hz.
• Telephone set: 4 Nos.

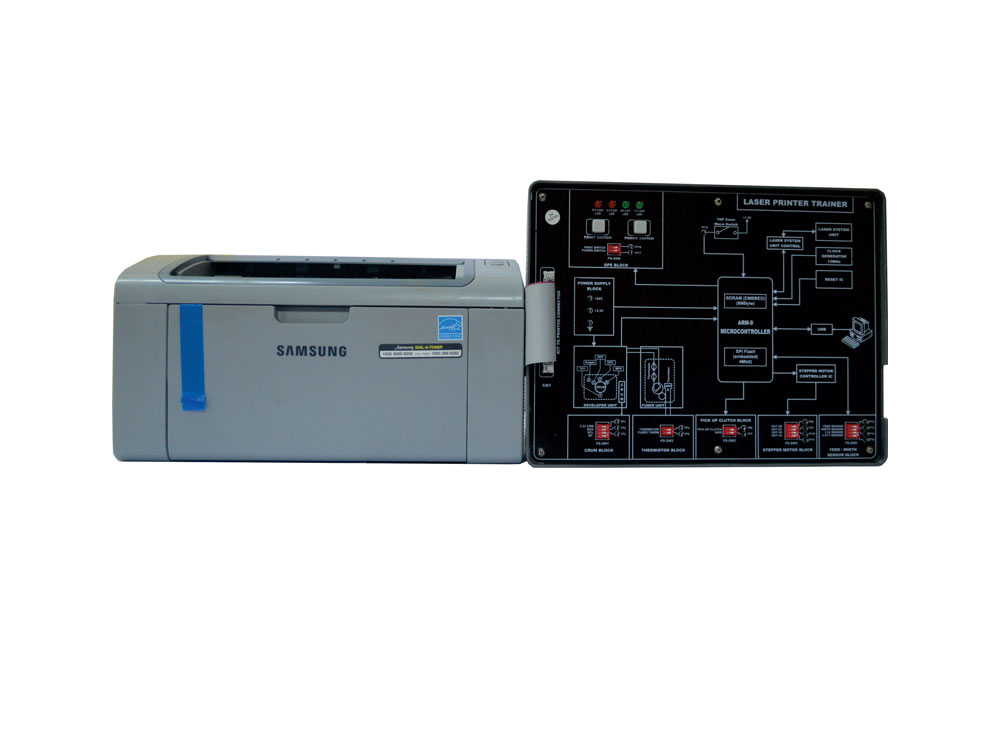

LASER PRINTER TRAINER

• ARM-9 Processor 300 MHZ having Memory 8 MB
• Interface Hi-Speed USB 2.0
• Engine Speed Simplex Up to 20 ppm in A4 (21 ppm in Letter)
• Fault creating facilities for CRUM, Thermistor, Stepper Motor, Pickup Clutch, Feed Sensor, Width Sensor, Power Switch, Printer Switch, and Printer Door.
• 17 Fault Switch with 21 Test Points provided on-board.
• Led indicators provided on the LPT-01 PCB for sensing Power, Error, Ready, Toner and Power On, Print Switch.

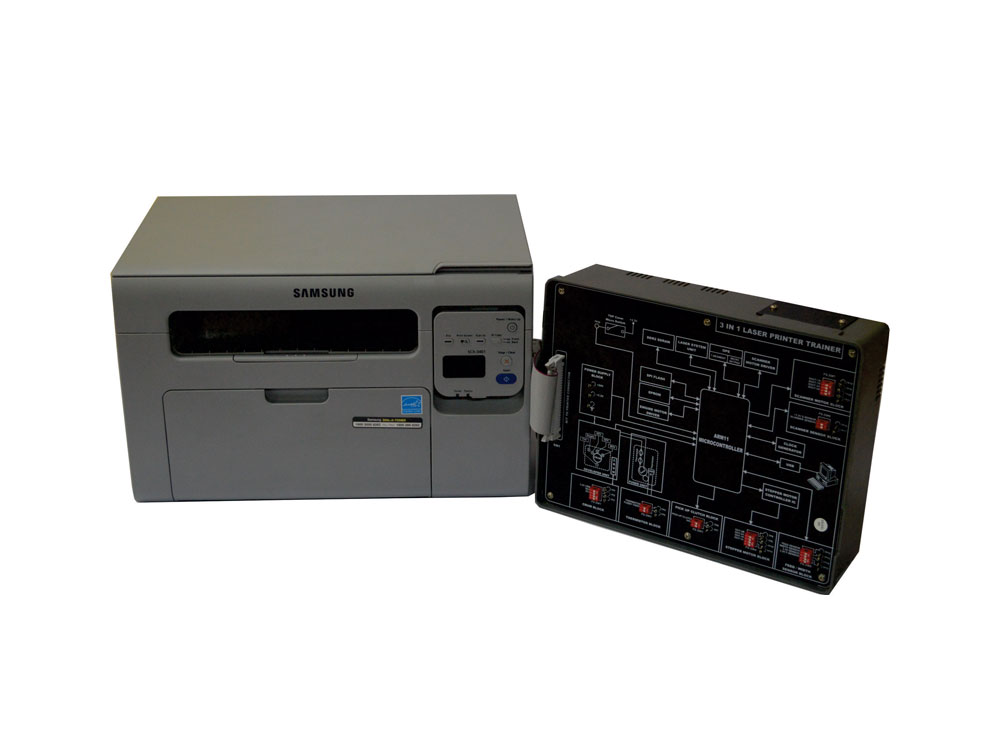

COPIER, SCANNER, LASER PRINTER TRAINER

• ARM-11 Processor 433 MHZ having Memory 64 MB
• Interface Hi-Speed USB 2.0
• Copy Speed Simplex to Simplex Up to 20 ppm in A4 (21 ppm in Letter)
• Scan Method Color CIS Compatibility TWAIN, WIA
• Fault creating facilities for CRUM, Thermistor, Stepper Motor, Pickup Clutch, Feed Sensor, Width Sensor, Scanner Stepper Motor, Scanner Sensor, and Printer Door.
• 21 Fault Switch with 25 Test Points provided on-board.
• Led indicators provided for sensing Power, Error, Ready, Toner and Power On, Print Switch.

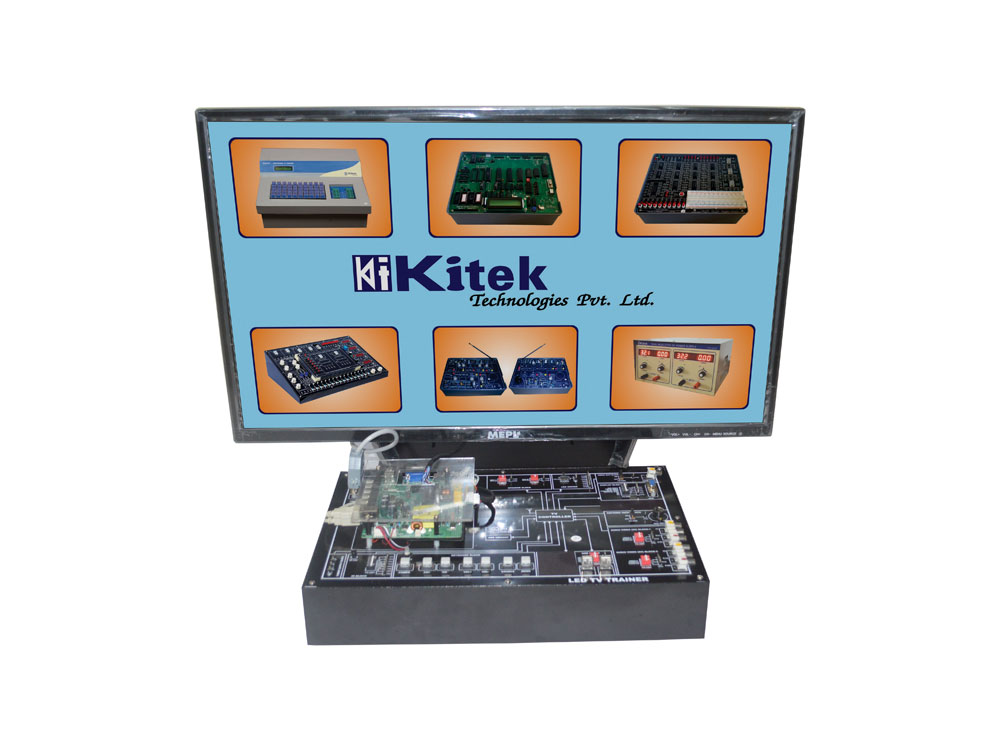

LED/LCD TV TRAINER

• Display 32"Diagonal Size ,Flat panel LED/LCD display
• Max Resolution : 1280 x 1024 having Aspect ratio : 4:3
• Image Brightness 300 cd/m2, Contrast Ratio 350:1, Max H-View Angle 160, Max V-View Angle 160
• Interface RGBVGA(HD-15),Analog Video Input, Composite Video Input, Audio Input, Antenna RF Input
• Tuner Channels : 2 to 69
• Screen display like Volume, Brightness, Contrast, Color, Channel, Tuning
• Remote Control functions: On screen display of Volume, Brightness, Contrast, Channel selection.
• 40 Fault Switch with 40 Test Points provided on-board.
• Audio Amplifier: 3W PMPO

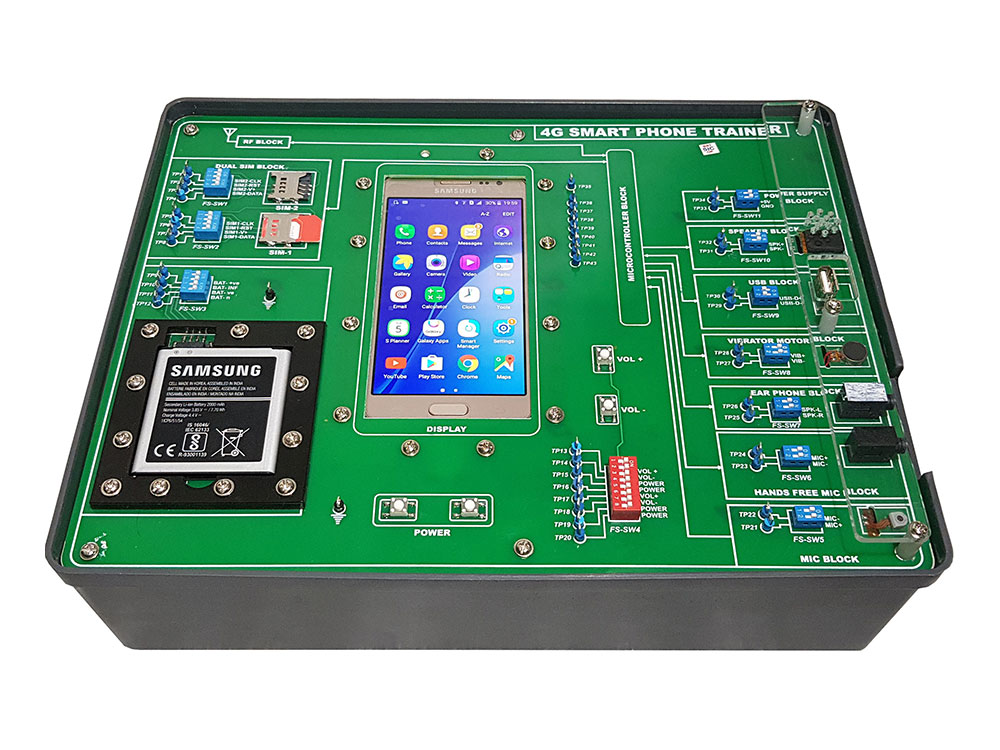

GSM MOBILE PHONE TRAINER

• Network: GSM / HSPA / LTE
• 2G bands: GSM 850 / 900 / 1800 / 1900 -SIM 1 & SIM 2
• 3G bands: HSDPA 850 / 900 / 1900 /2100
• 4G bands: LTE band 1(2100), 3(1800)
• 5(850), 8(900), 20(800), 40(2300)
• CPU Exynos 3475 1.3GHz Cortex-A7 quad-core
• Mali-T720, Operating system: Android, RAM: 1 GB
• Internal Storage: 8 GB
• External Storage: Up to 256 GB

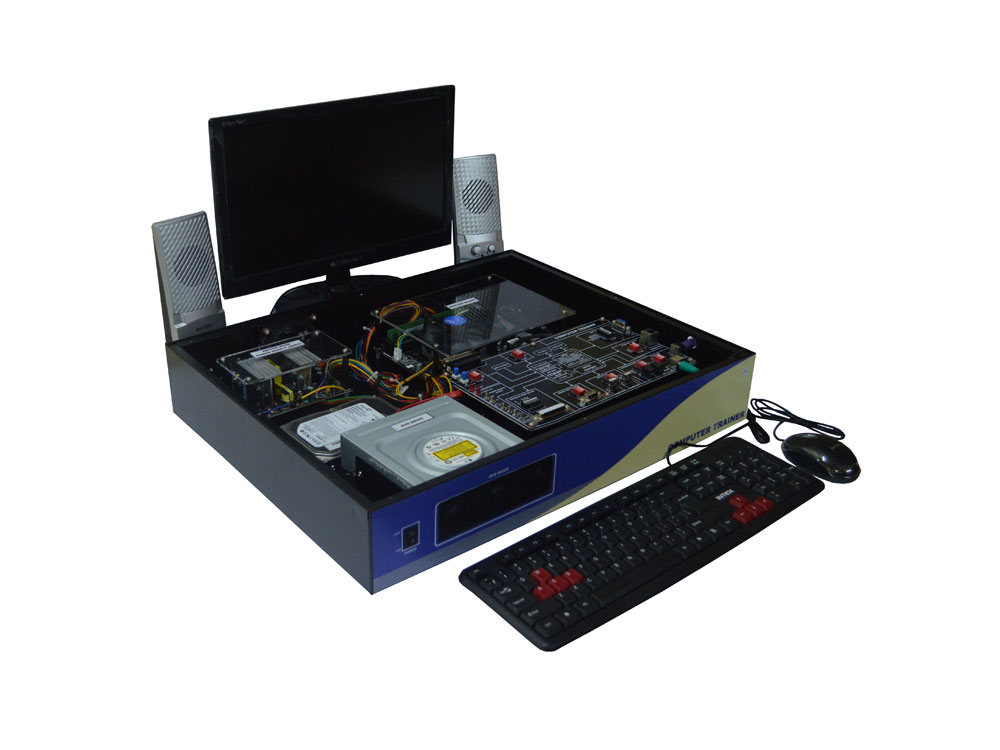

COMPUTER TRAINER

• CPU with fan: Dual Core Processor above 3.0 Ghz
• Mother Board with Intel Chipset having Memory (RAM) of 2 GB DDR 3 RAM.
• with Display Adaptor card
• Hard Disk SATA 1TB,SATA CD Drive
• Monitor 15" TFT Colour VGA, Multimedia key board, Scroll Mouse Optical
• On board 450 Watts SMPS having power +5V, +12V,-12V, +3.3V
• Video Camera. Mike with Stereo Speakers
• Post Code PCI Card for Post code display
• Fault creating facilities for CD Drive , Sound Ports, Com Port, LPT Port, USB Ports, VGA Port, PS2 Port with test points
• Enclosed in Metal enclosure with see through Components.

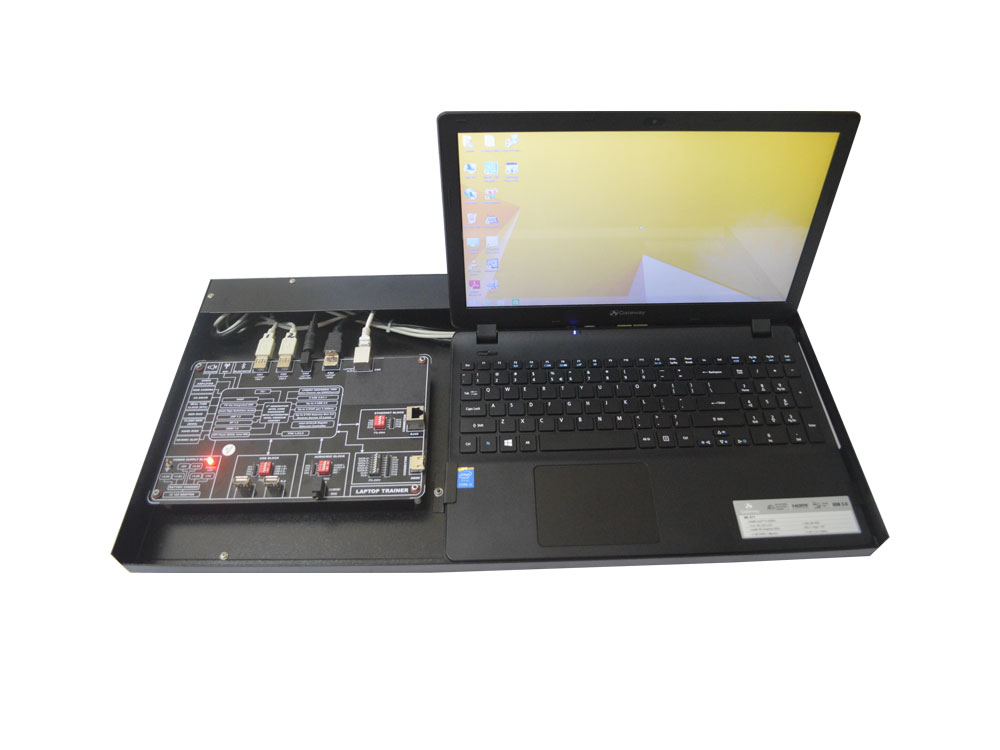

LAPTOP TRAINER

• 6th generation Intel Core i7-6500U C.P.U
• Processor Speed 2.5 GHz having Memory (RAM) 8GB DDR3L RAM, Display memory 2GB
• Hard disk 1TB, Screen size 15.6" (1920x1080)
• Backlit Key board, mouse with pad
• DVD Rom/Writer, Sound Stereo speakers
• Ethernet 10/100 base, USB Port USB 2.0 & USB 3.0
• Wireless 802.11bgn, HDMI Port, Webcam.

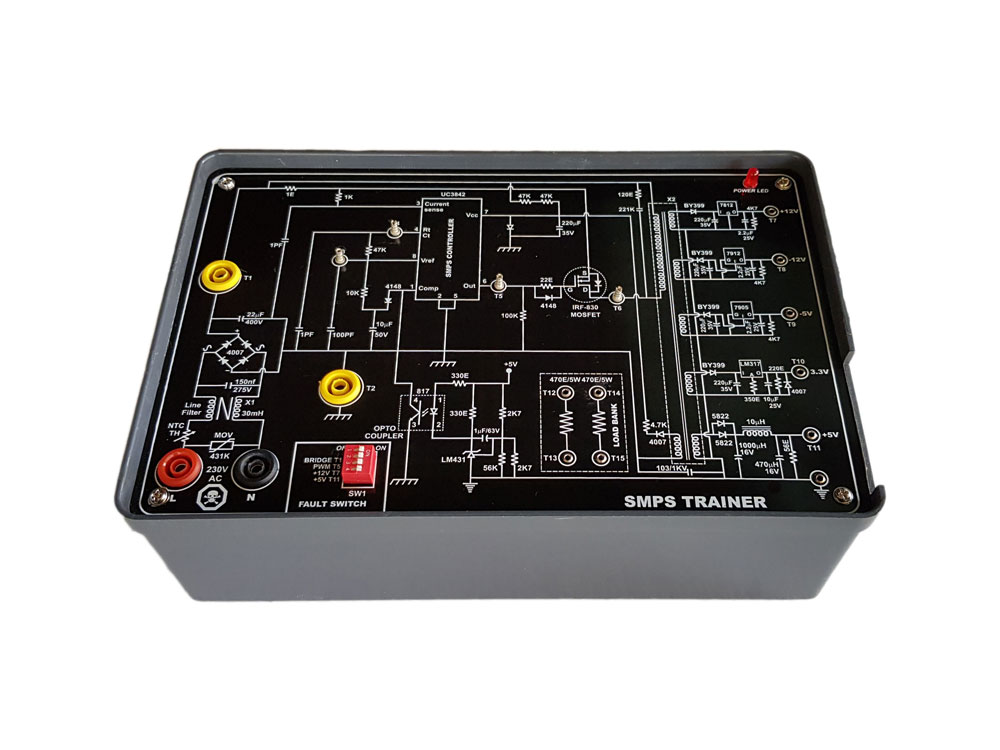

SMPS TRAINER

• Input : 80 to 230 V AC ±10%, 50 Hz
• Outputs : +12 V DC regulated, -12 V DC regulated, +5 V DC regulated, +3.3 V DC regulated
• Switching Transformer Input : 320 V DC switching at 132 KHz
• Load provided for testing the DC outputs
• Variac Is also Provided as optional for Input Voltage

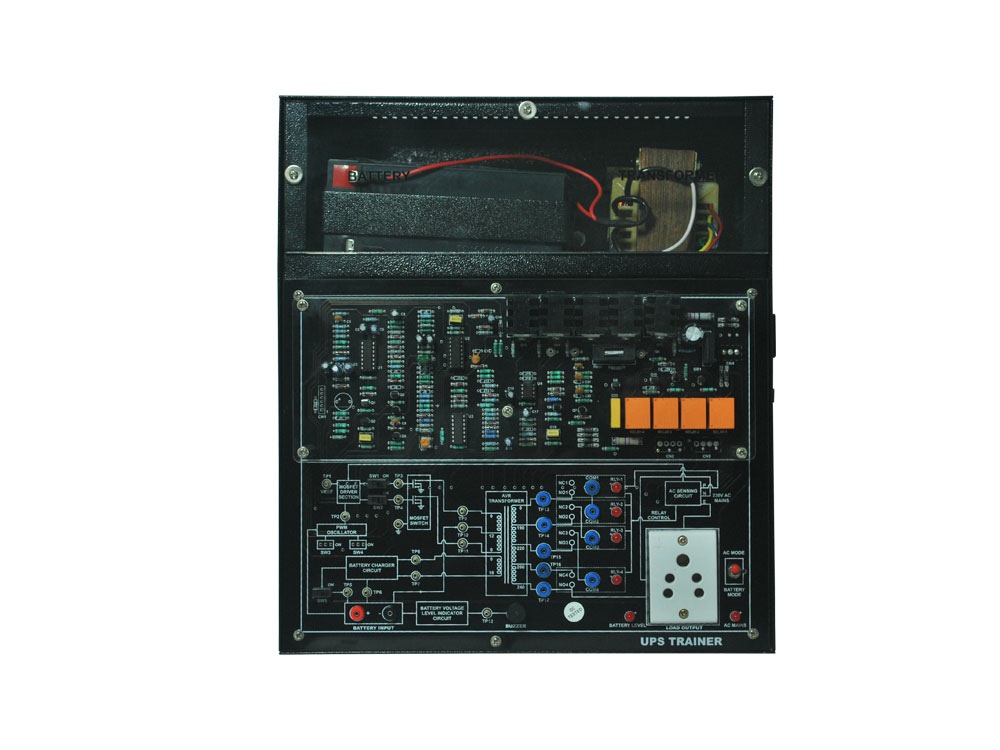

UPS TRAINER

• AC Input 190 to 260 V10%, 50 Hz
• Load Output 230 V/ 2.5A
• Transformer Used Input 12 - 0 - 12 V, Outputs : 0, 190, 220, 240, 260 V, Battery charging: 0-18 V
• IC SG3524 PWM IC used for PWM Switching
• 4nos of IRF3205MOSFET for Switching
• 12V DC Battery.

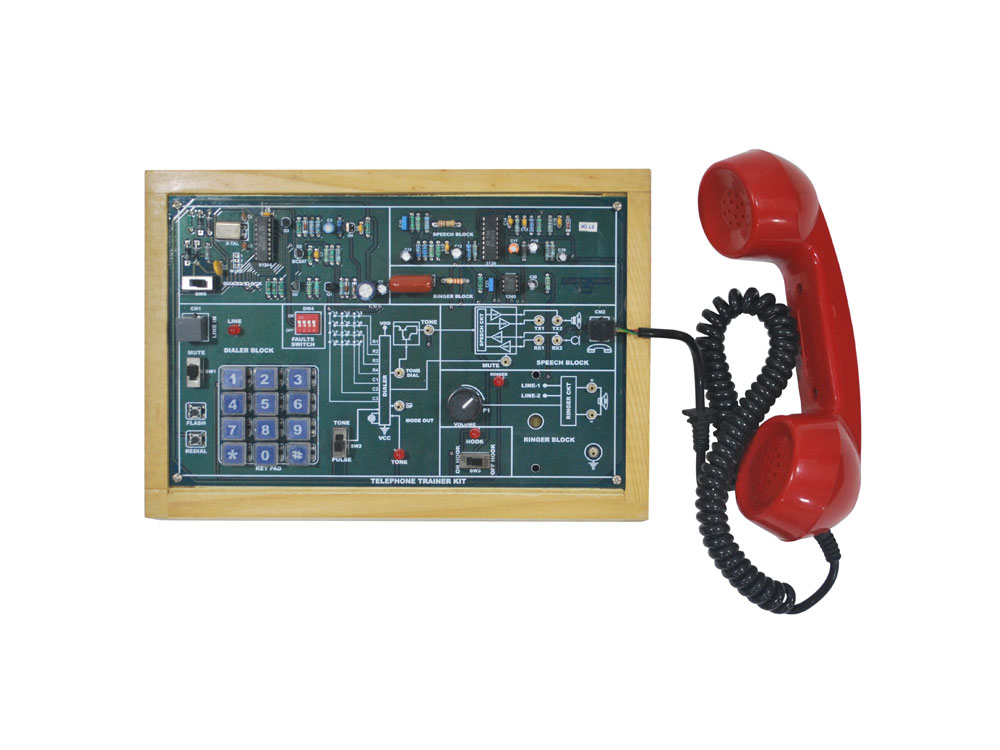

TELEPHONE TRAINER

• LED indication provided for LINE IN, HOOK, TONE and RINGER.
• Tone and Pulse Dialers are provided
• Tone Frequency is of 430Hz.
• One DOT line connection Port & Handset connection Port
• 4 x 3 Matrix Key board & Keypad contains 0 - 9, # & * Mute, Redial, Flash and On/Off Hook switches.
• Ringer Volume control Provided using Potentiometer

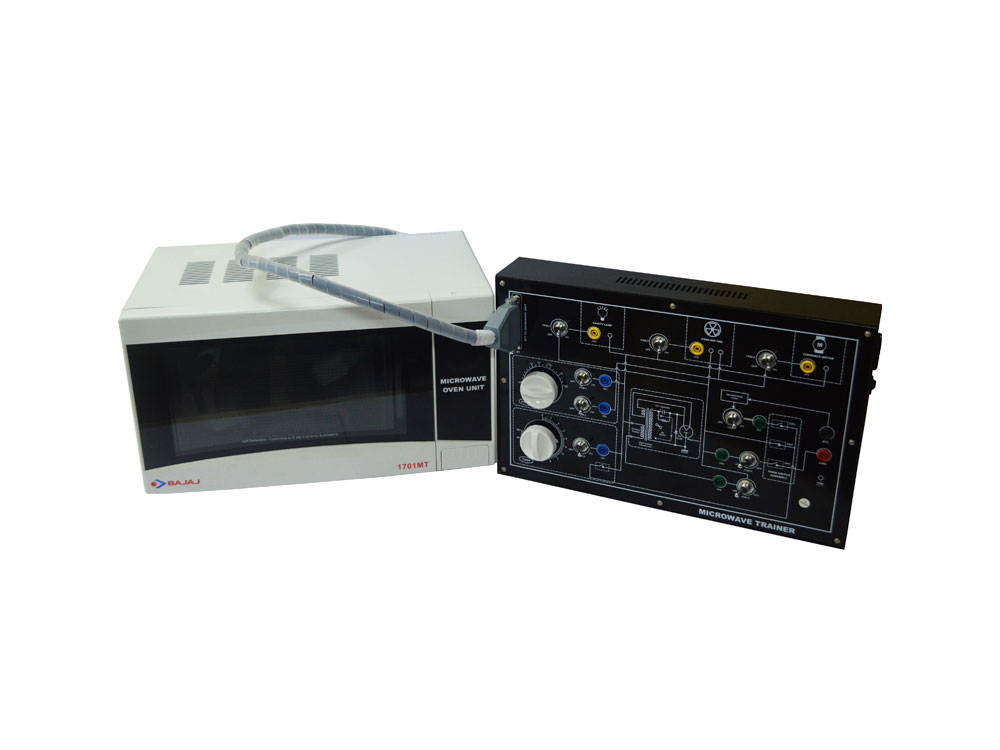

MICROWAVE OVEN TRAINER

• Convection TYPE MICROWAVE OVEN
• Mechanical Controls with Multi Power Level, 30 Minutes Timer
• 17 Liter Capacity Oven chamber
• Auto Time Defrost, COOKING COMPLETE ALARM
• TIMER/CLOCK, MICROWAVE OVEN OUTPUT IN 700 watts

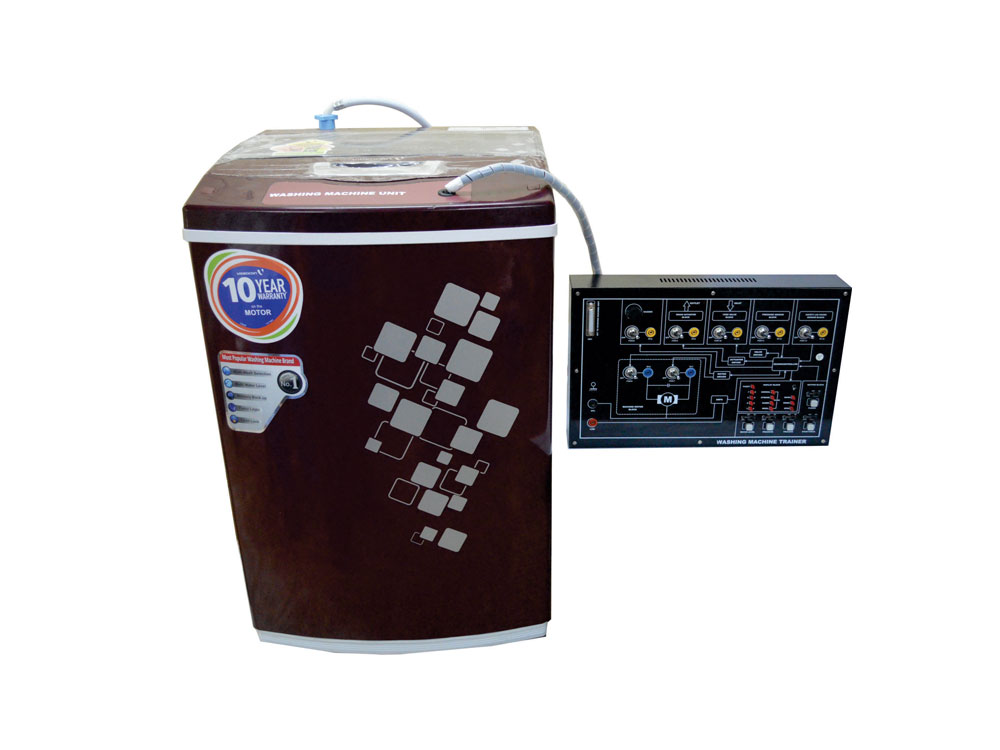

WASHING MACHINE TRAINER

• The Different circuit boards of Washing Machine are exposed on a PCB
• Troubleshooting and fault finding procedure explained in details
• Artificial fault creation facilities are provided by the switches
• About more than 10 faults can be demonstrated at a glance
• 10 Fault Switches and 16 Test Points provided on-board.
• Led indicators provided on the PCB for Fuzzy, Cloth Selection, Wash, Rinse and Spin
• Block Diagram is provided on glass epoxy PCB for understanding the logic.

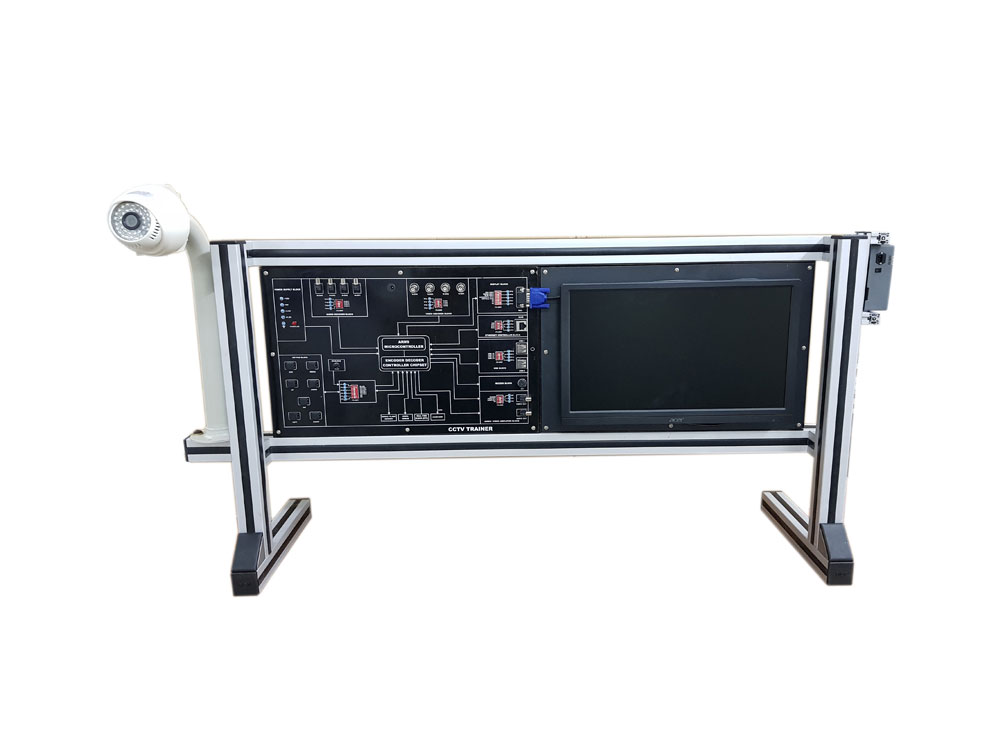

CCTV TRAINER

• Audio Decoder Block : 4 no’s of Audio Channel output
• Video Decoder Block : 4 no’s of Video Channel output
• Display Block : VGA Connector is provided
• Ethernet Controller Block : RJ45 Connector is provided
• USB Block : USB Connector is provided
• Buzzer Block : Miniature buzzer is provided
• Audio/Video Amplifier Block : Audio and Video out is provided
• IR Block : IR LED is provided
• Keypad Block: Different Keys are provided for Control.

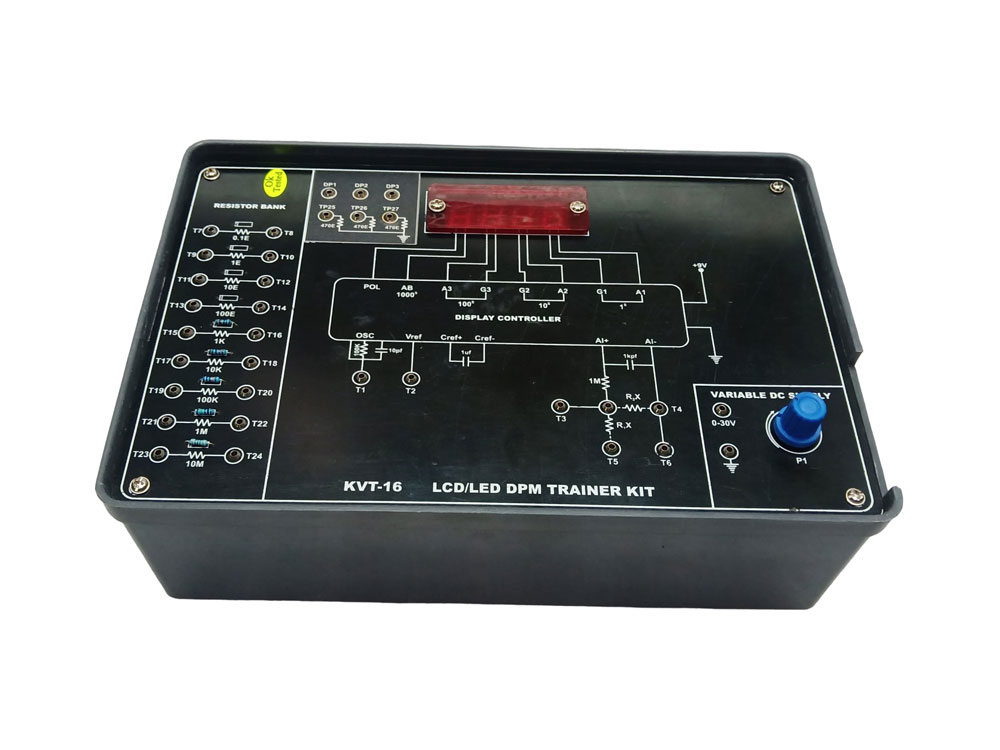

LCD Based DPM Trainer

• Specifications
• Voltage Range
• DC Voltage: 0 – 200 mV
• Current Range
• DC Current: 0 – 200 mA
• Resistance: 20 Ω – 2 MΩ
• LED Display
• Input Impedance: 10 MΩ
• Mains Supply: 230 V, 50 Hz
• Fuse: 200 mA / 2 A
• Interconnections: All made using 2 mm banana patch cord
• Accessories: Set of 2 mm patch cords for interconnections
• Enclosure: Attractive ABS Plastic body
• Design: Compact and lightweight
• Documentation: User’s Manual included
• List of Experiments
• Study of DC Voltage Measurement
• Study of DC Current Measurement

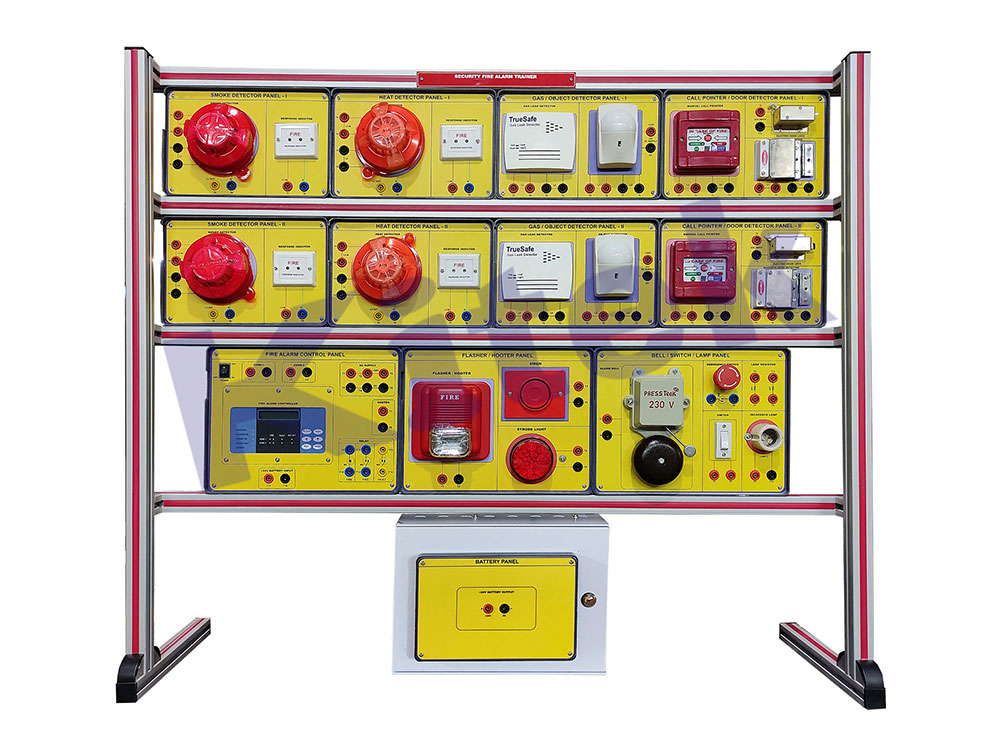

FIRE ALARM TRAINER

• Aesthetically designed Aluminum Profile Structure
• ISI/CE marked branded Components / Meters are used
• ABS plastic enclosed Panel Board with mimic diagram
• All input & output terminated in 4mm shrouded connector
• 4mm banana cable for experiments
• Material & Dimensions
• Material: Aluminum Profile
• Material Dimension: 30 × 30 mm
• Rack & Panel Details
• Panels on Rack: 13 Nos.
• Mimic diagram on Panel: Provided
• Termination on Panel: 4mm shrouded connector
• Input / Output: 4mm shrouded cables of various lengths
• Panels Included
• Smoke Detector Panel
• Heat Detector Panel
• Flasher & Hooter Panel
• MCP & Door Detector Panel
• Gas & Object Detector
• Control Panel
• Bell / Switch / Lamp Panel
• Battery Panel
• Experiment List
• To study the working of smoke detector/sensor
• To study the working of heat detector/sensor
• To study the working of Gas (LPG) leak detector/sensor
• To study the working of Object detector/sensor
• To study the working of Manual Call Point (MCP)
• To study the working of Magnetic Door detector/sensor
• To study the working of Siren with flasher
• To study the working of Microcontroller-based panel (2 zone)

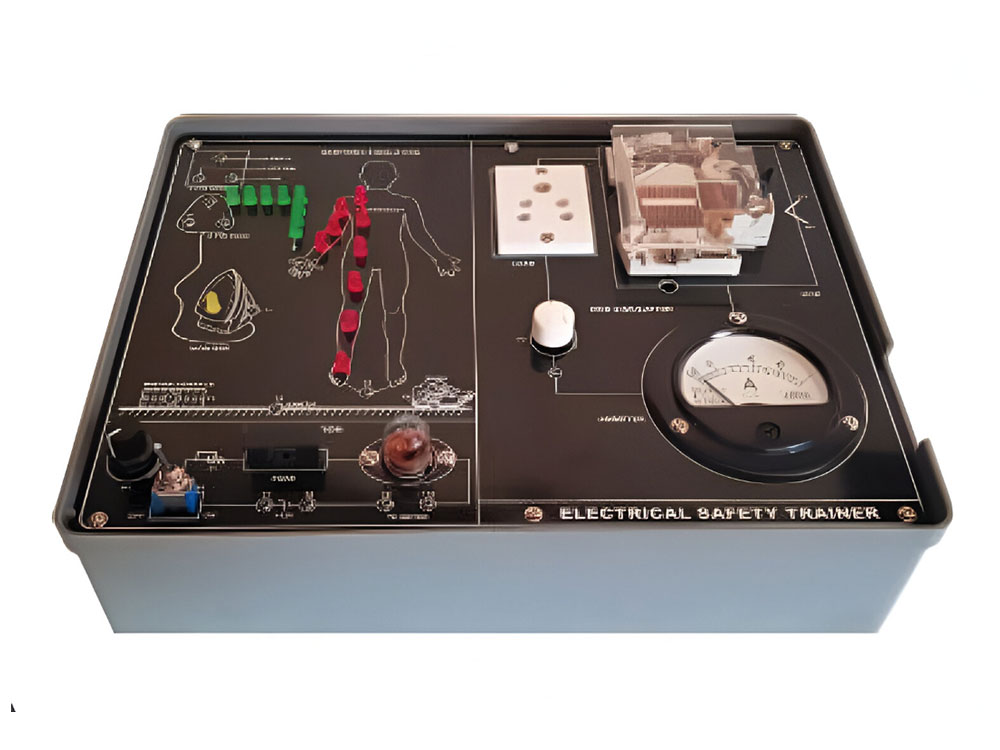

ELECTRICAL SAFETY TRAINER

• 2 pole / 1A MCB., On board AC Meter of 0-5A.
• Fuse of 100mA and 400 mA provided.
• On board one potentiometer of
• 1K/1Watt is provided.
• On board One FAN Dimmer is provided.
• List of Experiments:-
• Study the Importance of Earthing
• Study the Importance of mechanism of fuse
• Study of Importance of mechanism of MCB
