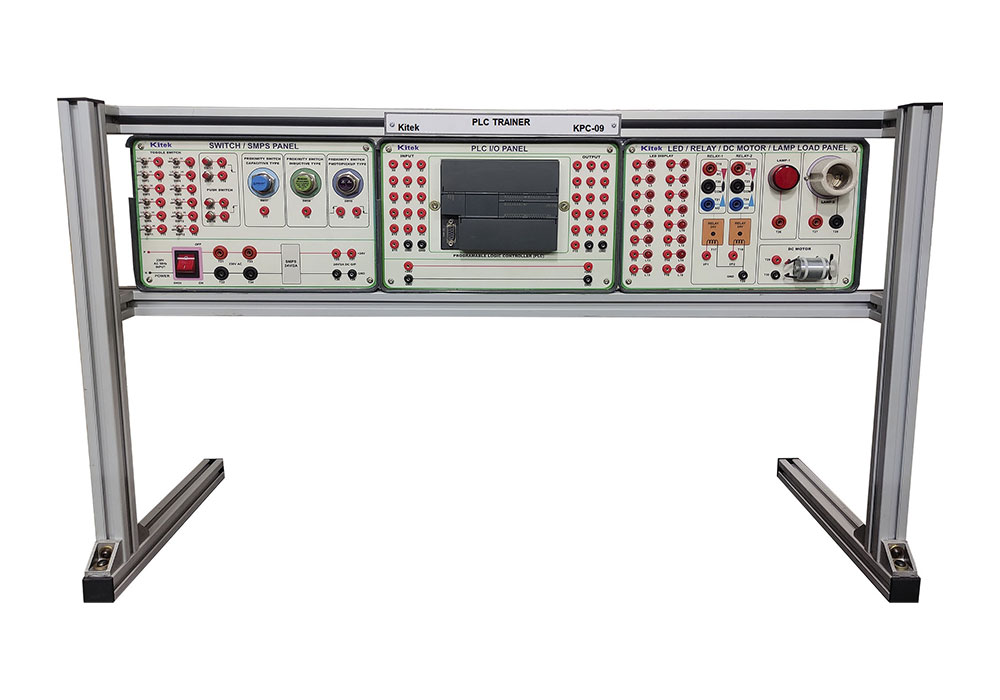

PLC TRAINER

• PLC Trainer is designed for understanding the PLC programming logic principles for the Process automation
• Trainer having Control Panel Provided in 30x30mm Aluminum Profile Rack with 1 Railing Sturdy Table Top Flat Panel
• Electrical Control Panels are provided in Slidable ABS Plastic Panel Mounted on the Aluminum Rack with Mimic Diagram.
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments.
• PLC Selection option from brands like Delta, Siemens, Allen Bradley, Schneider with 8/14/16/20/24 Digital Inputs, 6/10/12/16/22 Digital Output, 4 Analog Inputs & 2 Analog Outputs
• Supports Many Static as well as Dynamic real world interfacing applications.
• Switch/SMPS Panel having 12 Toggle Switches, 4 Push Button’s, Proximity Sensors (Inductive, Capacitive, Photo) etc.
• LED/RELAY/DC MOTOR/LAMP Load Panel having 16 Output LED’s, Relays, DC Motor, Pilot Lamps etc.

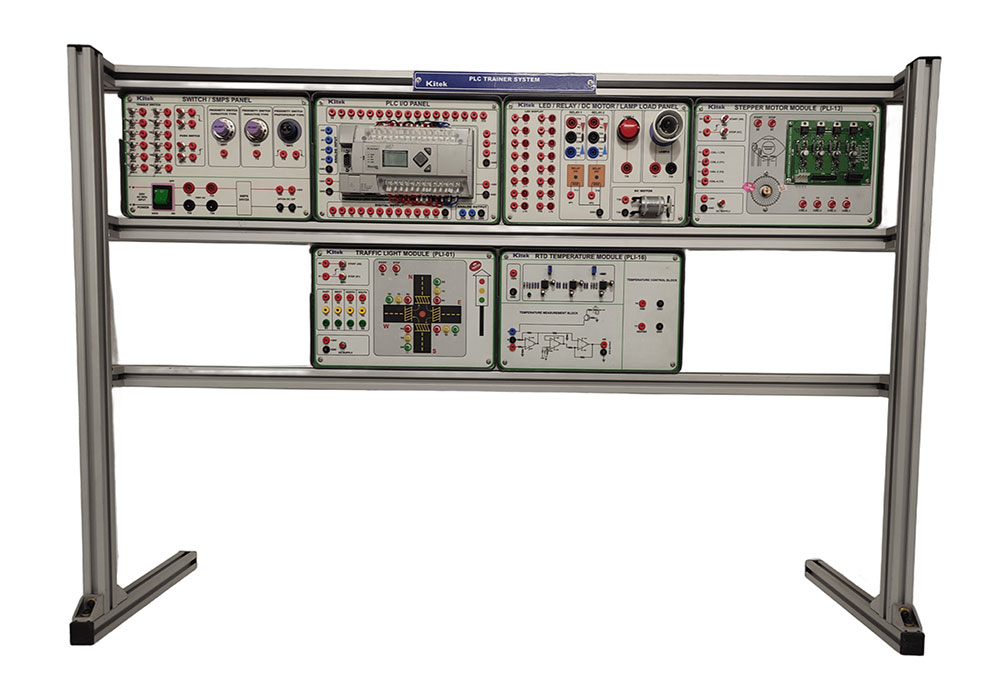

PLC TRAINER

• PLC Trainer is designed for understanding the PLC programming logic principles for the Process automation
• Trainer having Control Panel Provided in 30x30mm Aluminum Profile Rack with 1 Railing Sturdy Table Top Flat Panel
• Electrical Control Panels are provided in Slidable ABS Plastic Panel Mounted on the Aluminum Rack with Mimic Diagram.
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments.
• PLC Selection option from brands like Delta, Siemens, Allen Bradley, Schneider with 8/14/16/20/24 Digital Inputs, 6/10/12/16/22 Digital Output, 4 Analog Inputs & 2 Analog Outputs
• Supports Many Static as well as Dynamic real world interfacing applications.
• Digital Input Simulation Panel having 8 Toggle Switches, 8 Push Button’s, Proximity Sensors (Inductive, Capacitive, Photo), 2 Analog 0-10V DC etc.
• Digital Output Simulation Panel having 8 Output LED’s, Relays, DC Motor, Limit Switches, Buzzer etc.

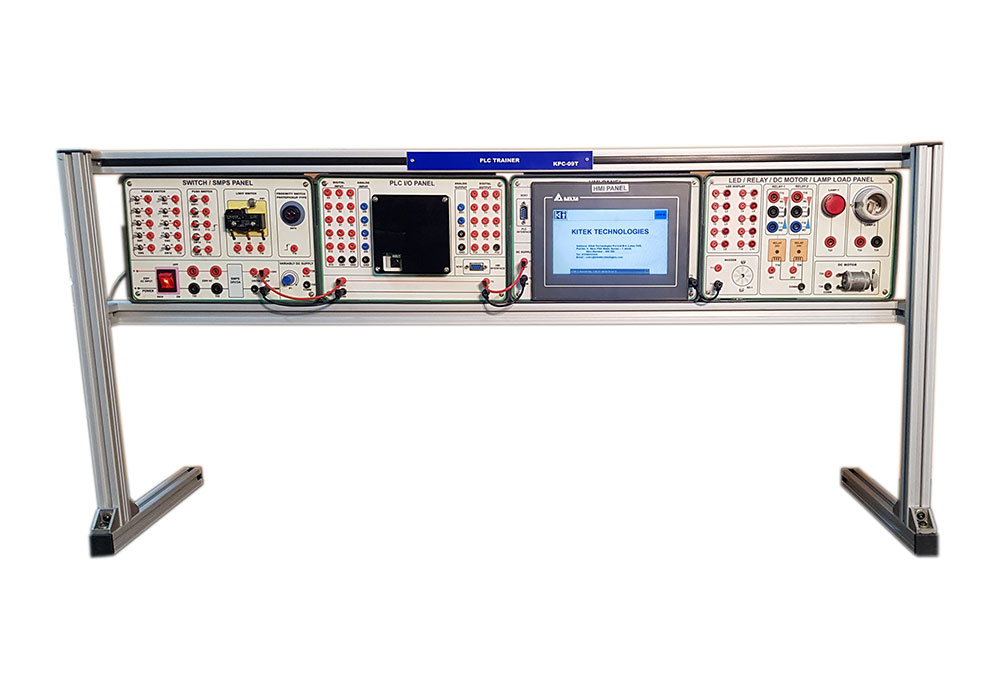

ADVANCED PLC TRAINER

• Advanced PLC Trainer is designed for understanding the PLC programming logic principles for the Process automation with HMI Interface
• Trainer having Control Panel Provided in 30x30mm Aluminum Profile Rack with 1 Railing Sturdy Table Top Flat Panel
• Electrical Control Panels are provided in Slidable ABS Plastic Panel Mounted on the Aluminum Rack with Mimic Diagram.
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments.
• PLC Selection option from brands like Delta, Siemens, Allen Bradley, Schneider with 8/14/16/20/24 Digital Inputs, 6/10/12/16/22 Digital Output, 4 Analog Inputs & 2 Analog Outputs
• Supports Many Static as well as Dynamic real world interfacing applications.
• Switch/SMPS Panel having 10 Toggle Switches, 5 Push Button’s, Photo Proximity Sensors 2 Analog 0-10V DC etc.
• 7Inch Touchscreen HMI Display
• Led/Relay/DC Motor/Lamp Load Panel having 10 Output LED’s, Relays, DC Motor, Limit Switch, Buzzer etc.

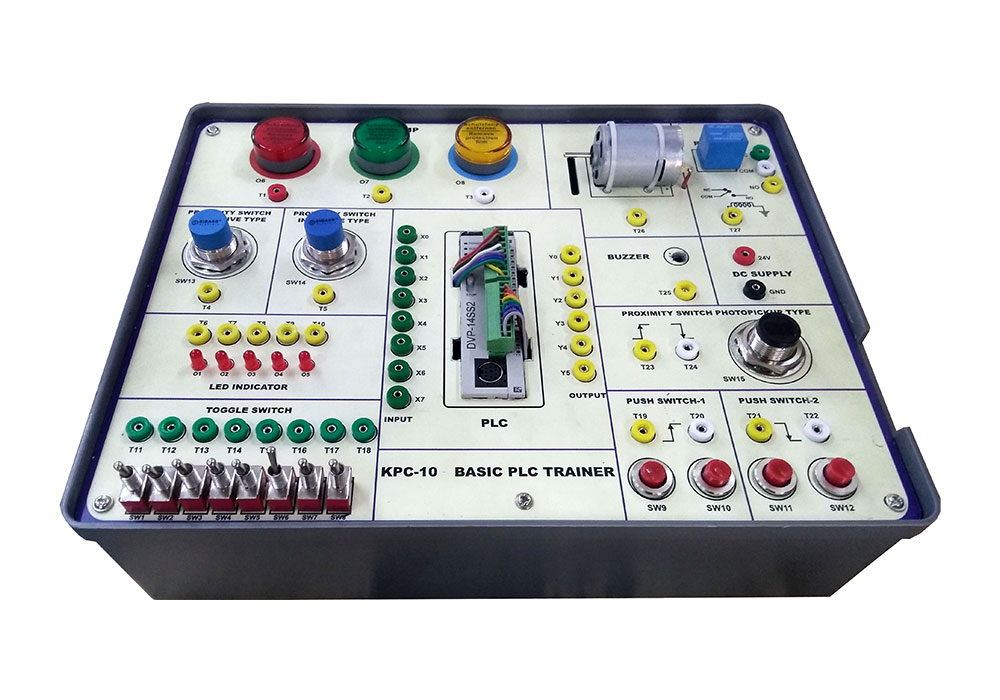

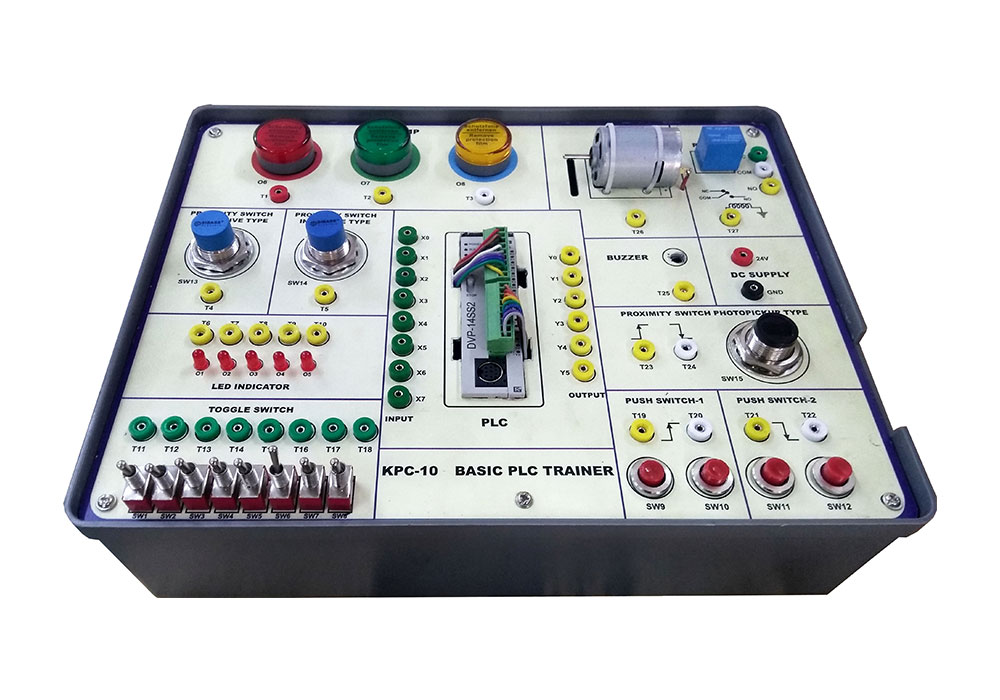

BASIC PLC TRAINER (DELTA PLC)

• Basic PLC Trainer is designed for understanding the PLC programming logic principles for the Process automation.
• Provided in Attractive ABS Plastic Enclosure.
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments.
• Delta PLC with 8 Digital Input, 6 Digital Output, 8 Toggle Switches, 2 Push Button’s, Proximity Sensors (Inductive, Capacitive, Photo), Pilot Lamps, Relays, DC Motor, Buzzer etc.

BASIC PLC TRAINER (SIEMEN’S PLC)

• Basic PLC Trainer is designed for understanding the PLC programming logic principles for the Process automation.
• Provided in Attractive ABS Plastic Enclosure.
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments.
• Siemen-Logo PLC with 8 Digital Input, 6 Digital Output, 8 Toggle Switches, 2 Push Button’s, Proximity Sensors (Inductive, Capacitive, Photo), Pilot Lamps, Relays, DC Motor, Buzzer etc.

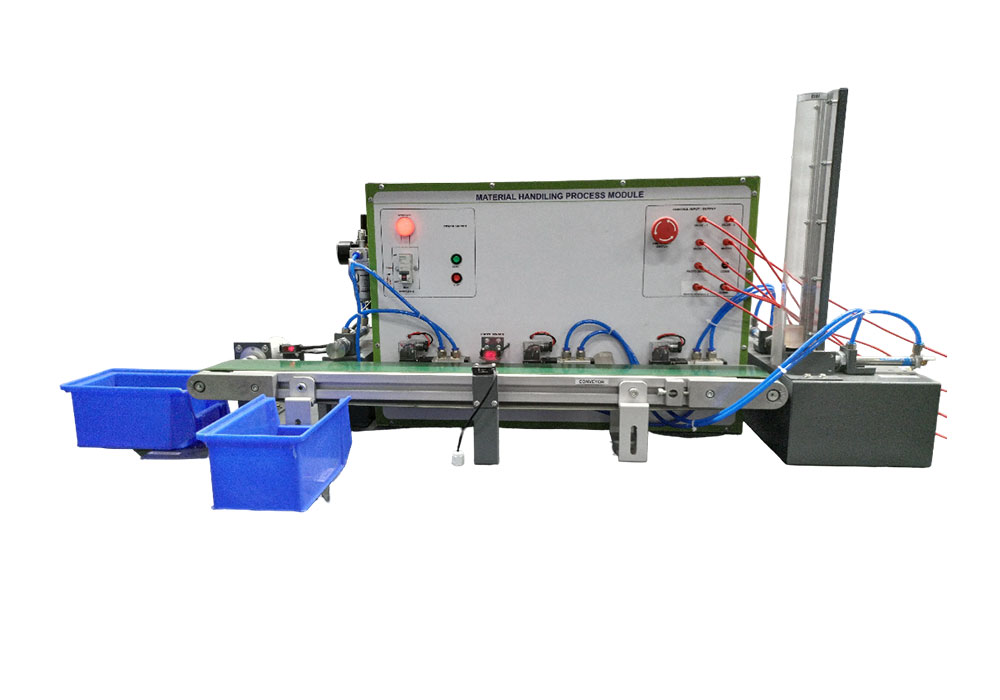

MATERIAL SORTING TRAINER

• Material Sorting Trainer is the application of the PLC Programming Logic for the Material Sorting Process.
• Trainer having Control Panel Provided in Powder Coated MS Enclosure with Castor wheels for easy movement
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments
• PLC Selection option from brands like Delta, Siemens, Allen Bradley, Schneider with 8/14/16/20/24 Digital Inputs, 6/10/12/16/22 Digital Output, 4 Analog Inputs & 2 Analog Outputs.
• Material Sorting Process Module consist of Solenoid Valve, Motor with Conveyor Belt, Industrial Photo Sensor, Air Compressor, Two Colour Material etc.

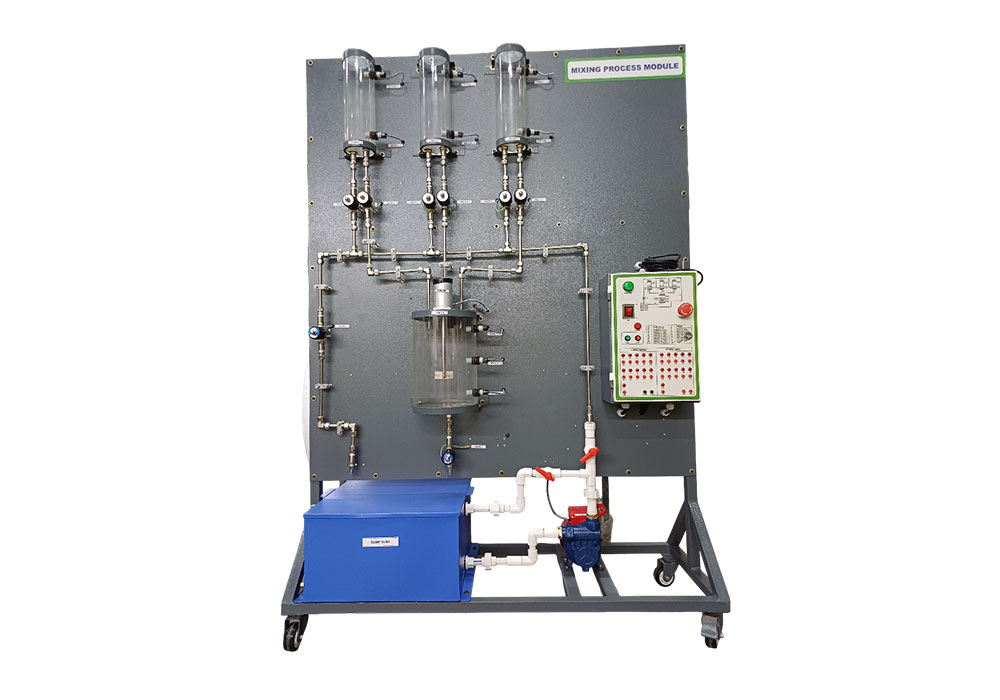

Mixing Process Module

• Mixing Process Module Trainer is the application of the PLC Programming logic for the Material Mixing Process automation
• Trainer having Control Panel Provided in Powder Coated MS Enclosure with Castor wheels for easy movement
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments
• PLC Selection option from brands like Delta, Siemens, Allen Bradley, Schneider with 8/14/16/20/24 Digital Inputs, 6/10/12/16/22 Digital Output, 4 Analog Inputs & 2 Analog Outputs.
• Mixing Process Module consist of Liquid Level Sensor (9No’s) & Solenoid Valve (8No’s), 3 No's of Transparent Measuring Tank, 1 No of Transparent Mixing Tank & 1 No of Storage Tank with 0.5Hp Water Pump.

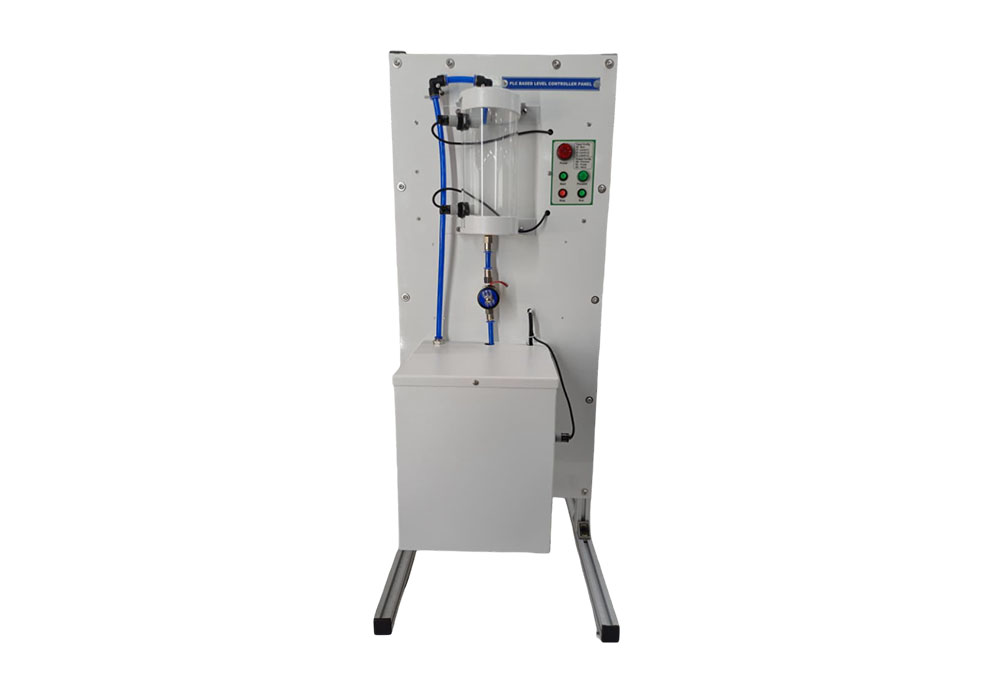

WATER LEVEL PROCESS MODULE TRAINER

• Water Level Process Module Trainer is the application of the PLC Programming Logic for the automated Water Level Control Process.
• Trainer having Control Panel Provided in Powder Coated MS Enclosure with Castor wheels for easy movement.
• All Input & Output are terminated in 2mm Banana Connector, Provided with 2mm Banana Cable for Experiments
• Delta PLC with 8 Digital Input, 6 Digital Output to control Water Level Process consisting of Liquid Level Sensor (3No’s) & Solenoid Valve (1No), Transparent Measuring Tank & 1 No of Storage Tank with Submersible Fractional HP Water Pump etc.
