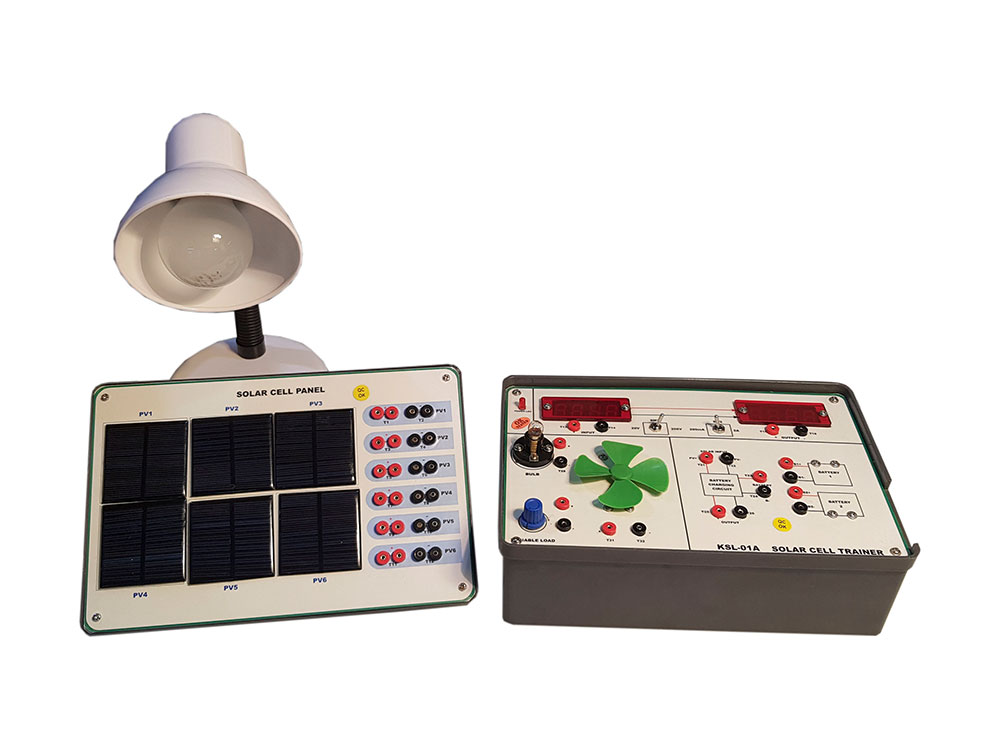

SOLAR CELL CHARACTERISTICS

• Solar Cell Characteristics trainer housed in ABS Plastic Enclosure. Designed to get fully acquainted with the basic concepts of Solar Cell such as V-I Characteristics, Series/Parallel Combination, Provide Supply to load etc.
• Consist of table Lamp for Sun Simulation, 6 No's of 3V/150mA Solar Cell, Solar Battery, Voltmeter, Ammeter, Load etc.

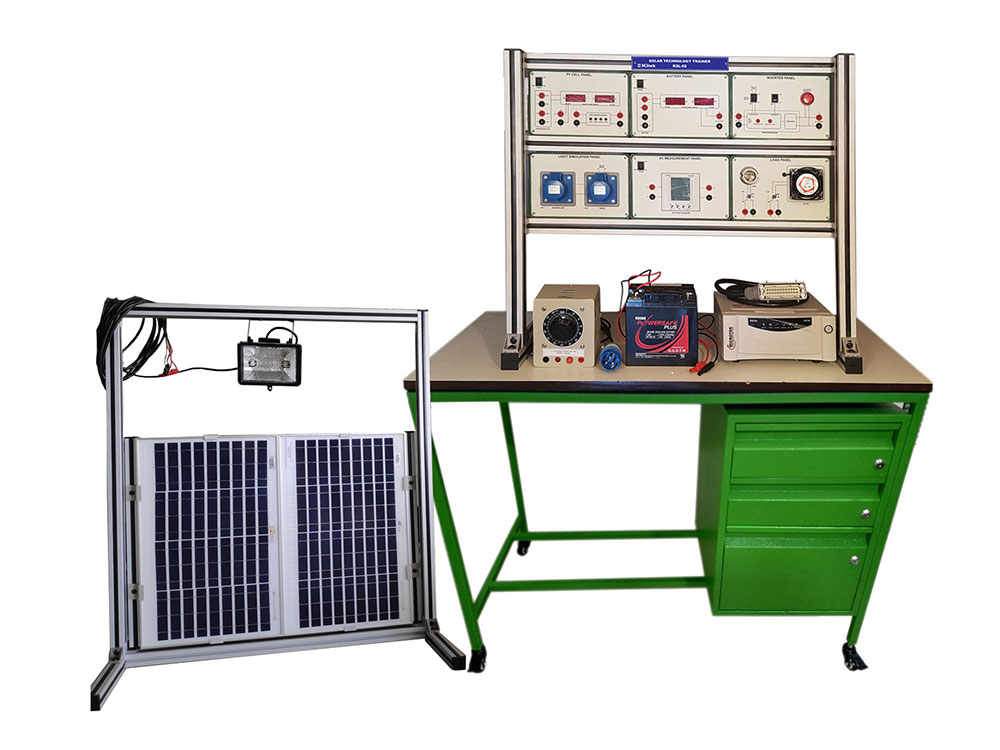

SOLAR OFF GRID TRAINER SYSTEM

• Solar OFF Grid Trainer System is a user-friendly renewable energy training system for the Electrical laboratories housed in MS Enclosure and mounted on Aluminum Profile. Designed to get fully acquainted with the basic concepts and functioning of a Solar system such as V-I Characteristics, Series/Parallel Combination, Battery Charging-Discharging, Off Grid Inverter, AC Loading etc.
• Control Panel provided in MS Enclosure with mimic diagram.
• Consist of for 500W halogen Lamp for Sun Simulation mounted on moving platform, 50W/100W Solar Panel, Battery, OFF Grid Inverter, Voltmeter, Ammeter, AC Multifunction Meter, Rheostat, Lamp Load Lux Power Meter etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

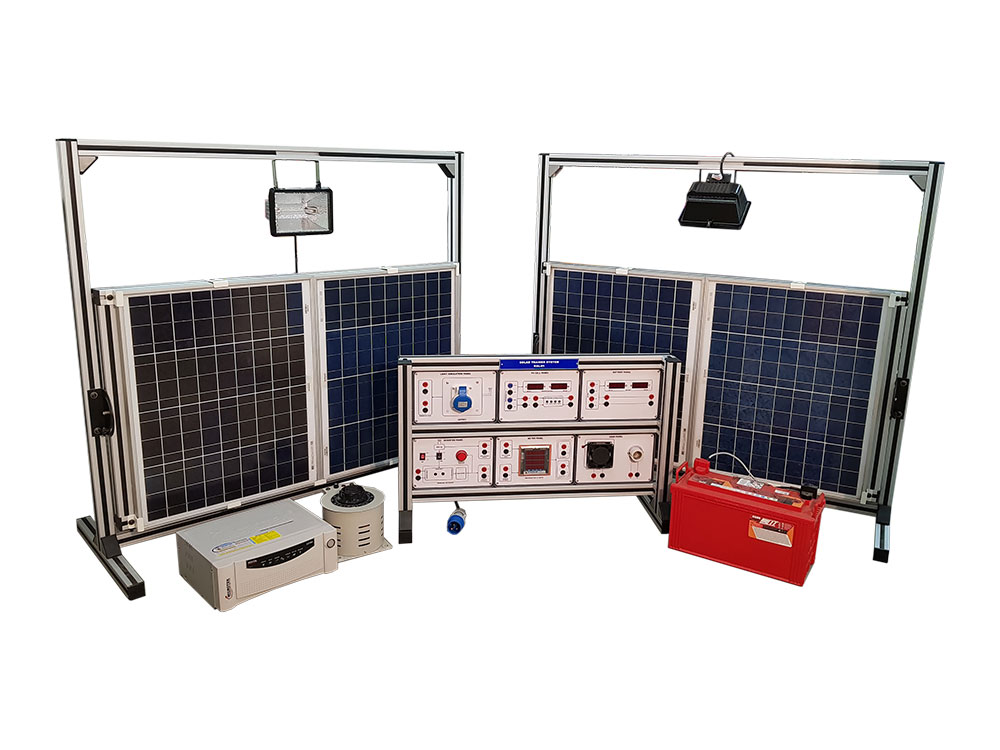

SOLAR OFF GRID TRAINER SYSTEM

• Solar OFF Grid Trainer System is a user-friendly renewable energy training system for the Electrical laboratories mounted on Aluminum profile racks consisting of sturdy table top flat panels. Designed to get fully acquainted with the basic concepts and functioning of a Solar system such as V-I Characteristics, Series/Parallel Combination, Battery Charging-Discharging, Off Grid Inverter, AC Loading etc.
• Control panel is a 30X30mm Aluminum profile rack with sturdy table top flat panels & mimic diagram.
• Consist of for 2000W halogen Lamp for Sun Simulation mounted on moving platform, 500W/1000W Solar Panel fitted on 40X40mm Aluminum profile rack with tiltable, lockable frame, 100Ah Battery, Off Grid Inverter, DC Multifunction Meter, AC Multifunction Meter, AC Energy Meter, DC Circuit Breaker, AC Circuit Breaker, Rheostat, Lamp Load, Lux Power Meter etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

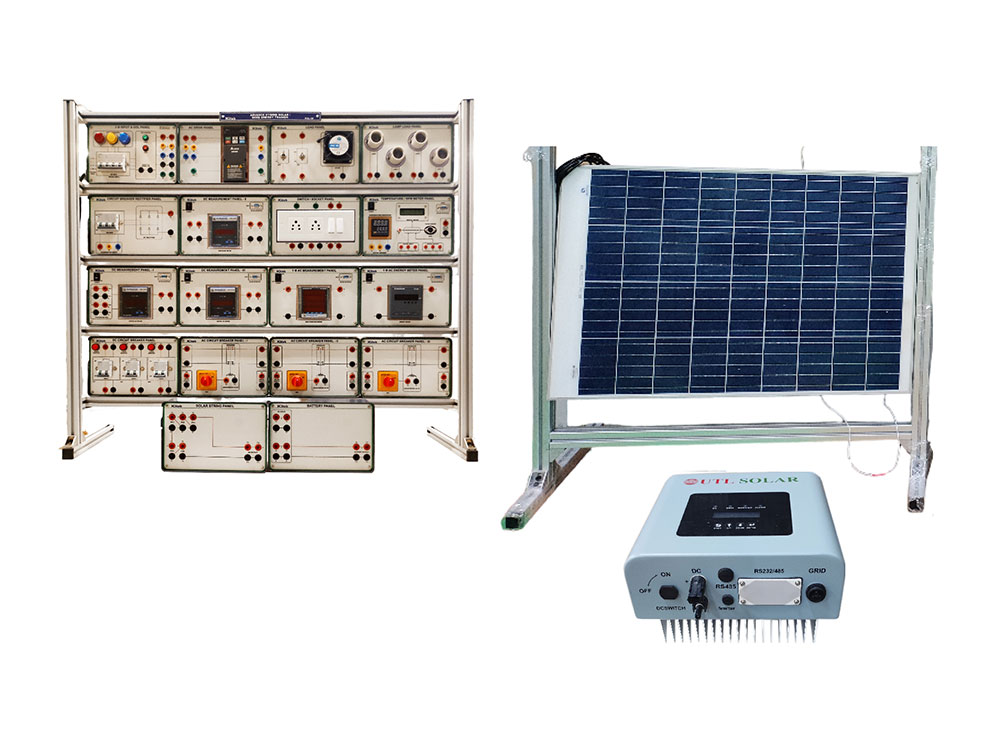

SOLAR ON GRID TRAINER SYSTEM

• Solar ON Grid Trainer System is a user-friendly renewable energy training system for the Electrical laboratories mounted on Aluminum profile racks consisting of sturdy table top flat panels. Designed to get fully acquainted with the basic concepts and functioning of a Solar system such as V-I Characteristics, Series / Parallel Combination, ON-Grid Inverter, Net Metering Concept, AC Loading etc.
• Control panel is a 30X30mm Aluminum profile rack with sturdy table top flat panels & mimic diagram.
• Consist of for 2000W halogen Lamp for Sun Simulation mounted on moving platform, 1000W Solar Panel fitted on 40X40mm Aluminum profile rack with tiltable, lockable frame, Solar String Panel, ON Grid Inverter, DC Multifunction Meter, AC Multifunction Meter, AC Energy Meter, DC Circuit Breaker, AC Circuit Breaker, Rheostat, Lamp Load, Lux Power Meter etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

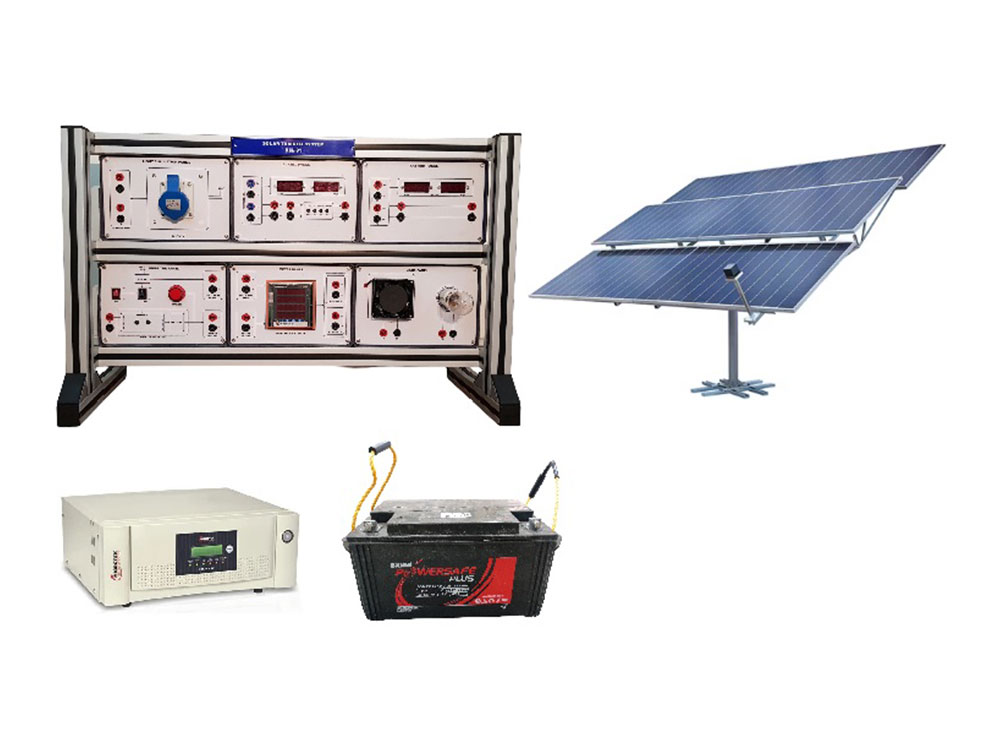

SOLAR ON-OFF GRID TRAINER SYSTEM

• Solar ON-OFF Grid Trainer System is a user-friendly renewable energy training system for the Electrical laboratories mounted on Aluminum profile racks consisting of sturdy table top flat panels. Designed to get fully acquainted with the basic concepts and functioning of a Solar system such as V-I Characteristics, Series / Parallel Combination, Battery Charging-Discharging, Off Grid Inverter, ON-Grid Inverter, Net Metering Concept, AC Loading etc.
• Control panel is a 30X30mm Aluminum profile rack with sturdy table top flat panels & mimic diagram.
• Consist of for 2000W halogen Lamp for Sun Simulation mounted on moving platform, 500W/1000W Solar Panel fitted on 40X40mm Aluminum profile rack with tiltable, lockable frame, Solar String Panel, 100Ah Battery, Off Grid Inverter, DC Multifunction Meter, AC Multifunction Meter, AC Energy Meter, DC Circuit Breaker, AC Circuit Breaker, Rheostat, Lamp Load, Lux Power Meter etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

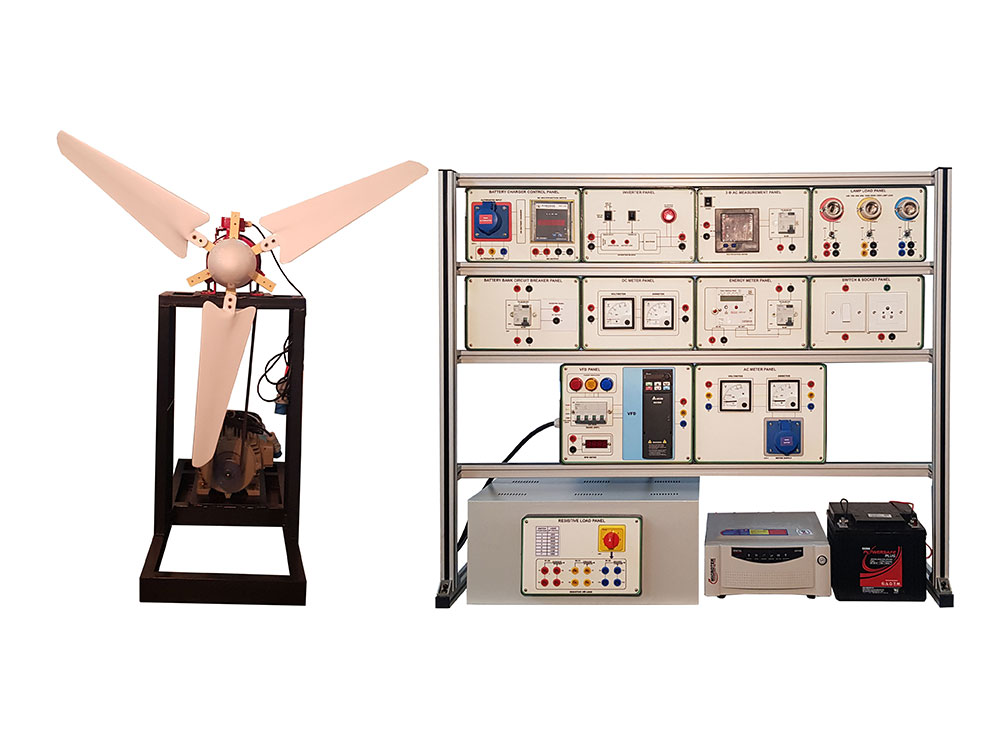

WIND ENERGY TRAINER SYSTEM

• Wind Energy Trainer System is a user-friendly renewable energy training system for the Electrical laboratories mounted on Aluminum profile racks consisting of sturdy table top flat panels. Designed to get fully acquainted with the basic concepts and functioning of a Wind Turbine such as Cut-In Speed of Wind Generator, Wind Energy Generation, Battery Charging-Discharging, Off Grid Inverter, AC Loading etc.
• Control panel is a 30X30mm Aluminum profile rack with sturdy table top flat panels & mimic diagram.
• Consist of for 100W Wind 3 Phase Permanent Magnet Synchronous Generator with 3/6 Blades Mounted in MS Sturdy Structure with 3/6 Blades Mounted in MS Sturdy Structure.
• 2 HP 3 Phase AC Motor for Wind Simulator coupled with 100W Permanent Magnet Synchronous Wind Generator, 100Ah Battery, Off Grid Inverter, DC Multifunction Meter, AC Multifunction Meter, AC Energy Meter, DC Circuit Breaker, AC Circuit Breaker, Lamp Load, Anemometer etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

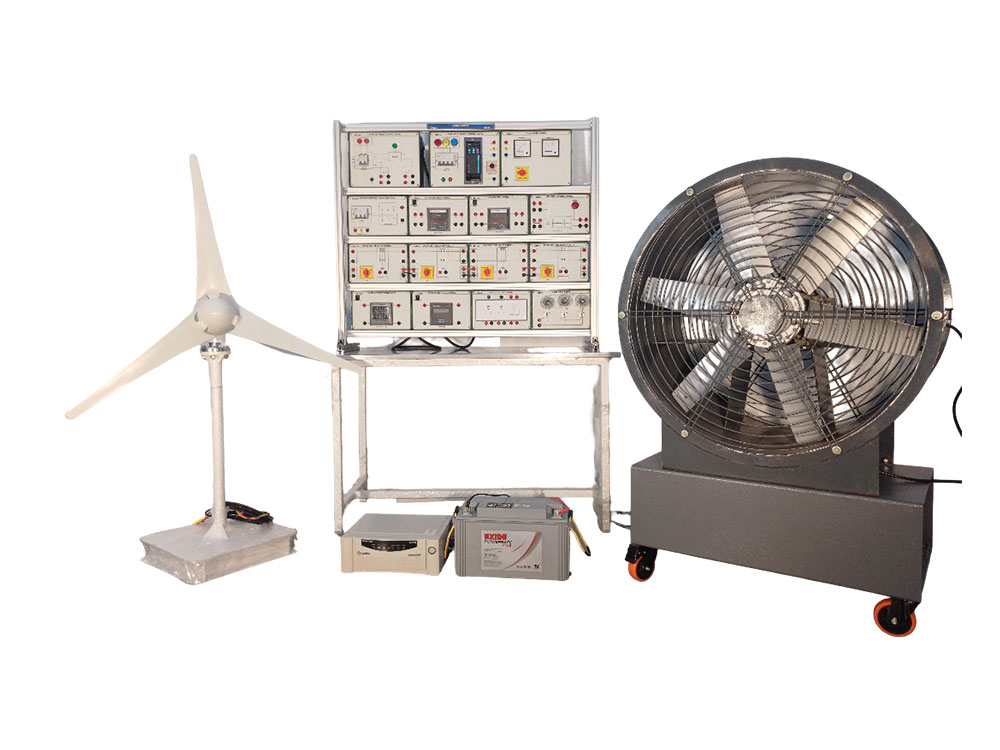

WIND ENERGY TRAINER SYSTEM

• Wind Energy Trainer System is a user-friendly renewable energy training system for the Electrical laboratories mounted on Aluminum profile racks consisting of sturdy table top flat panels. Designed to get fully acquainted with the basic concepts and functioning of a Wind Turbine such as Cut-In Speed of Wind Generator, Wind Energy Generation, Battery Charging-Discharging, Off Grid Inverter, AC Loading etc.
• Control panel is a 30X30mm Aluminum profile rack with sturdy table top flat panels & mimic diagram.
• Consist of for 100W Wind 3 Phase Permanent Magnet Synchronous Generator with 3/6 Blades Mounted in MS Sturdy Structure with 3/6 Blades Mounted in MS Sturdy Structure.
• 3HP 3 Phase AC Motor Fan Blower for Wind Simulator Mounted on MS Base with Wheels for movement.
• 100W Permanent Magnet Synchronous Wind Generator, 100Ah Battery, Off Grid Inverter, DC Multifunction Meter, AC Multifunction Meter, AC Energy Meter, DC Circuit Breaker, AC Circuit Breaker, Lamp Load, Anemometer etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

SOLAR OFF GRID TRACKING SYSTEM TRAINER

• Solar OFF Grid Tracking System Trainer is a user-friendly renewable energy training system for the Electrical laboratories housed in MS Enclosure and mounted on Aluminum Profile. Designed to get fully acquainted with the basic concepts and functioning of a Solar system such as V-I Characteristics, Solar Tracking, Battery Charging-Discharging, Off Grid Inverter, AC Loading etc.
• Control Panel provided in MS Enclosure with mimic diagram.
• Consist of for 1500W halogen Lamp for Sun Simulation, 20W/50W Solar Panel, Servo Geared 24V DC Servo Motor for angular movement for tracking the Sun, Photo LDR Sensors to track Sun, Battery, OFF Grid Inverter, Voltmeter, Ammeter, AC Multifunction Meter, Rheostat, Lamp Load Lux Power Meter etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

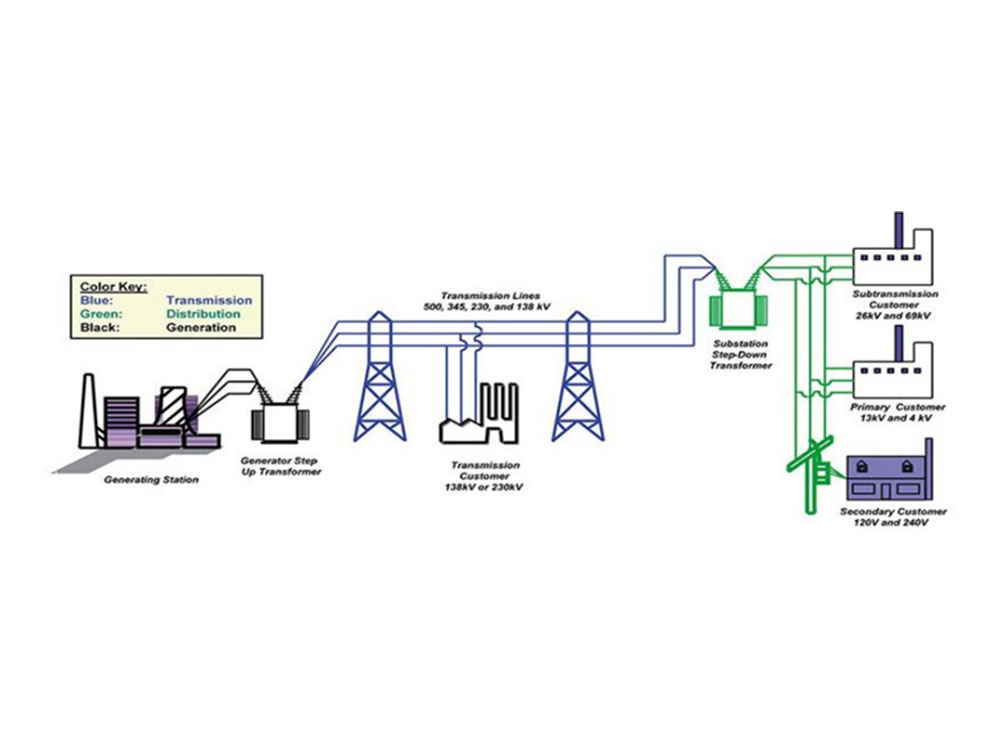

SMART GRID TRAINER

• Smart Grid makes it is possible to model an entire power supply grid from power generation all the way to ultimate consumption. Accordingly, you can, for example, take the power obtained from renewable energy sources and transmit this power via a line model, use a transformer to step it up or down and distribute it to any number of consumers using the double bus bar. Additionally, the bus systems of the measurement and protective equipment can be inter-connected, centrally evaluated and controlled using our SCADA Software. It makes it safe and easy to design and investigate intelligent power grids in the lab
• Micro Grid equipment sets allow training systems covering the generation, transmission and management of electrical energy as well as the protective equipment required to be combined, both electrically and by means of computer networks
• SCADA Software In addition to generation, transmission and distribution of energy, the SCADA software records all relevant values and handles the requisite switching operations. This can be done manually or automatically by means of Software. Energy feeds from generating sources and changes in load are recorded by the smart grid control center and the requisite actions taken to keep the power grid balanced
• Smart Grid comprises of generators, Transmission Line, Distribution, Transformers, Grid Connection, Consumer, PLC Control Systems, SCADA Operation etc.

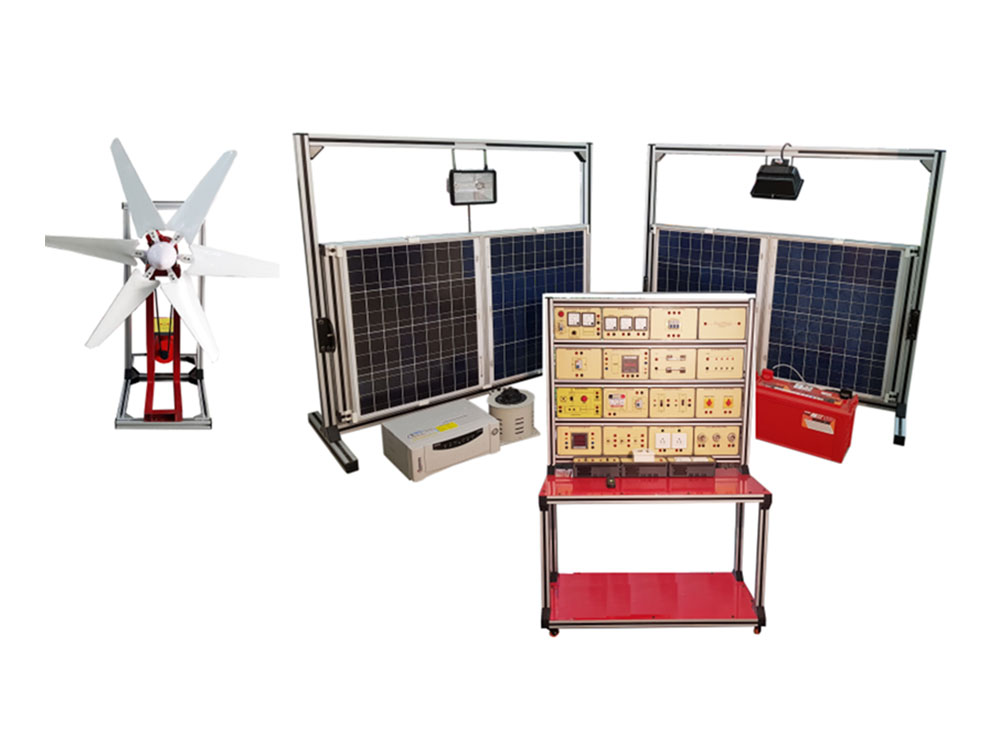

HYBRID (SOLAR & WIND) TRAINER SYSTEM (OFF+24V)

• Hybrid (Solar & Wind) Trainer System is a user-friendly renewable energy training system for the Electrical laboratories mounted on Aluminum profile racks consisting of sturdy table top flat panels. Designed to get fully acquainted with the basic concepts and functioning of a Solar & Wind system such as V-I Characteristics, Series / Parallel Combination, Cut-In speed of Wind Generator, Wind Energy Generation, Battery Charging-Discharging, Off Grid Inverter, AC Loading etc.
• Control panel is a 30X30mm Aluminum profile rack with sturdy table top flat panels & mimic diagram.
• Consist of for 2000W halogen Lamp for Sun Simulation mounted on moving platform, 500W/1000W Solar Panel fitted on 40X40mm Aluminum profile rack with tiltable, lockable frame.
• 100W Wind 3 Phase Permanent Magnet Synchronous Generator with 3/6 Blades Mounted in MS Sturdy Structure with 3/6 Blades Mounted in MS Sturdy Structure.
• 2 HP 3 Phase AC Motor for Wind Simulator coupled with 100W Permanent Magnet Synchronous Wind Generator.
• 100Ah Battery, Off Grid Inverter, DC Multifunction Meter, AC Multifunction Meter, AC Energy Meter, DC Circuit Breaker, AC Circuit Breaker, Rheostat, Lamp Load, Lux Power Meter, Anemometer, etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments

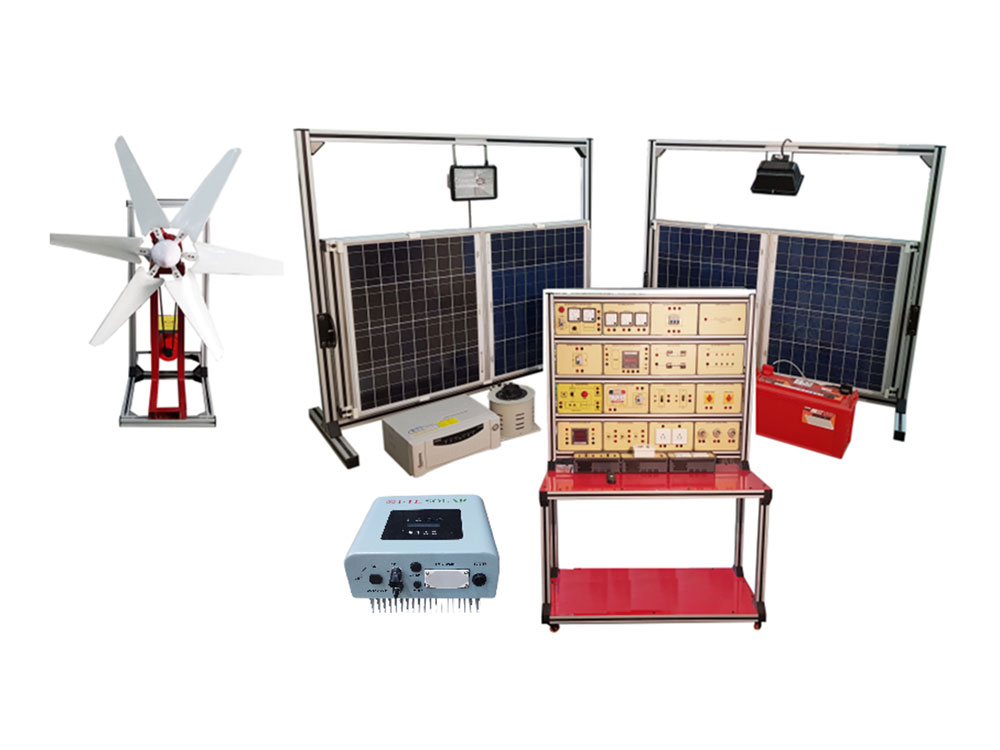

HYBRID (SOLAR & WIND) TRAINER SYSTEM (OFF+ON+24V)

• Hybrid (Solar & Wind) Trainer System is a user-friendly renewable energy training system for the Electrical laboratories mounted on Aluminum profile racks consisting of sturdy table top flat panels. Designed to get fully acquainted with the basic concepts and functioning of a Solar & Wind system such as V-I Characteristics, Series / Parallel Combination, Cut-In speed of Wind Generator, Wind Energy Generation, Battery Charging-Discharging, Off Grid Inverter, ON Grid Inverter, Net Metering Concept, AC Loading etc.
• Control panel is a 30X30mm Aluminum profile rack with sturdy table top flat panels & mimic diagram.
• Consist of for 2000W halogen Lamp for Sun Simulation mounted on moving platform, 500W/1000W Solar Panel fitted on 40X40mm Aluminum profile rack with tiltable, lockable frame.
• 100W Wind 3 Phase Permanent Magnet Synchronous Generator with 3/6 Blades Mounted in MS Sturdy Structure with 3/6 Blades Mounted in MS Sturdy Structure.
• 2 HP 3 Phase AC Motor for Wind Simulator coupled with 100W Permanent Magnet Synchronous Wind Generator.
• 100Ah Battery, Off Grid Inverter, ON Grid Inverter, DC Multifunction Meter, AC Multifunction Meter, AC Energy Meter, DC Circuit Breaker, AC Circuit Breaker, Rheostat, Lamp Load, Lux Power Meter, Anemometer, etc.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments
