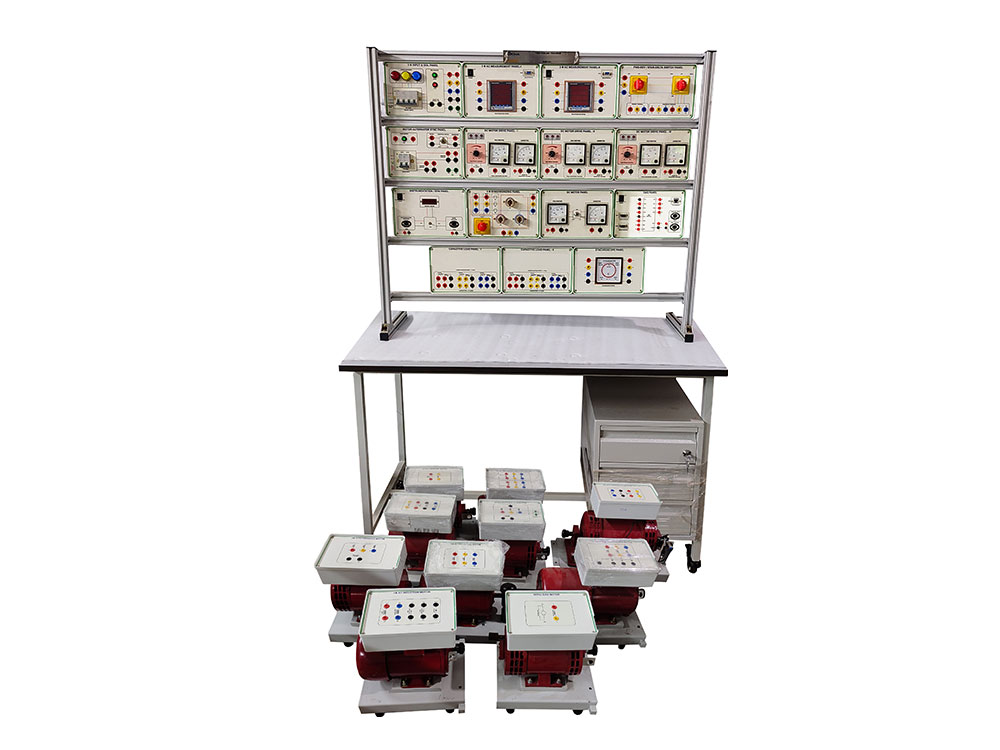

ELECTRICAL MACHINE TRAINER

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slid able ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Motors/Generators flexibly coupled to each other serving as a single unit for rotating electrical machines with swappable gear coupling.
• 3 Phase AC Power Supply Panel - MP1
• 3 Phase AC Measurement Panel
• FWD/REV, Star-Delta Switch Panel
• 1 Phase AC Power Supply Panel
• DC Meter Panel, DC Motor Drive Panel, Torque / RPM Panel
• Variable AC/DC Voltage Injector Panel
• Lamp Load Panel, Rotor Slip Ring Panel
• MOTORS (300W Motor & 300W Generator included in Standard Supply)
• DC Series/Shunt/Compound Trunnion Machine, DC Series/Shunt/Compound Motor,3 Phase Squirrel Cage Induction Motor
• 3 Phase Squirrel Cage Induction Motor,3 Phase AC Slip Ring Induction Motor,1 Phase AC Squirrel Cage Induction Motor
• AC/DC Universal Motor, AC/DC Universal Motor,3 Phase AC Synchronous Machine

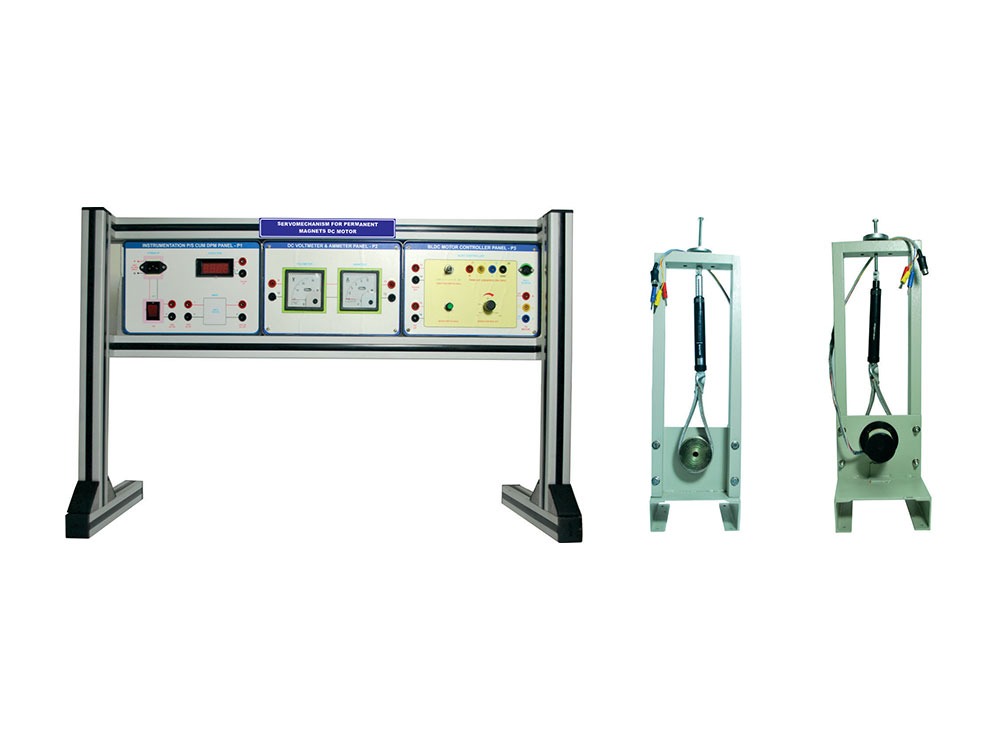

BRUSHLESS DC MOTOR TRAINER

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slid able ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Modular & Slid able panel for easy site servicing not close control
• RPM Panel, Power Supply Panel
• Controller Panel, BLDC Motor
• Voltage 24V DC, Wattage 200W
• Speed 3000 RPM (max), Frame 34mm, Panel mounted
• Bi-directional, Inbuilt Taco-Generator
• Instant brake arrangement, Load arrangement 6 kg spring balance

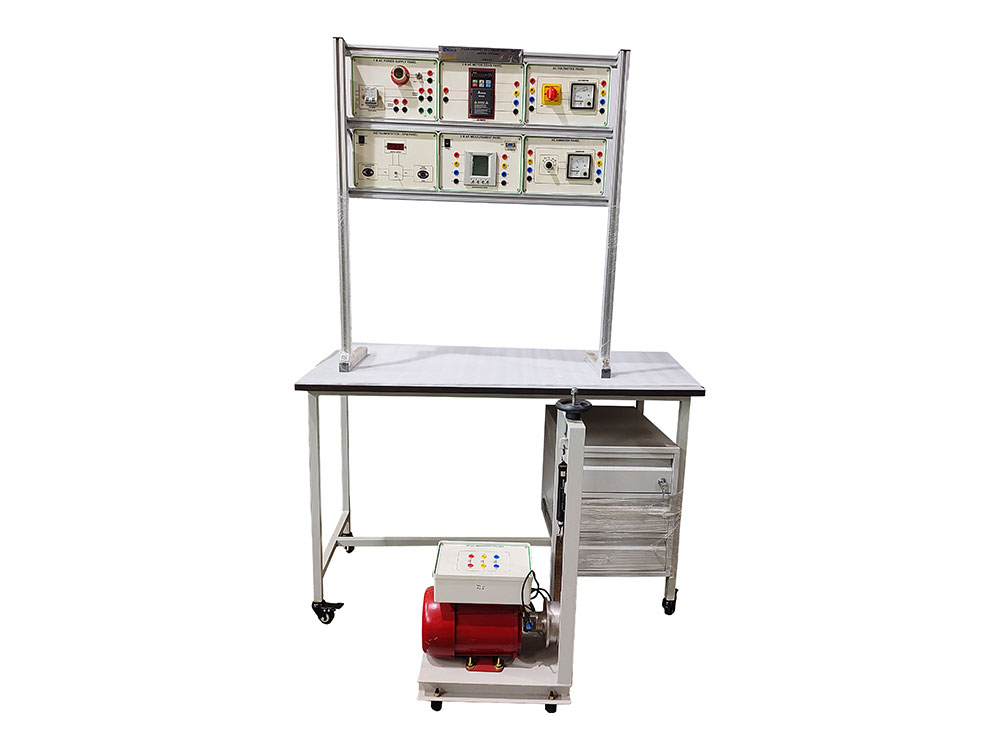

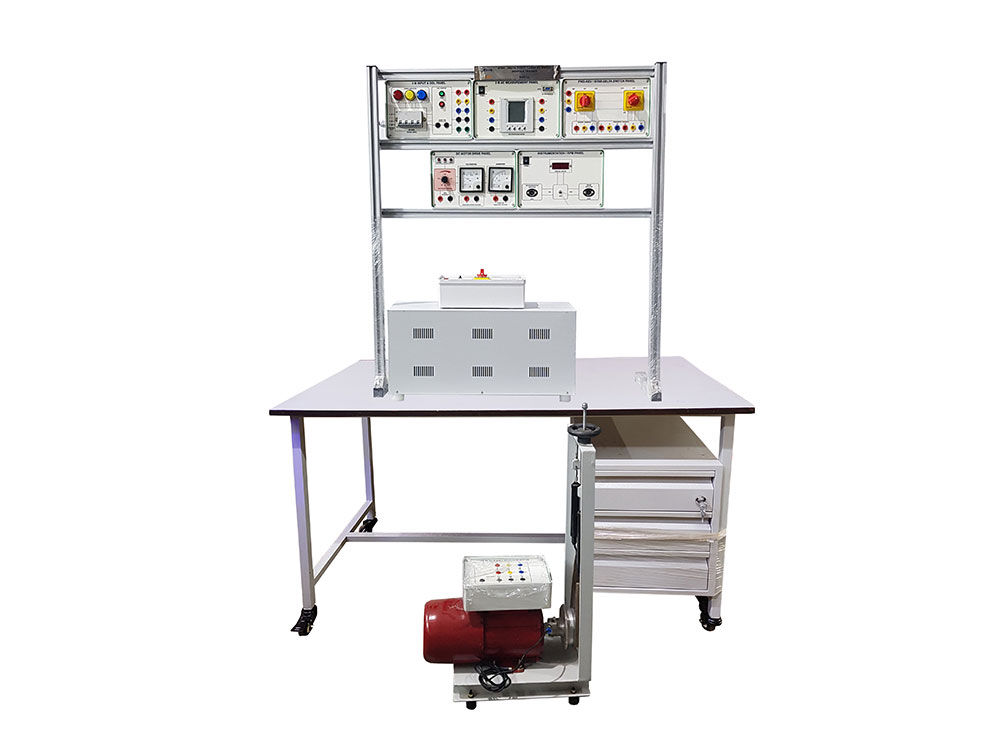

3 PHASE INDUCTION MOTOR TRAINER (VFD)

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slidable ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Modular type flat panel carrying various high voltage components housed in ABS plastic enclosure to minimize shock possibility.
• Modular & Slidable panel for easy site servicing not close control
• 3 Phase AC Power Supply Panel
• 1 Phase AC Power Supply Panel
• FWD/REV, Star-Delta Switch Panel
• 3 Phase AC Motor Drive (VFD) Panel
• AC Meter Panel
• MOTORS (300W Motor included in Standard Supply)
• 3 Phase Squirrel Cage Induction Motor - M3
• 220V/440V, 50Hz Delta/Star Connection
• 300W 4 Pole/ 6 Terminal, 1500 RPM
• Chasis Mounted, 19mm dia, 90mm, Frame
• Mechanical Loading 10kg (2No’s) spring balance
• Friction Break pulley arrangements, 61mmdia

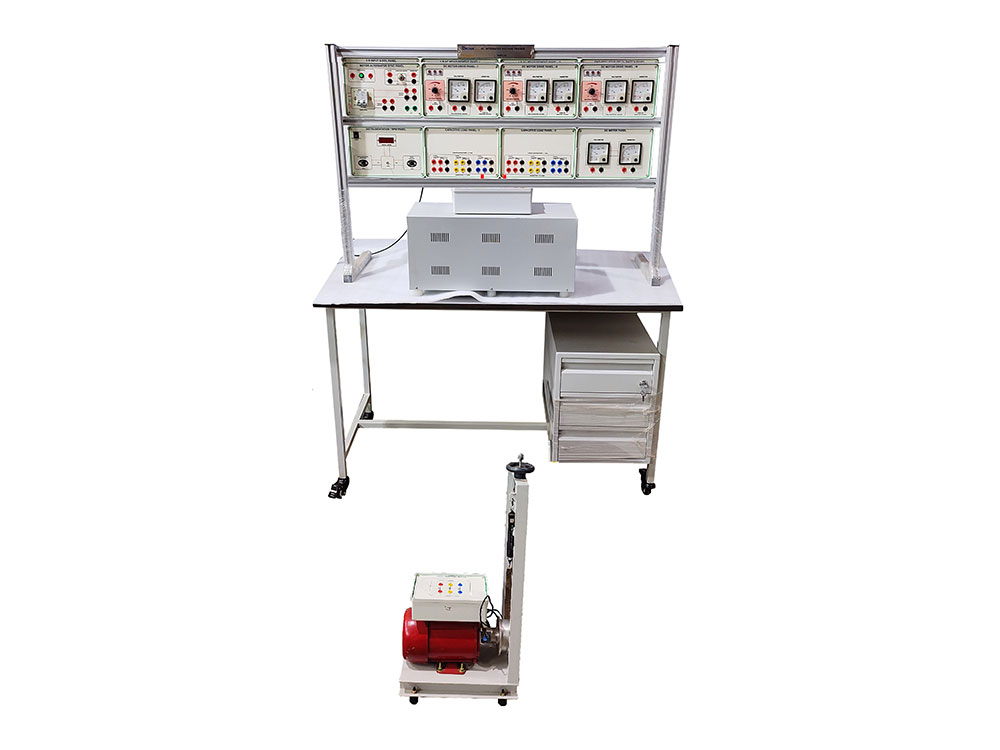

SLIP RING INDUCTION MOTOR TRAINER

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slidable ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Modular type flat panel carrying various high voltage components housed in ABS plastic enclosure to minimize shock possibility.
• Modular & Slidable panel for easy site servicing not close control
• 3 Phase AC Power Supply Panel,3 Phase AC Measurement Panel
• FWD/REV, Star-Delta Switch Panel,RPM Panel
• Rotor Slip Ring Panel
• 3 Phase AC Slip Ring Induction Motor - M4
• 415V, 50Hz Delta/Star Connection
• 300W 4 pole/ 10 Terminal, 1500 RPM
• Star Connected Rotor Slip on 4 Terminal
• Six Terminal Stator for Star/Delta Connection
• Chasis Mounted 19mm dia, 100mm frame
• Coupled with Aluminum Drum
• Inductive Proximity Sensor for speed measurement
• Mechanical Loading 10kg (2No’s) spring balance
• Friction Break pulley arrangements, 61mmdia

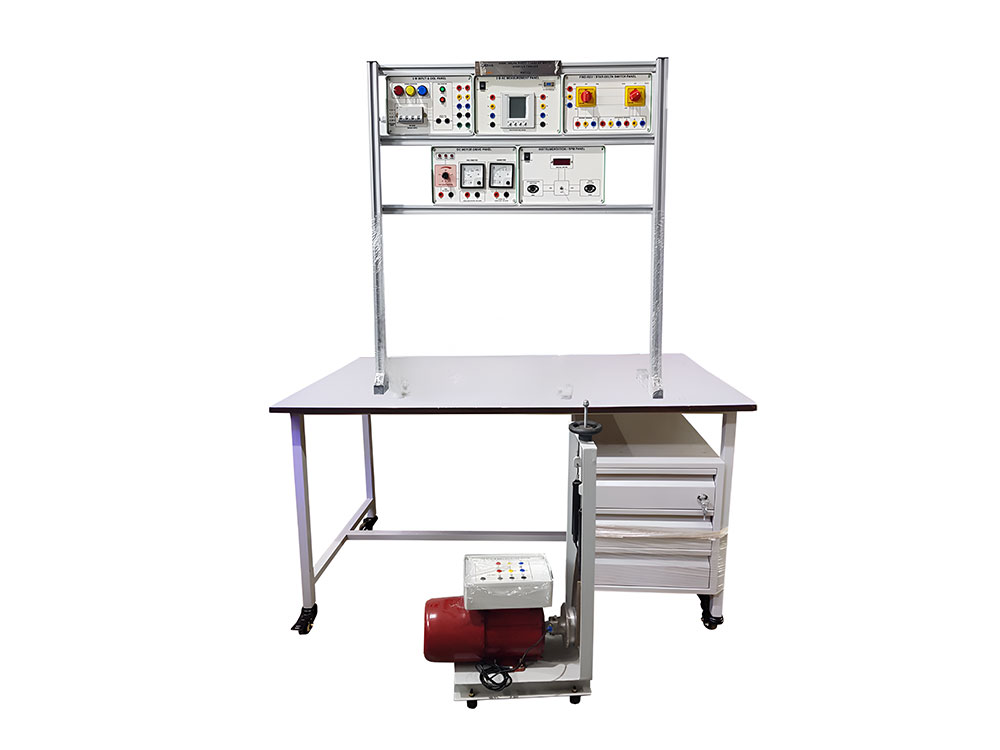

DC MOTOR TRAINER

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slidable ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Modular type flat panel carrying various high voltage components housed in ABS plastic enclosure to minimize shock possibility.
• Modular & Slidable panel for easy site servicing not close control
• Motor/Machine Provided with Earth socket for protection.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments
• 1 Phase AC Power Supply Panel,1 Phase AC Power Supply Panel
• DC Motor Drive Panel,RPM Panel
• MOTORS (300W Motor included in Standard Supply)
• DC Machine coupled with Aluminum Drum - M2
• Shunt / Series/Separately Excited /Compound Winding
• Capacity 300W/1500RPM, 200V/1.5A Armature, 200V- V field Excitation
• Chasis Mounted 19mm dia, 90mm frame
• Mechanical Loading 10kg (2No’s) spring balance
• Friction Break pulley arrangements, 61mmdia
• Inductive Proximity Sensor for speed measurement

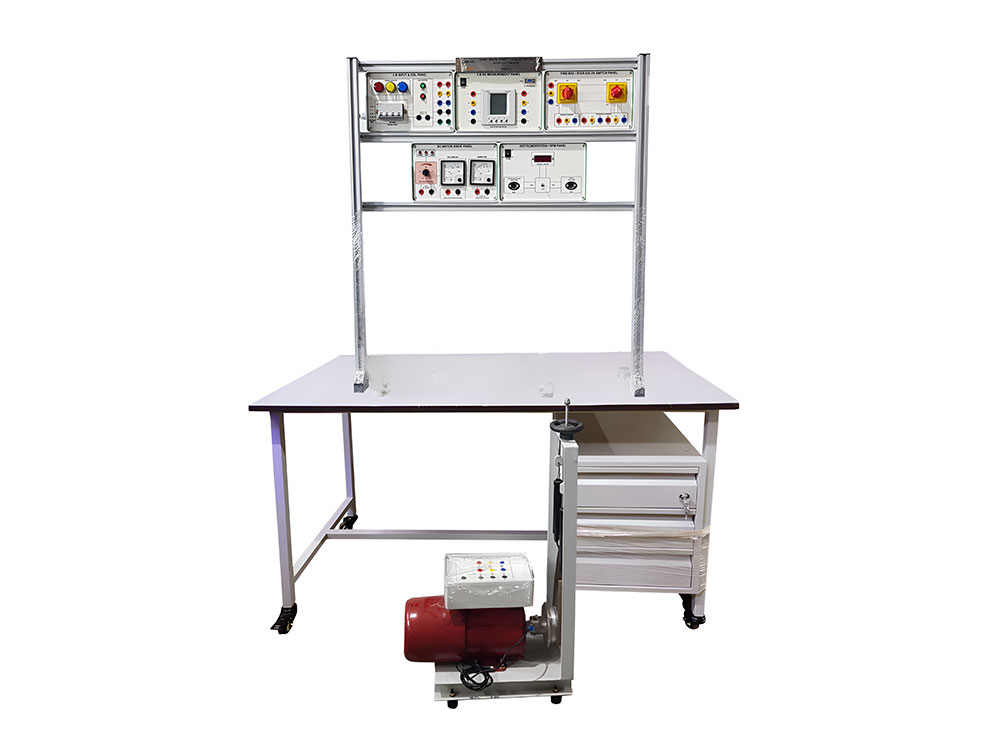

3 PHASE AC INDUCTION MOTOR TRAINER

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slidable ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Modular type flat panel carrying various high voltage components housed in ABS plastic enclosure to minimize shock possibility.
• Modular & Slidable panel for easy site servicing not close control
• Motor/Machine Provided with Earth socket for protection.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments
• 3 Phase AC Power Supply Panel,3 Phase AC Measurement Panel
• FWD/REV, Star-Delta Switch Panel,RPM Panel
• 3 Phase AC Induction Motor coupled with Aluminum Drum
• 415V, 50Hz Delta/Star Connection
• 300W 4 pole/ 6 Terminal, 1500 RPM, Die-Cast Rotor
• Six Terminal Stator for Star/Delta Connection
• Chasis Mounted 19mm dia, 90mm frame
• Inductive Proximity Sensor for speed measurement
• Mechanical Loading 10kg (2No’s) spring balance
• Friction Break pulley arrangements, 61mmdia

1 PHASE INDUCTION MOTOR TRAINER

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slidable ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Modular type flat panel carrying various high voltage components housed in ABS plastic enclosure to minimize shock possibility.
• Modular & Slidable panel for easy site servicing not close control
• Motor/Machine Provided with Earth socket for protection.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments
• 1 Phase AC Power Supply Panel,1 Phase AC Measurement Panel
• RPM Panel
• MOTORS (1HP Motor included in Standard Supply)
• 1 Phase AC Squirrel Cage Induction Motor coupled with Aluminum Drum - M5
• 230V, 50Hz 1HP, 4Pole/ 10 Terminal,1500RPM
• Can work as Split phase, CSCR (Capacitive Start Capacitive Run) &
• CSIR (Capacitive Start Induction Run)
• Dia-cast Rotor, 4Terminal Stator (Two windings, Main & Auxiliary)
• Foot mounted, 19mm dia, 90mm Frame
• Inductive Proximity Sensor for speed measurement
• Mechanical Loading 10kg (2No’s) spring balance
• Friction Break pulley arrangements, 61mmd

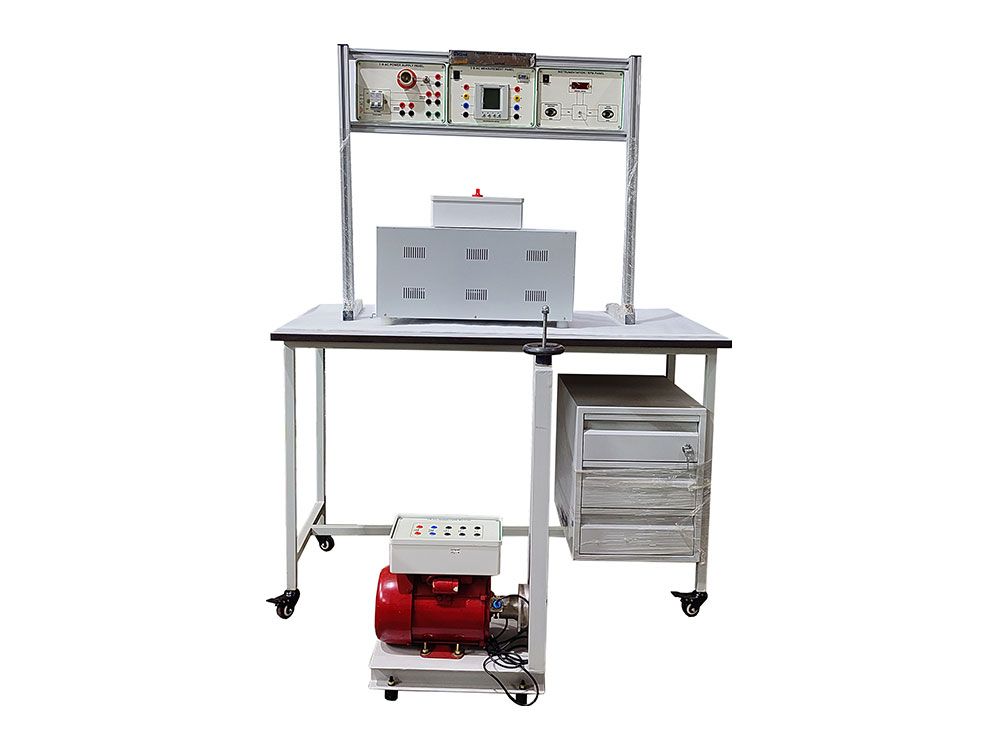

UNIVERSAL MOTOR TRAINER

• Modular & Slidable panel for easy site servicing not close control
• Motor/Machine Provided with Earth socket for protection.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments.
• 1 Phase AC Power Supply Panel
• 1 Phase AC Measurement Panel
• RPM Panel,DC Meter Panel
• Variable AC/DC Voltage Injector Panel
• MOTORS (1HP Motor included in Standard Supply)
• Universal Motor coupled with Aluminum Drum
• 230V AC/ 150V DC,
• 300W, 4Pole/ 4 Terminal, 1500RPM
• AC/DC Operation & Direction Change
• Commutator / brush arrangement Rotor , 4Terminal Stator
• Chasis mounted, 19mm dia, 90mm, Frame
• Proximity Sensor to measure RPM.
• Mechanical Loading 10kg (2No’s) spring balance
• Friction Break pulley arrangements, 61mmdia

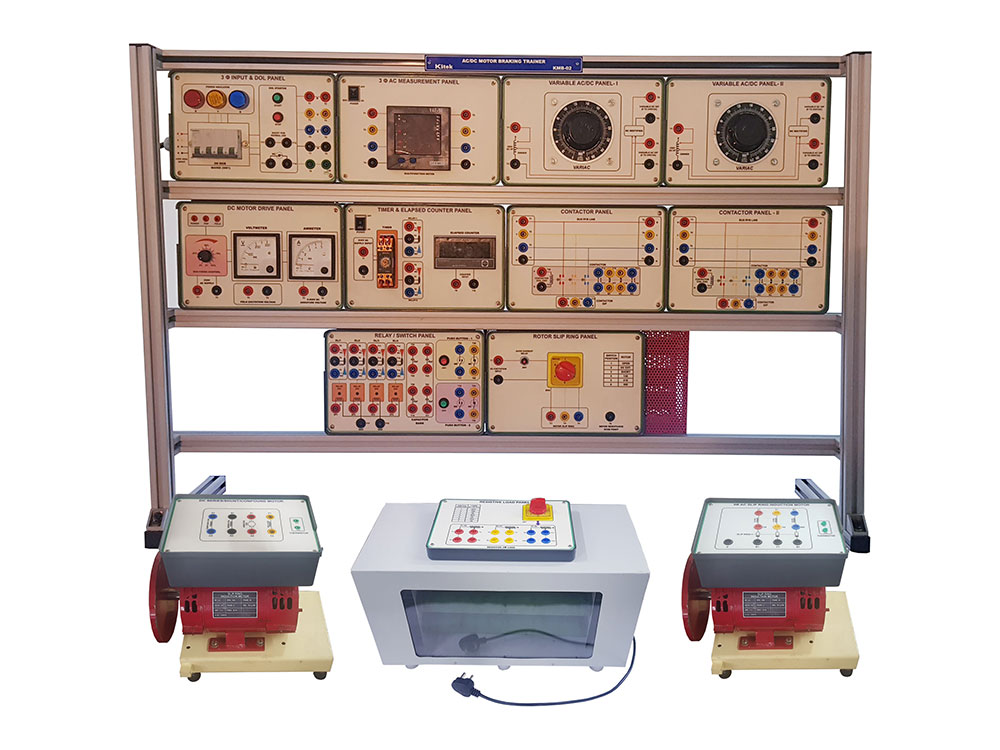

MOTOR BREAKING METHOD TRAINER

• Machine trainer having control panel provided in 30X30mm Aluminum profile rack with 3 railing sturdy table top flat panel / MS ENCLOSURE
• Electrical Control panels are provided in Slidable ABS plastic panel mounted on the aluminum rack with mimic diagram.
• Modular type flat panel carrying various high voltage components housed in ABS plastic enclosure to minimize shock possibility.
• Modular & Slidable panel for easy site servicing not close control
• Motor/Machine Provided with Earth socket for protection.
• All input & output are terminated in 4mm BS-10 shrouded connector, provided with 4mm shrouded cable for experiments.
• 3 Phase AC Power Supply Panel,3 Phase AC Measurement Panel
• FWD/REV, Star-Delta Switch Panel,1 Phase AC Power Supply Panel
• DC Motor Drive Panel, Torque / RPM Panel
• Timer & Elapsed Time Counter Panel
• Contactor Panel, Relay & Switch Panel
• AC/DC Resistive Load Panel,Variable AC/DC Voltage Injector Panel
• Rotor Slip Ring Panel
• MOTORS (300W Motor & 300W Generator included in Standard Supply)
• DC Series/Shunt/Compound Motor Coupled with Flywheel - M2
• Shunt / Series/Separately Excited /Compound Winding
• Can work as Shunt / Series/Separately Excited / Compound Motor
• Capacity 300W, 200V/1.5 Armature, 200V- V field Excitation
• 1500 RPM/8 Terminal
• Foot mounted, 19mm dia, 90mm Frame
• Flywheel for Thermistor to monitor Motor winding Temperature
• 3 Phase AC Slip Ring Induction Motor Coupled with Flywheel - M4
• 415V, 50Hz Delta/Star Connection
• 300W 4 pole/ 10 Terminal, 1500 RPM
• Star Connected Rotor Slip on 4 Terminal
• Six Terminal Stator for Star/Delta Connection
• Foot mounted 19mm dia, 90mm frame
• Thermistor to monitor Motor winding Temperature
