Power Electronics Didactic Trainer

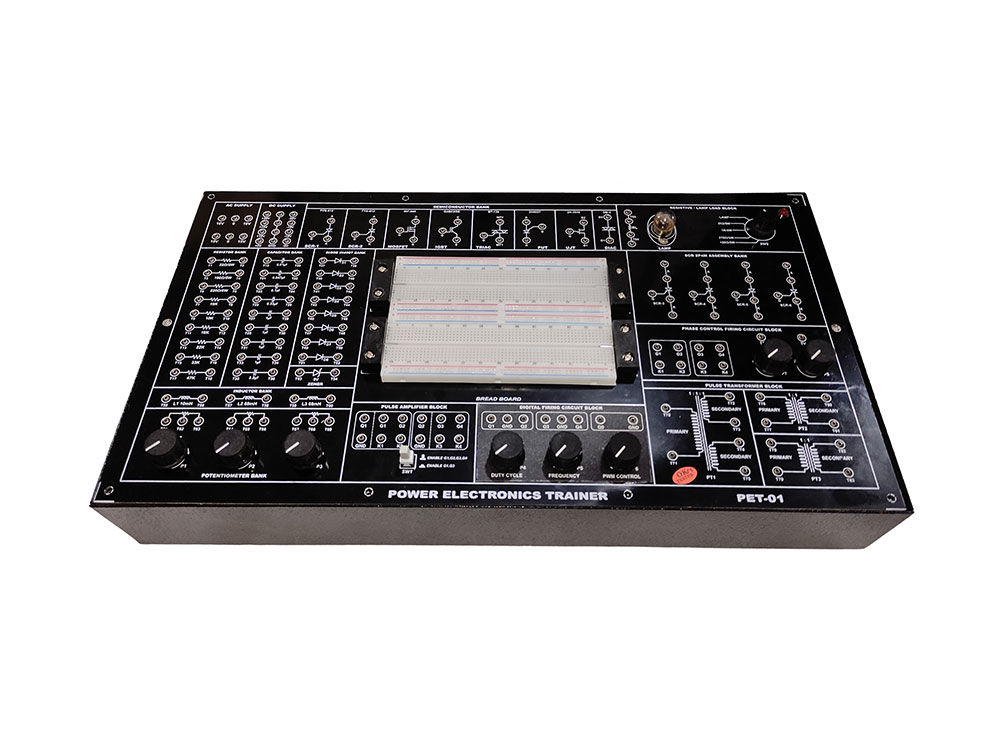

POWER ELECTRONICS TRAINER
PET-01
- On board Power Supplies, Firing circuit, Pulse Amplifier, Power Devices
- On board Power Devices IGBT-G4BC20S, MOSFET-IRF540, UJT-2N2646, DIAC-DB3
- TRIAC-BT136, PUT- 2N6027, SCR-TYN612, FET-BS170
- On board Bread Board
- On board Pulse transformer:
- Pulse transformer PT4502 1:1 - 2nos.
- Pulse transformer PT4503 1:1:1 – 1 no.
- On Board Circuit Components, Resistive/Lamp Load
POWER ELECTRONICS TRAINER
KMS-800
- KMS-801 SCR TIMER USING SCR, UJT & PUT RELAXATION OSCILLATOR
- KMS-802 HALF WAVE/FULL WAVE RECTIFIER USING SCR, SCR PHASE CONTROL USING RC TRIGGERD
- KMS-803 SCR PHASE CONTROL USING DIAC/TRIAC, UJT, R TRIGGERED
- KMS-804 SCR TRIGGER USING PUT
- KMS-805 SPEED CONTROL OF DC MOTOR USING SCR(OPEN LOOP)
- KMS-806 FORCED COMMUTATION USING SCR
