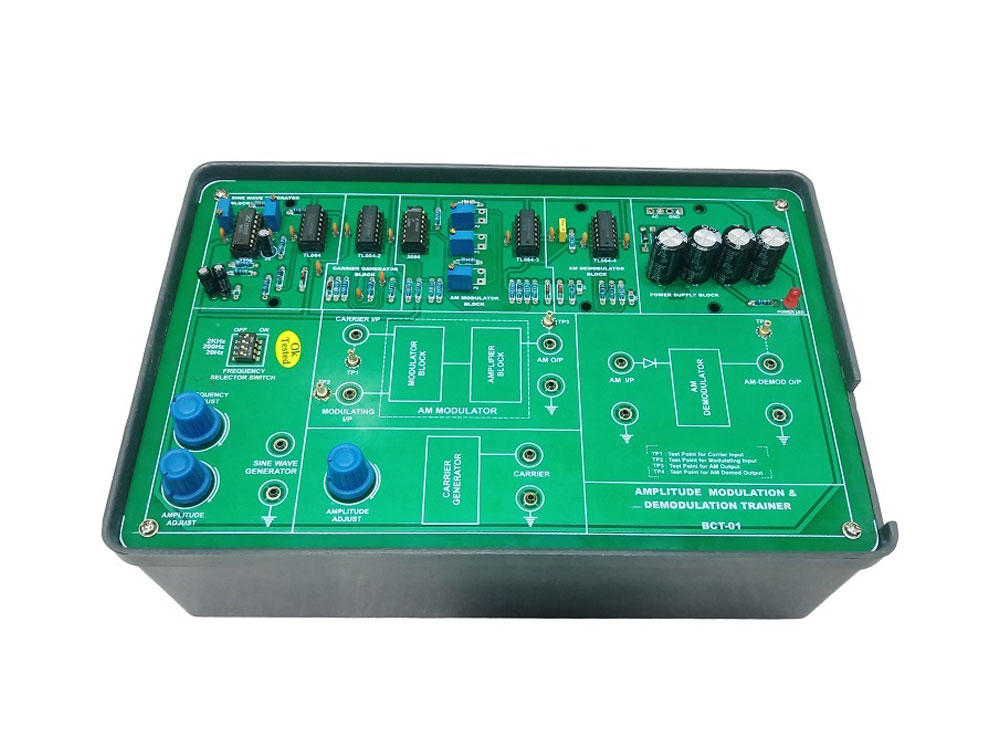

AMPLITUDE MODULATION & DEMODULATION KIT

• Provides Sine waveform output using IC 2206 having frequency varies from 20 Hz to 20 KHz. with Amplitude adjustments.
• Carrier generation using IC TL084 output of 40 KHz with Amplitude adjustments.
• AM-modulator circuit using IC 3086 & AM-Demodulator using Diode detector.
• Amplifier circuit using IC TL084

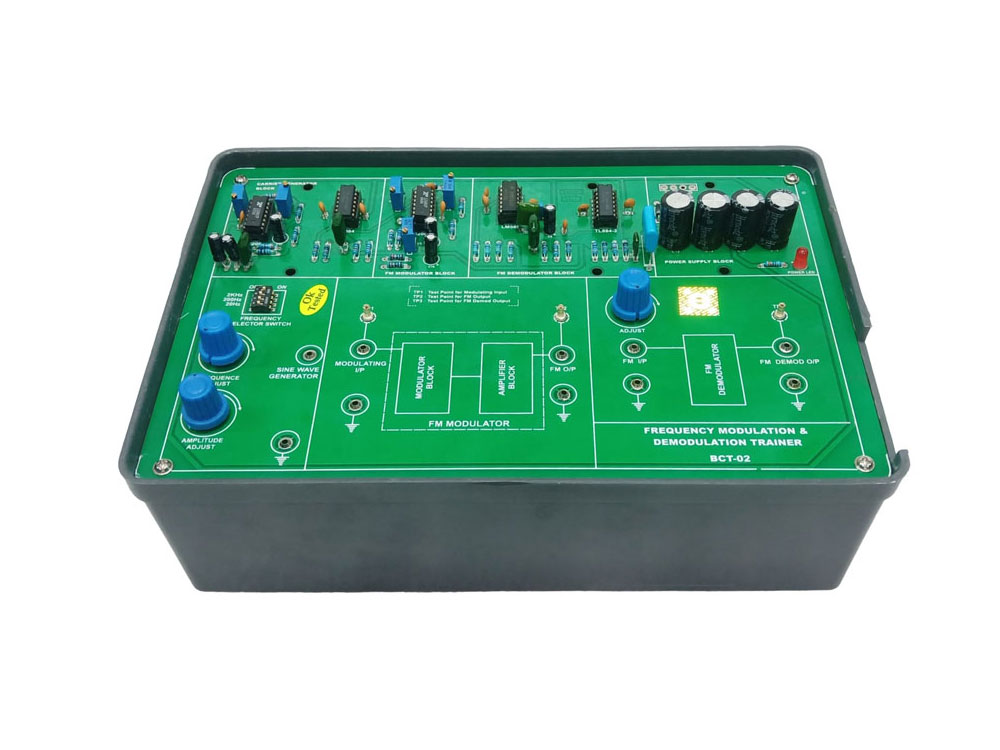

FREQUENCY MODULATION & DEMODULATION KIT

• Provides Sine waveform output using IC 2206 having frequency varies from 20 Hz to 20 KHz. with Amplitude adjustments.
• Provides Carrier waveform output of 50 KHz with Amplitude adjustments
• FM -modulator circuit using IC 8038 & Demodulator using using IC 565
• Amplifier circuit using IC TL084

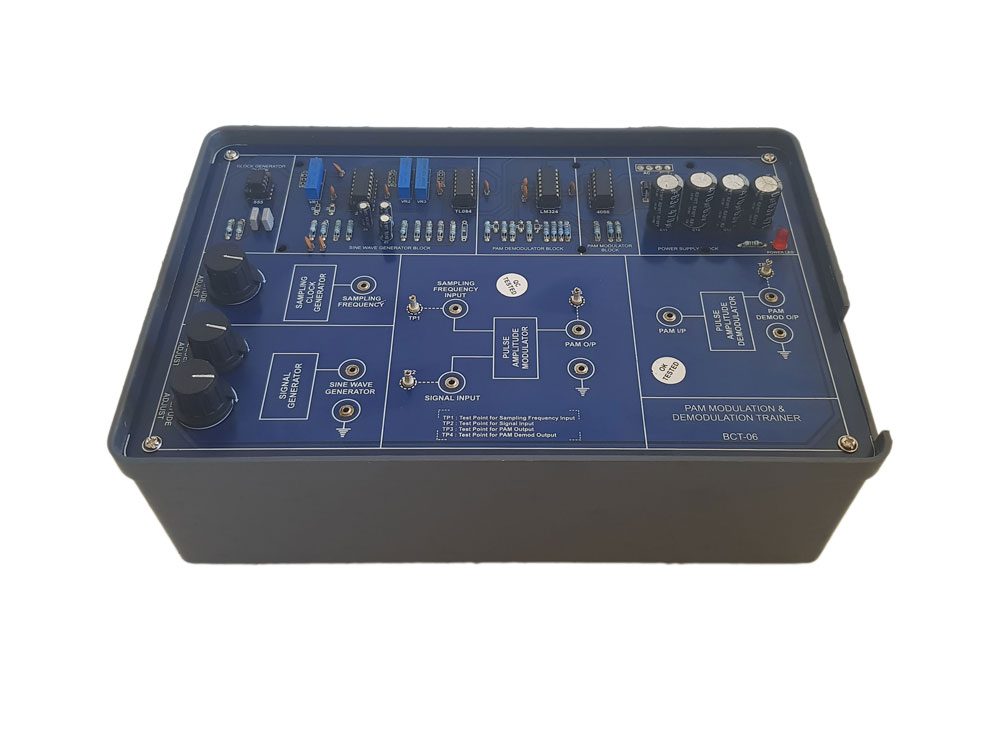

PAM MODULATION & DEMODULATION KIT

• Provides Sine waveform output using IC 2206 having frequency varies from 100 Hz.-1.5 KHz with Amplitude adjustments up to Maximum 10V p-p
• Carrier Generation using IC 555 having variable output of 6KHz to 50KHz
• PAM -modulator circuit using IC 4066, Demodulator using Low Pass Filter.

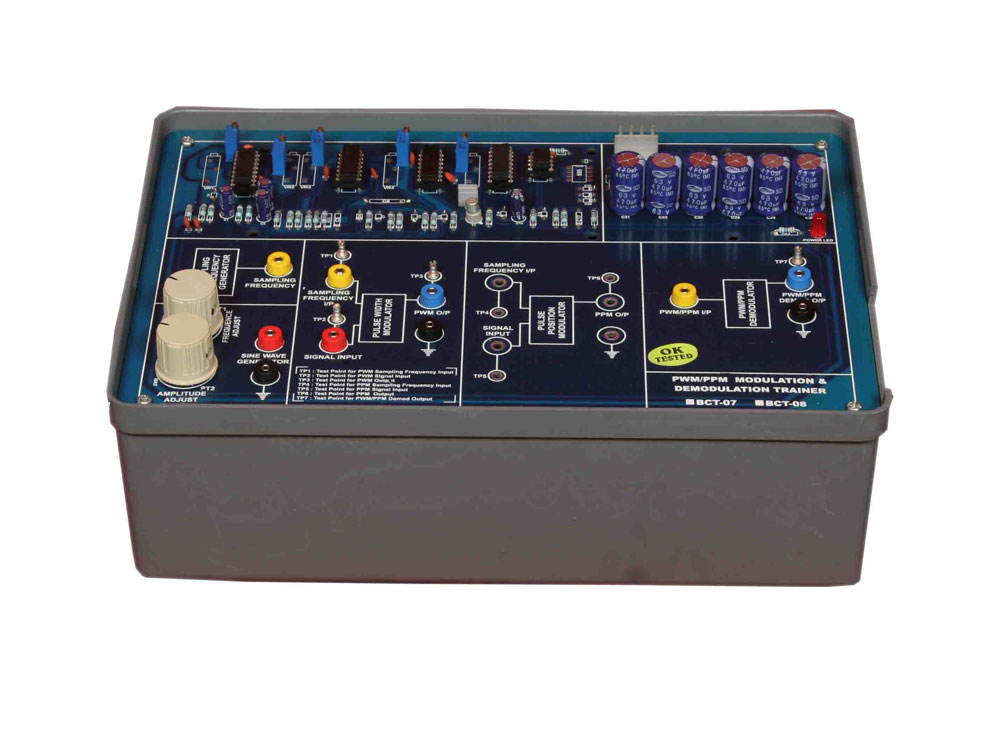

PWM/PPM MODULATION & DEMODULATION KIT

• Provides Sine waveform output using IC 2206 having frequency varies from 100 Hz.-1.5 KHz with Amplitude adjustments up to Maximum 10V p-p.
• Sampling Frequency generation using LM565 having Frequency of 34 KHz.
• PWM/PPM -modulator circuit using IC 555, Demodulator Low Pass Filter.

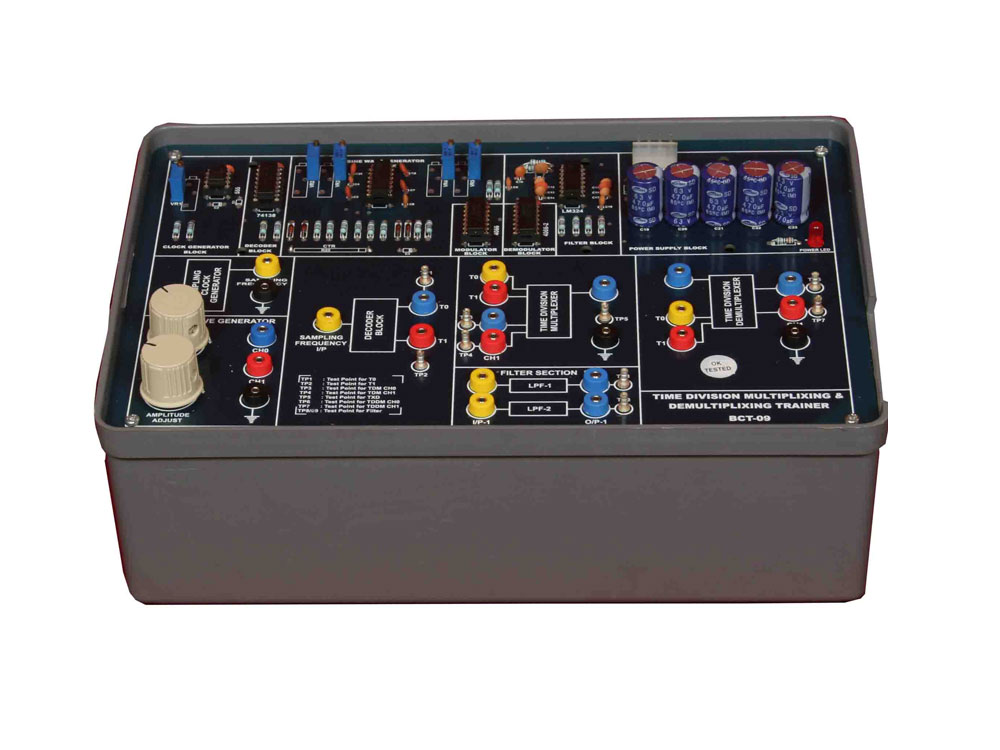

TDM MODULATION & DEMODULATION KIT

• Provides two Sine waveform output Frequency of 125 Hz & 200 Hz with variable Amplitude.
• Sampling Frequency generation using IC 555 having Frequency of 40 KHz.
• Two channel TDM -modulator circuit using IC 4066, Demodulator using 4066.
• On-board 4th order Low pass filter with cut-off frequency of 3.4khz

PCM MODULATION & DEMODULATION TRAINER

• Provides Sine waveform output using IC 2206 having frequency of 30 Hz with Amplitude adjustments of 0 to 5Vp-p.
• Separate Variable DC source Available from -5V to +-5V.
• Sampling Frequency generation using IC 555 having Frequency of 25 KHz.
• PCM modulation using 74163 with 8 bit ADC0800 displayed in 8 Led’s
• PCM demodulation using 74165, with 8 bit DAC0800 displayed in 8 Led’s

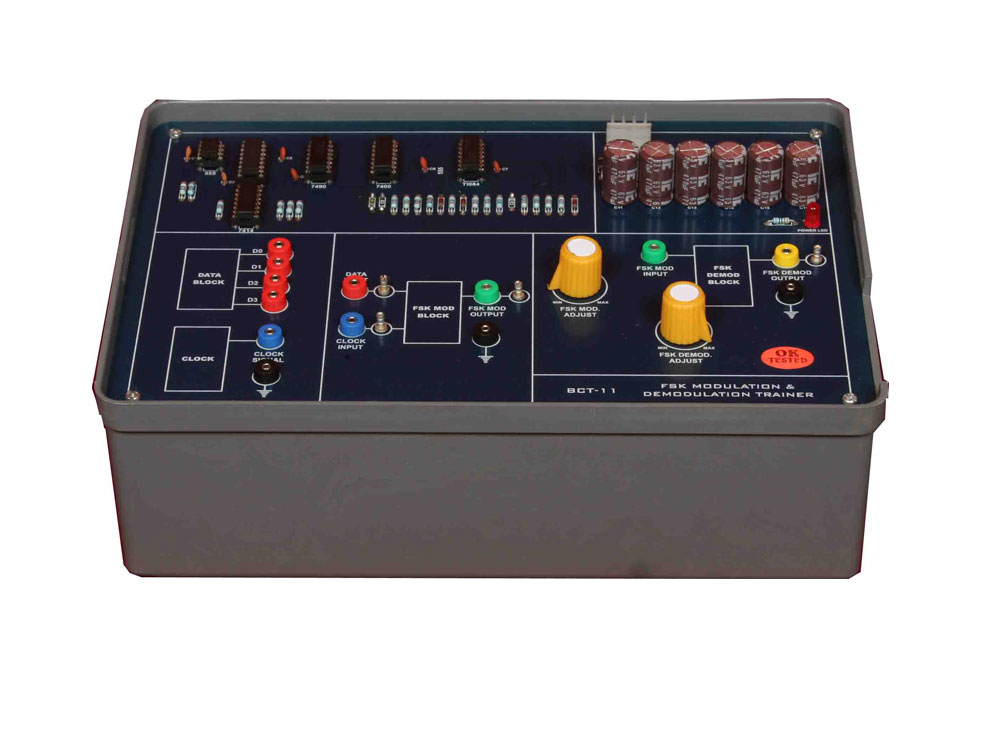

FSK MODULATION & DEMODULATION KIT

• TTL Clock Generation using IC 555 having output of 15 KHz.
• Four Nos. of Data Clock using IC 7490
• FSK -modulator circuit using IC 74163 and IC 7400
• FSK -Demodulator using IC TL084

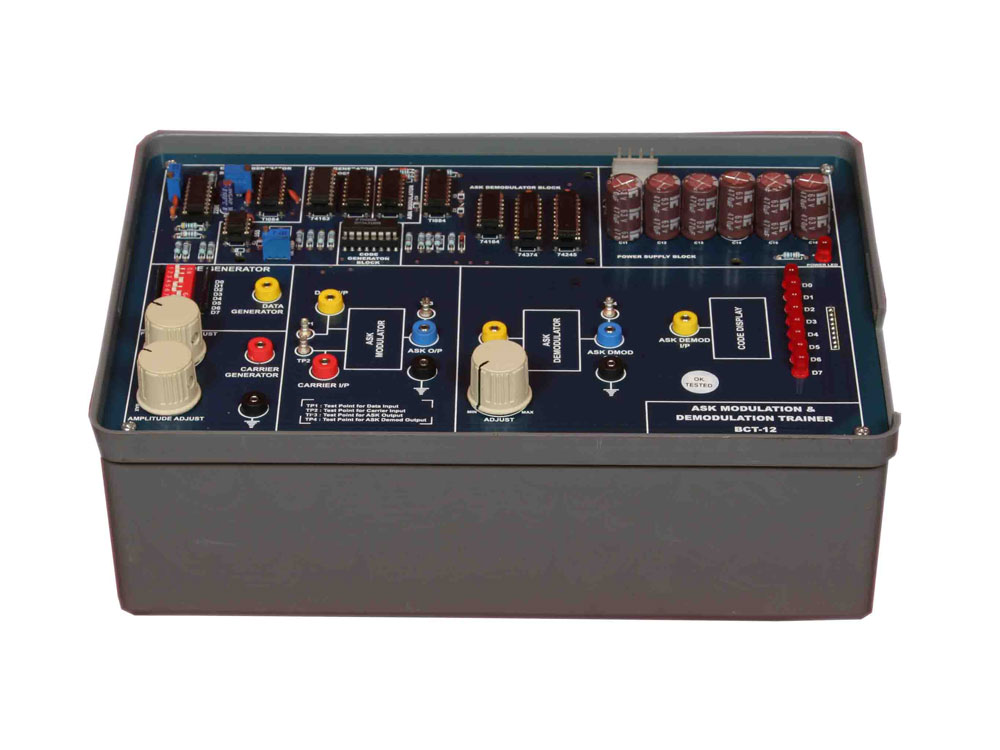

ASK MODULATION & DEMODULATION KIT

• Eight way DIP switch provided to create 8-bit word Data Generator using 74165.
• Provides Sine waveform output using IC 2206 having frequency of 30 KHz with Amplitude adjustments of 5V p-p.
• ASK -modulator circuit using IC 4066
• ASK -Demodulator using IC TL084

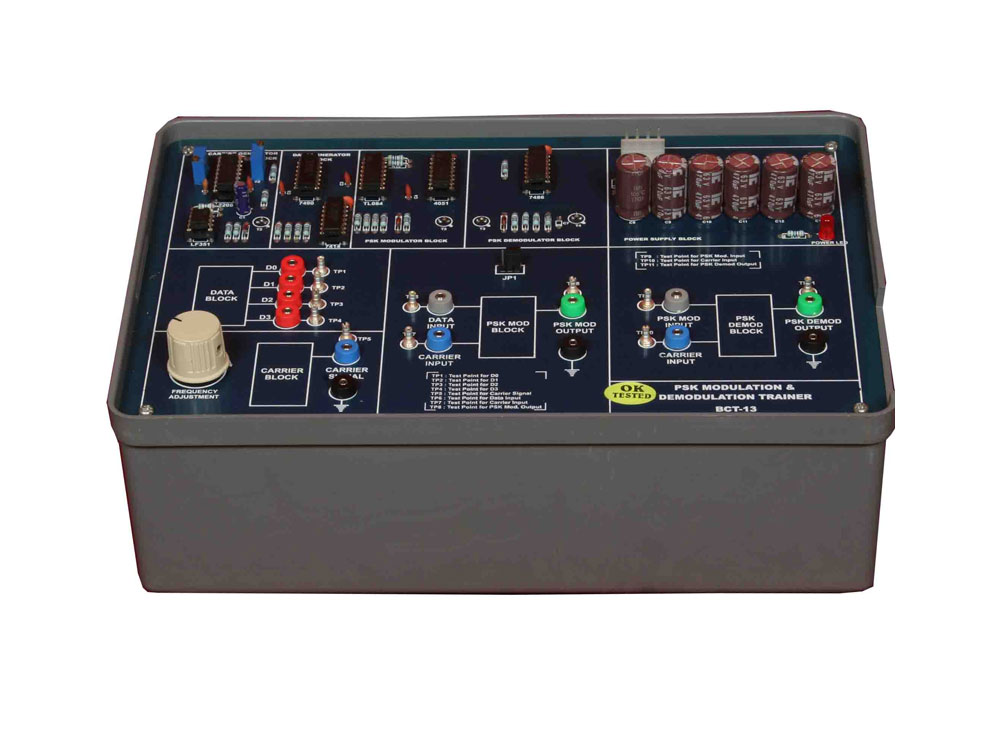

PSK MODULATION & DEMODULATION KIT

• Provides Sine waveform output using IC 2206 having frequency of 10 Hz to 20 KHz with Amplitude adjustments of 5V p-p.
• Four Nos. of Data Clock using IC 7490
• PSK -modulator circuit using IC 4051 and IC TL084
• PSK -Demodulator using IC 7486

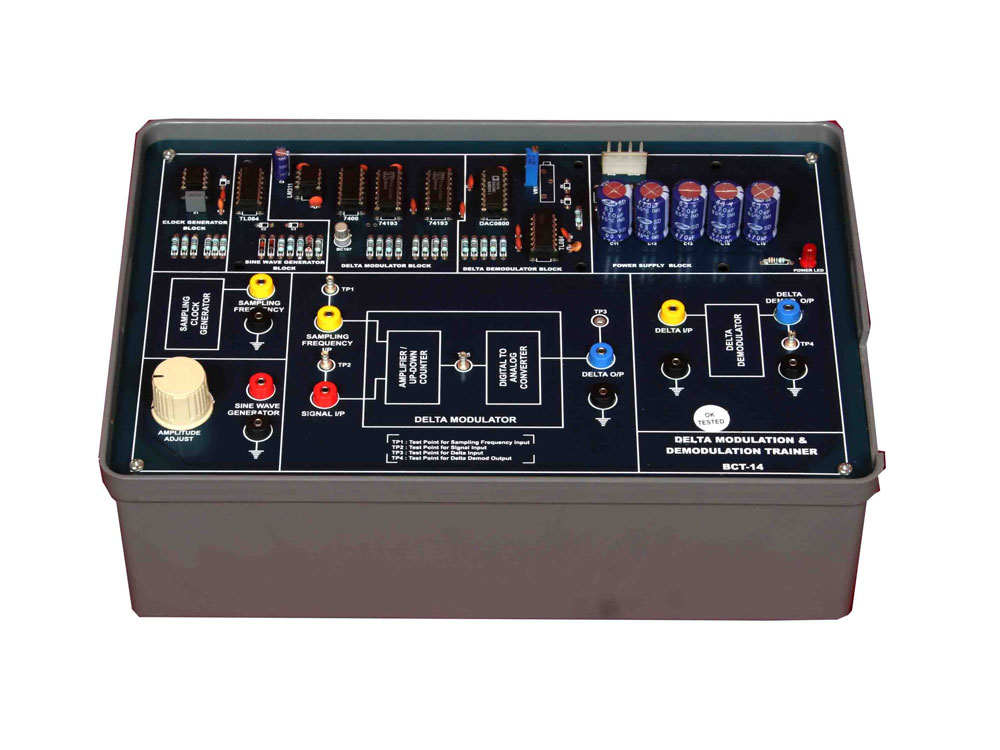

DELTA MODULATION & DEMODULATION KIT

• Provides Sine waveform output using IC TL084 having Frequency of 250Hz with
• Amplitude variable up to Maximum 10V p-p.
• Provides Square waveform output using IC 555 having output of 20 KHz.
• DELTA -modulator circuit using IC 74193 UP DOWN Counter and DAC-0800
• DELTA -Demodulator using IC TL084

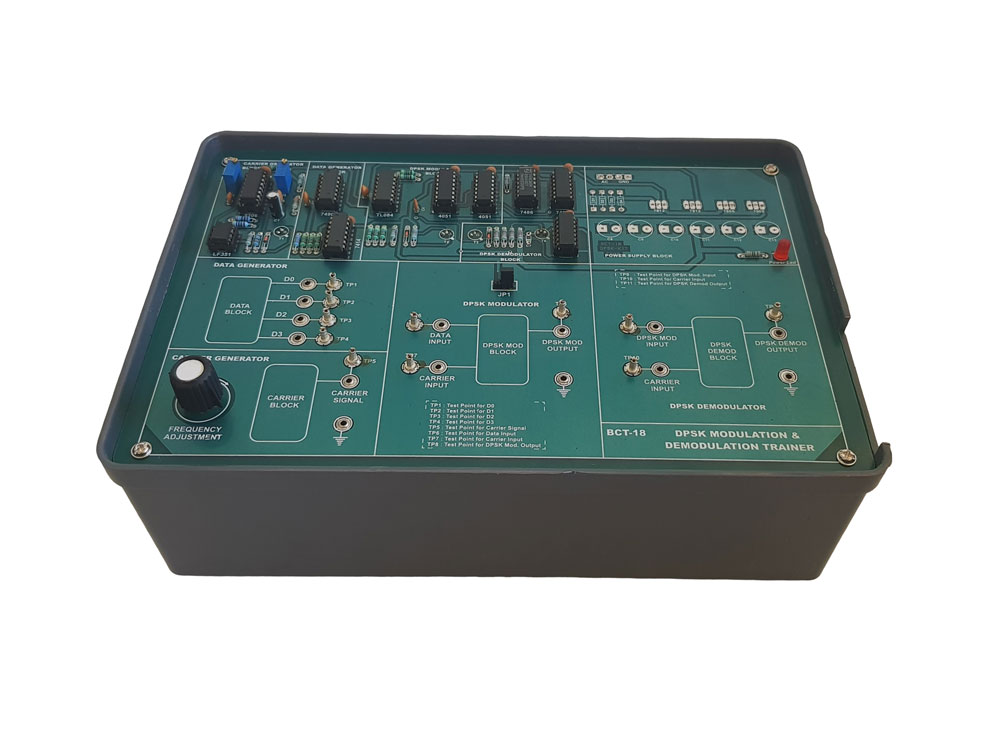

BCT-18 DPSK MODULATION & DEMODULATION KIT

• Provides Sine waveform output using IC 2206 having frequency of 10hz to 20 KHz with Amplitude adjustments of 5V p-p
• Four Nos. of Data Clock using IC 7490
• PSK -modulator circuit using IC TL084 and Two Nos. of IC 4051
• PSK -Demodulator using IC 7486 and IC 74164
