VLSI FPGA/CPLD Trainer, Kitek Technologies PVT. LTD. | Navi Mumbai

Microcontroller And Processor Didactic trainer

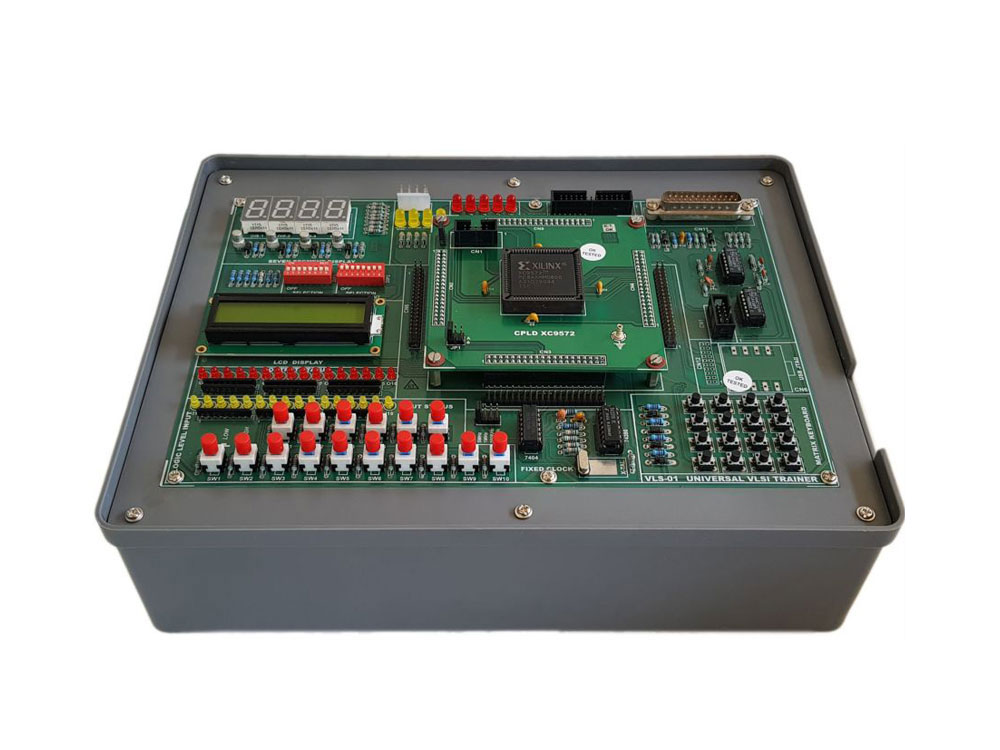

VLS-01

Piggy Bag Modules compatible XILINX SPARTAN 3 XC3S50 FPGA, XILINX SPARTAN 3 XC3S400 FPGA, XILINX SPARTAN 6 XC6SLX4/LX9 FPGA,XILINX XC9572 CPLDXILINX XC95108 CPLD, Altera FPGA Cyclone-II EPC25On-board ISP Programmer for Piggy Bag Modules
16 Toggle Input Switch with LED indication to indicate logic low and logic high
16 LED for output indication.
On Board 4 Digit Seven Segment Displays
On Board 16x1Alphanumeric LCD Display.
On Board 4x4 Keys Keyboard Matrix.
On-board ISP Programmer for Piggy Bag Modules
Clock generator generating 10MHz, 5MHz, 1MHz, 100 KHz & 100 Hz.
In-Built Power Supply of +5V/1.5A, ±12V/250mA

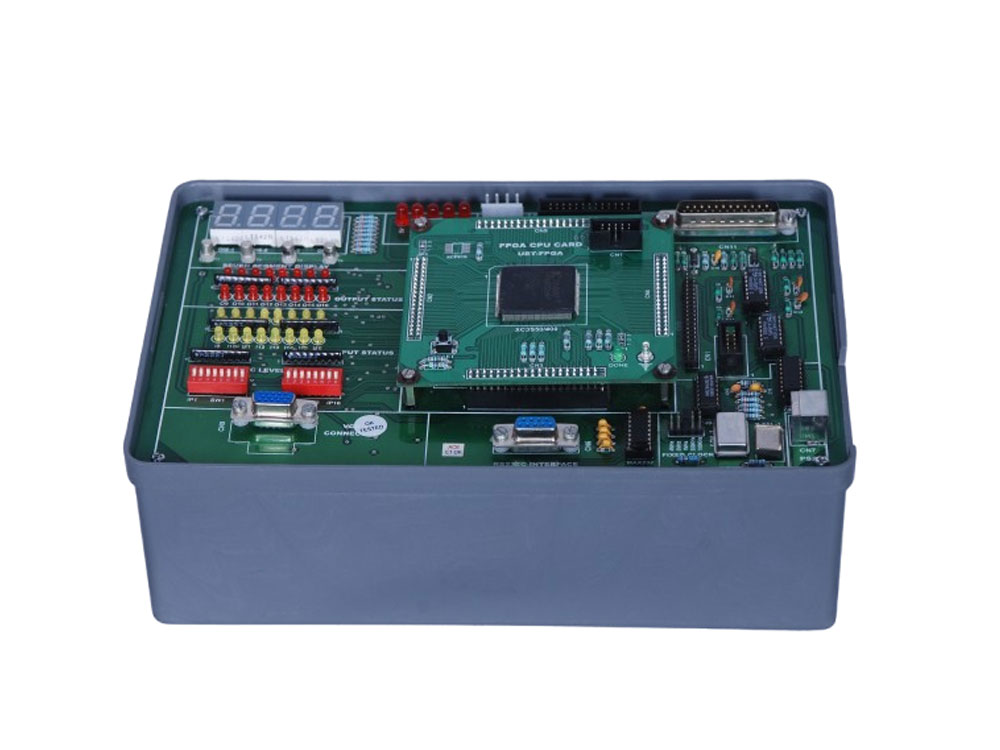

VLS-04

On Board 16 Toggle Input Switch with LED indication to indicate logic low and logic high
On Board 16 LED for output indication.
On Board 4 Digit Seven Segment Displays
Clock Generator 5 MHz, 1 MHz, 500 KHz & 100 KHz
In-Built Power Supply of +5V/1.5A, ±12V/250mA
Attractive ABS Plastic enclosures.
User's Manual with sample experimental programs

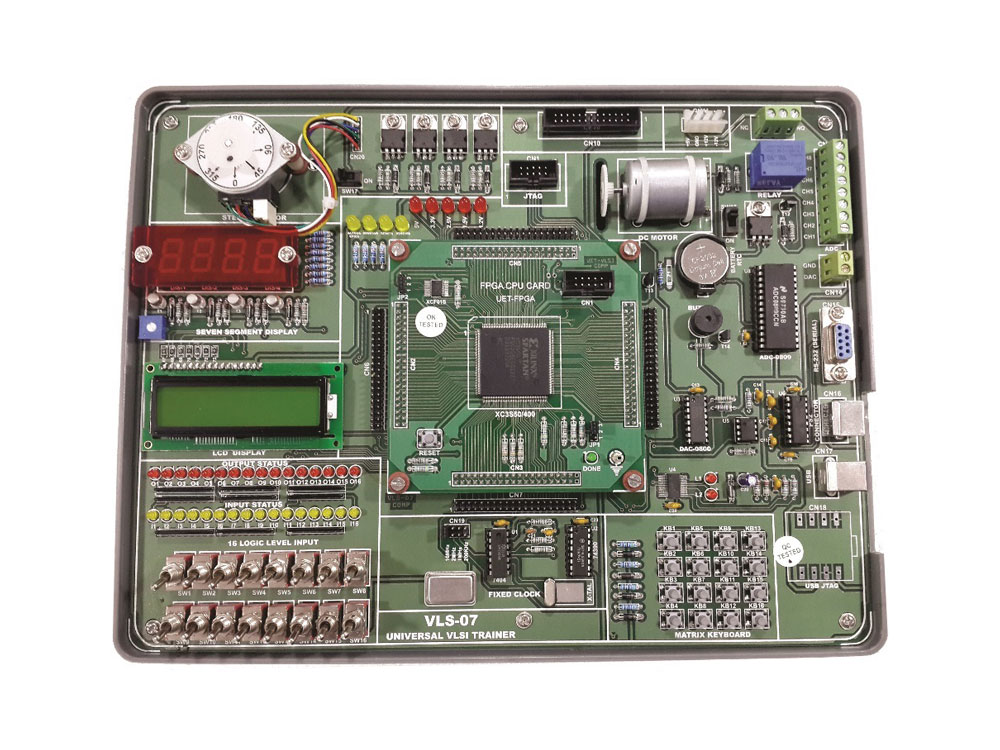

VLS-07

Supported Piggy Bag XILINX SPARTAN 3 XC3S50 FPGA
XILINX SPARTAN 3 XC3S400 FPGA, XILINX SPARTAN 6 XC6SLX4/LX9 FPGA XILINX XC9572 CPLD, XILINX XC95108 CPLD, Altera FPGA Cyclone-II EPC25 with USB JTAG Programmer
16 Toggle Input Switch with LED indication to indicate logic low and logic high
16 LED for output indication.
On Board 4 Digit Seven Segment Displays
On Board 16x1Alphanumeric LCD Display.
On Board 4x4 Keys Keyboard Matrix.
On Board PS2 Keyboard interface.
On Board ADC 0809 interface, DAC 0800 interface
On Board DC motor interface, Relay interface, Buzzer interface
On Board Stepper motor interface
In-Built Power Supply of +5V/1.5A, ±12V/250mA
Attractive ABS Plastic enclosures.
User's Manual with sample experimental programs
