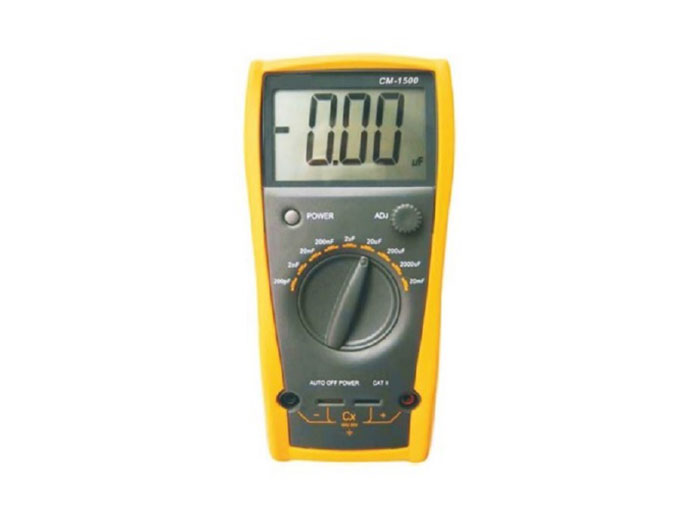

Digital Capacitance Meter

Features:
31½ Digit Display
2000 Counts
Large LCD Display
Full Protection function, capacitor with the function of Self discharge
Auto Power OFF (APO)

Digital LCR Meter

Features:
31½ Digit Display
2000 Counts
Full Protection function, capacitor with the function of Self discharge
Auto Power OFF (APO)

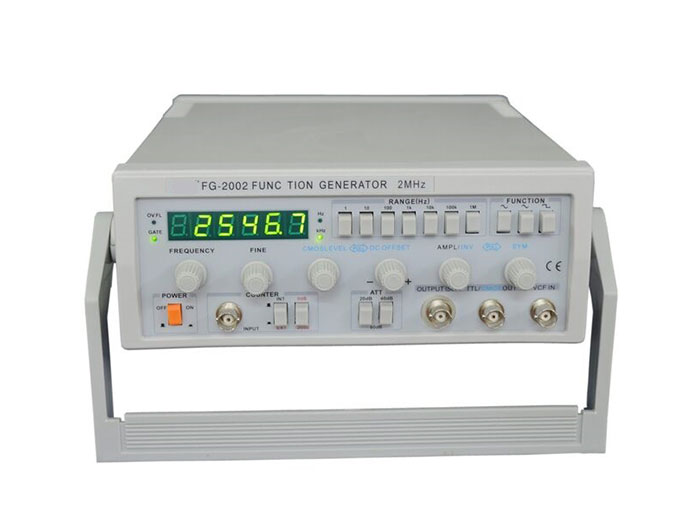

Function Generator / Frequency Counter

Frequency Range
Output: Impedance: 50Ω±10%
0.1Hz-2MHz (FG-2002) Amplitude: no less than 20vp-p (Empty Load)
0.1Hz-10MHz (FG-2010) Attenuation: 20dB 40dB
Waveforms:
DC bias 0-±10V (Continuously adjustable)
Sine wave, Square wave, Triangle wave, Positive & Negative Saw tooth and Positive & Negative Pulse Adjustment range of symmetry
TTL/CMOS output:
Level: TTL pulse low level is no more than Input attenuation: 20dB
0.4V, high level is no less than 3.5V Measurement error: ≤0.003%±1

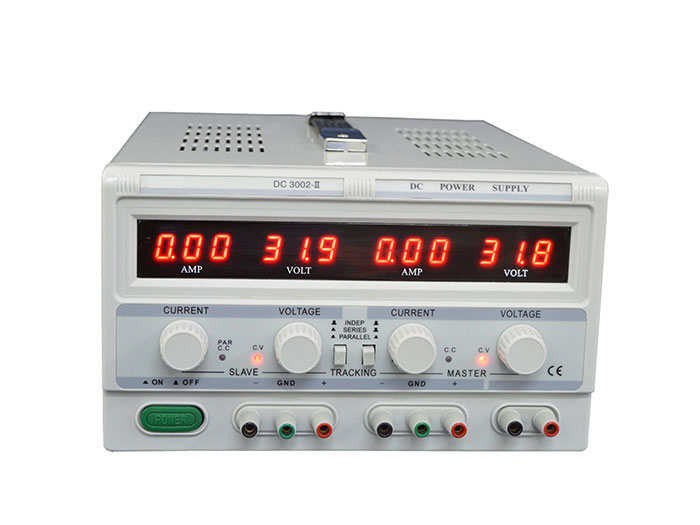

Power Supply’s

Features
Line Regulation: ≤0.01% +3mV
Load Regulation: ≤0.001% +3mV
Ripple and noise: ≤1mV rms
Protection: Constant current and Short-circuit protection
Indication Accuracy: ≤0.5% +1 digit
Input Voltage: 220 VAC ± 10%, 50Hz ± 2Hz
O/P Voltage 0~30V
O/p Current 0~2A (DC 3002 Model)
O/p Current0~3A (DC 3003 Model)
O/p Current0~5A (DC 3005 Model)
O/p Current0~10A (DC 3010 Model)

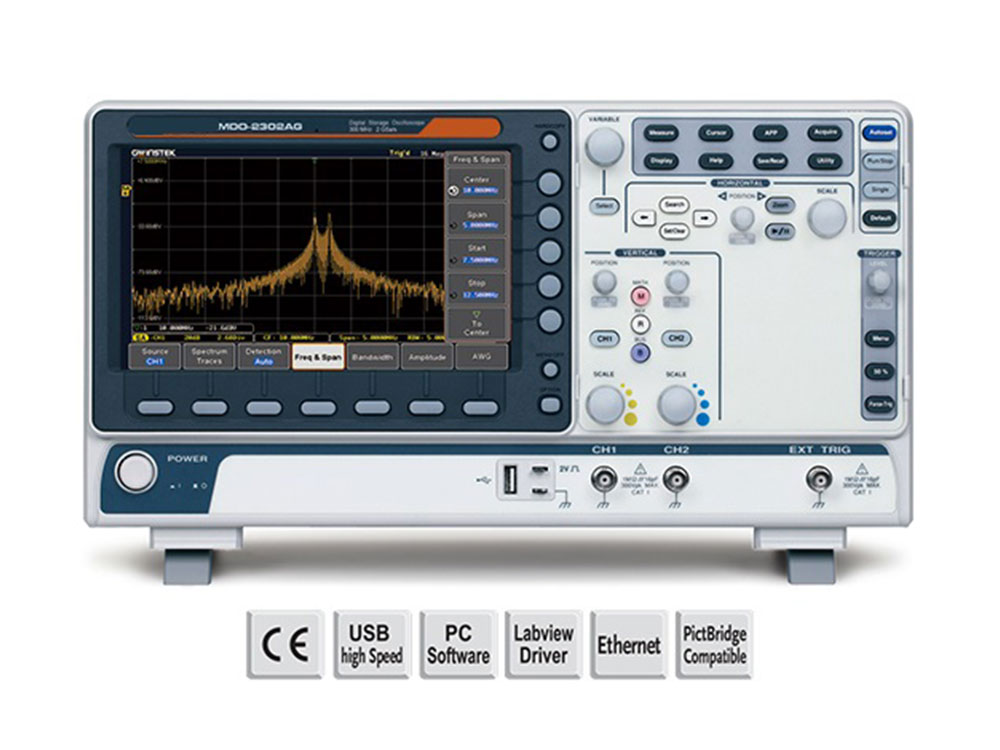

Digital Storage Oscilloscope

300/200/100MHz Bandwidth Selections: 2 Channels
Maximum Real Time Sampling Rate: 2 GSa/s
MDO-2000A Equips with a Spectrum Analyzer
MDO-2000AG Equips with a Spectrum Analyzer; a Dual Channel 25MHz AWG
Per Channel 20M Memory Depth and VPO Waveform Display Technology
Waveform Update Rate up to 120,000 wfm/s
8” WVGA TFT LCD
MDO-2000AG Provides Frequency Response Analysis Function
Maximum 1M FFT Provides Higher Frequency Domain Resolution Measurements
High Pass, Low Pass and Band Pass Filter Functions
29,000 Segmented Memory Sections and Waveform Search Function
I²C/UART/CAN/LIN Serial Bus Trigger and Decoding Functions
Data Log Function is able to Track Signal Changes up to 1000 Hours
Mask Test Function
Network Storage Function

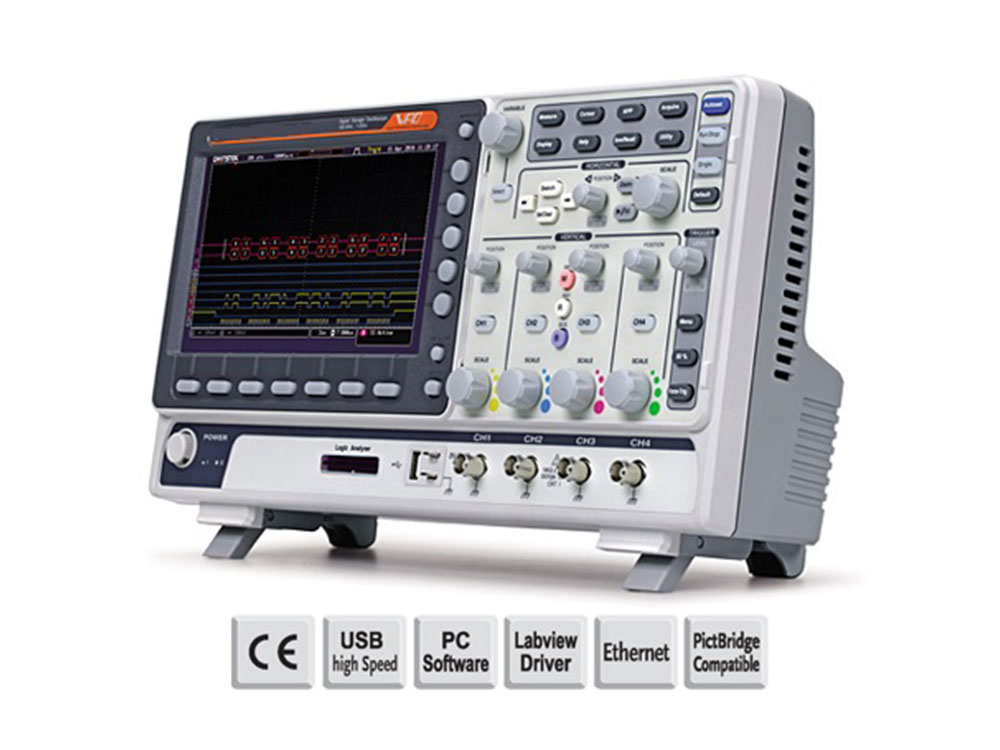

Mixed-signal Oscilloscopes

200/100/70MHz bandwidth selections: 2 or 4 channels
MSO-2000E equips with a 16-channel logic analyzer
MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator
Real time Sampling rate for each channel is 1GSa/s (2-channel models);Maximum real time Sampling rate is 1 GSa/s (4- channel models)
Maximum 10M memory depth and VPO waveform display technology
Waveform update rate up to 120,000 wfms/s
8 ” WVGA TFT LCD screen display
Free Frequency Response Analyzer Software
Maximum 1M FFT provides higher frequency domain resolution measurements
High Pass, Low Pass and Band Pass Filter Functions
29,000 segmented memory sections and waveform search function
