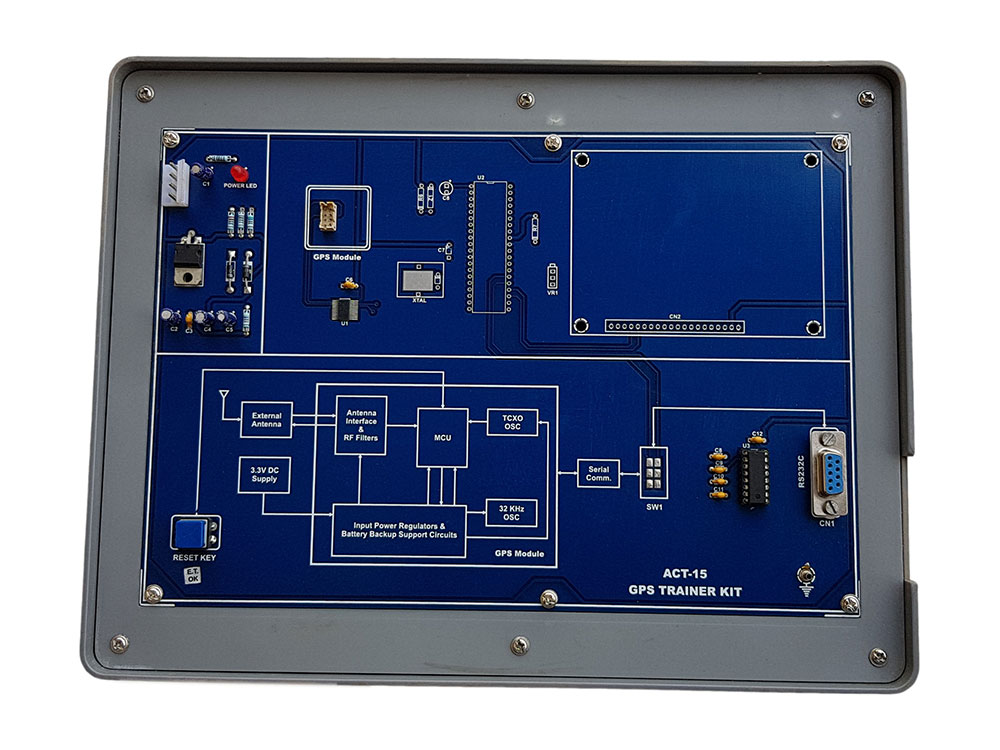

GPS TRAINER

• L1 Frequency, C/A code, 51-channel High Sensitivity Up to -158 dBm tracking, superior urban performances
• Cold Start, Warm Start, Hot Start operation
• 9600 baud rate Serial Transmission
• Built in RS232 Level Converter (MAX232) provided in 9 Pin D type connector
• Windows based software support GPS Status, Signal Level, Sky chart constellation of SV.

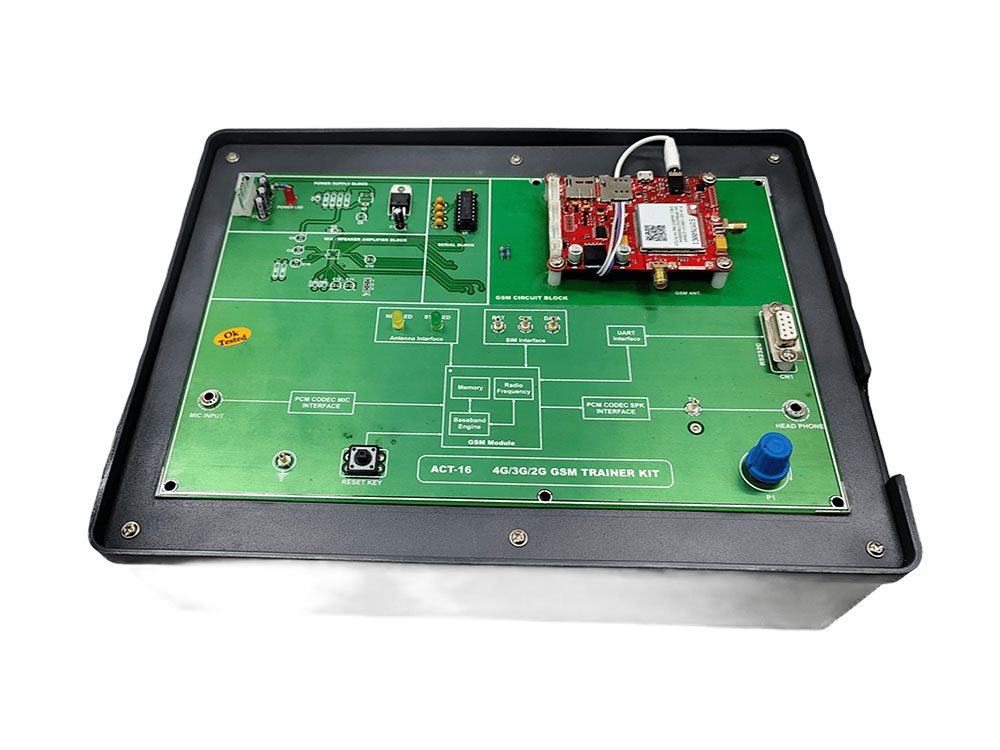

GSM TRAINER

• MODEM- SIM7600E 4G/GSM/GPRS/GPS UART
• TDD-LTE B38/B40/B41
• FDD-LTE B1/B3/B5/B7/B8/B20
• WCDMA/HSDPA/HSPA+ B1/B5/B8
• GSM/GPRS/EDGE 900/1800 MHz
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Professionally Designed Modem with Impedance Matching Layout.
• Works in 4G/3G/2G GSM Networks
• Onboard SMA & UFL connector for GSM Antenna
• Onboard SMA & UFL connector for GPS Antenna
• Onboard 3V3 Voltage regulator for GPS External Active Antenna
• Onboard Micro USB Connector for module firmware updating

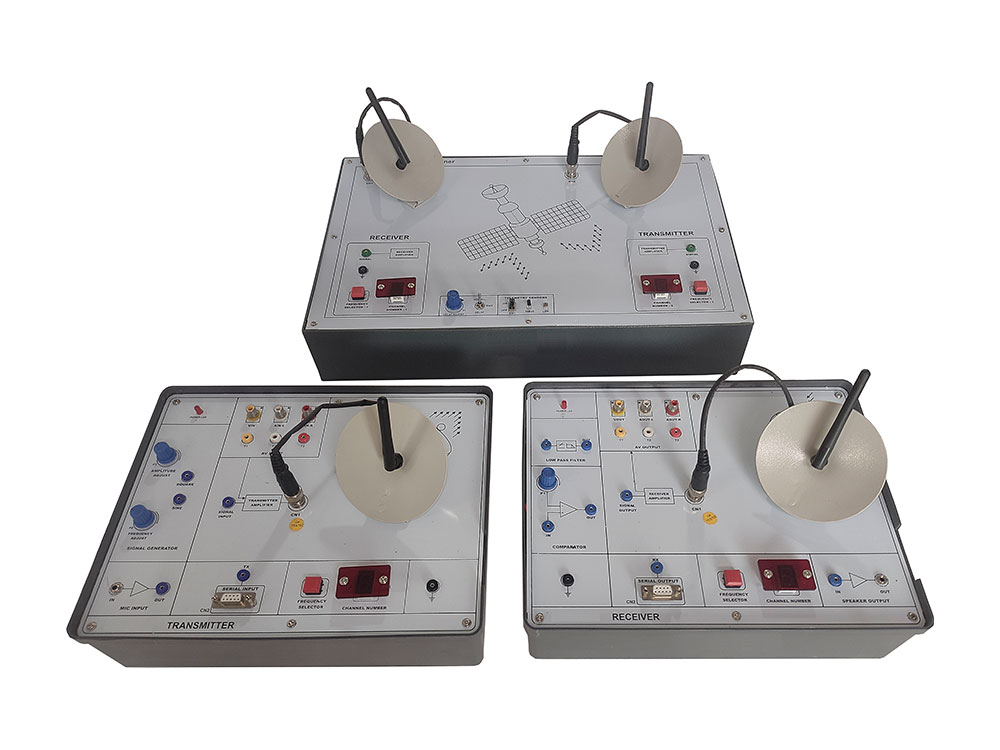

SATELLITE COMMUNICATION TRAINER

• Simultaneous communication of three different signals
• Communicate Audio, Video, Digital data, PC data, Tone, Voice, function generator waveforms etc
• 2414-2510 MHz PLL microwave operation
• Communication of external broad band digital signal
• Choice of different transmitting and receiving frequencies
• Built-in Speaker and Microphone for Voice and Audio link
• Remote detection of Light intensity and environment temperature
• Detachable Dish Antenna at each station
• RS232 port for PC communication

SATELLITE COMMUNICATION TRAINER

• Simultaneous communication of three different signals
• Communicate Audio, Video, Digital data, PC data, Tone, Voice, function generator waveforms etc
• 5740-5880 MHz PLL microwave operation
• Communication of external broad band digital signal
• Choice of different transmitting and receiving frequencies
• Built-in Speaker and Microphone for Voice and Audio link
• Remote detection of Light intensity and environment temperature
• Detachable Dish Antenna at each station
• RS232 port for PC communication

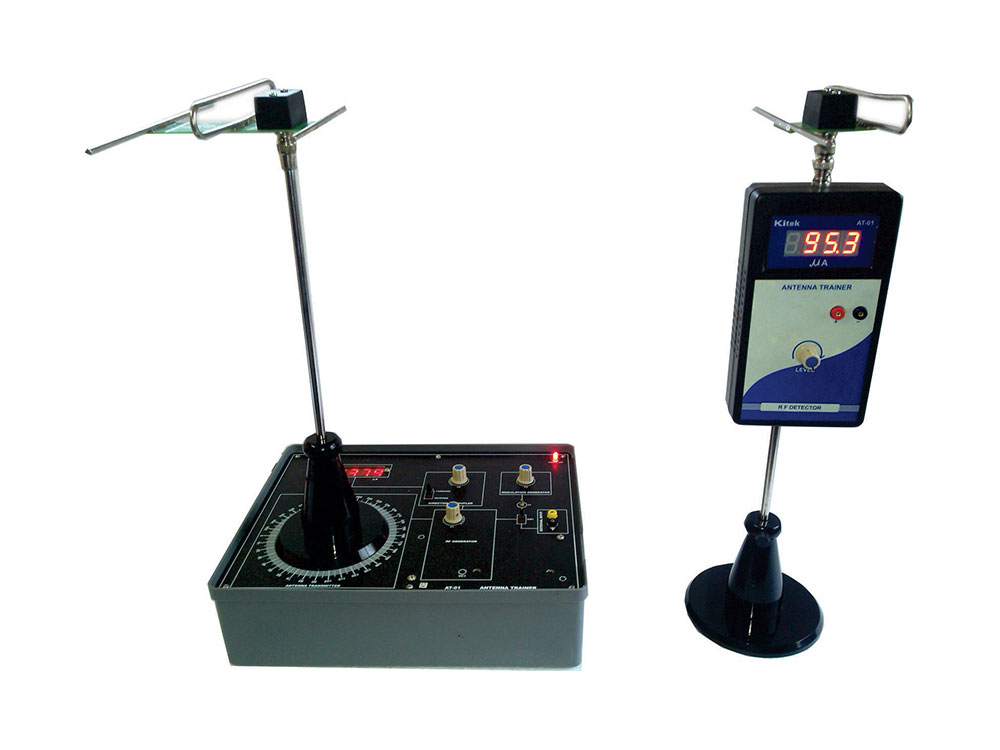

ANTENNA TRAINER

• Provides RF generated output of approx.750 MHz with output adjustment.
• Provides Tone generated output of approx.1 KHz with output adjustment.
• Forward And Reverse Direction Coupler
• Antenna rotation of 0-360º with Antenna Resolution of 1º
• Receiving Antenna is Folded dipole type with reflector and Digital meter
• Digital meter is provided for Forward & Reverse Indication.
• Twenty One different types of Antennas are
• Goniometer is provided on main panel with Slider Type Matching Stub provided

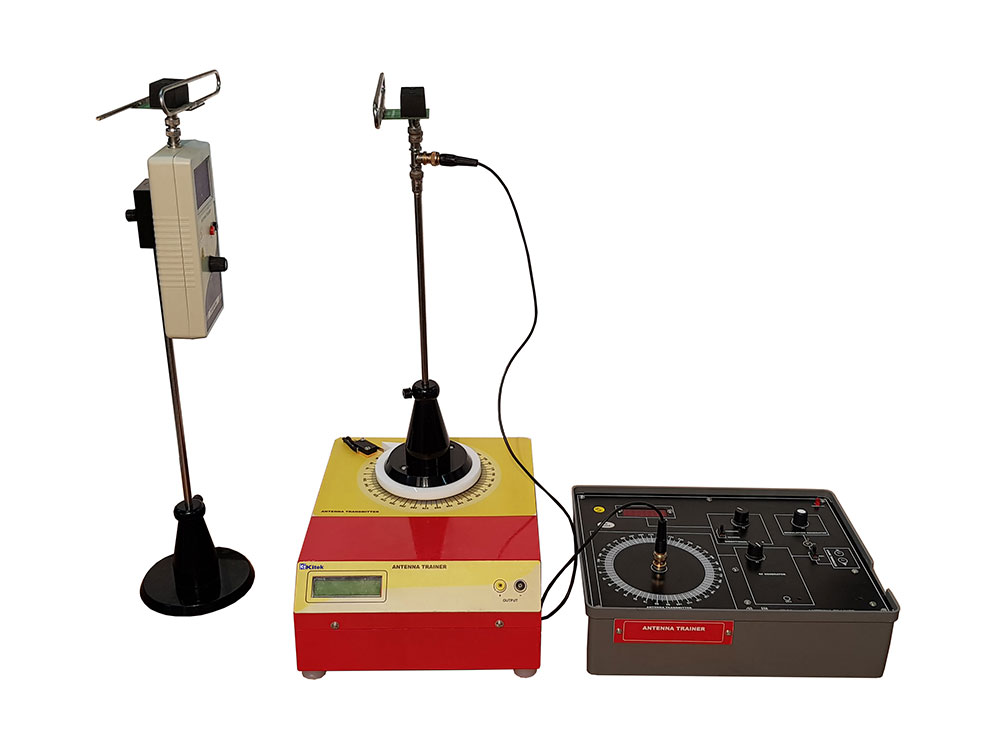

ANTENNA TRAINER MOTORIZED

• RF Generator Provides RF generated output of approx.750 MHZ
• Tone Generator Provides Tone generated output of approx.1KHz
• Direction Coupler Forward And Reverse Direction Coupler
• Antenna

  Antenna rotation of 0-360º (Motorized)
  Antenna Resolution is of 1º
  Receiving Antenna is folded dipole type with Reflector and Digital meter
  Twenty One different types of Antennas

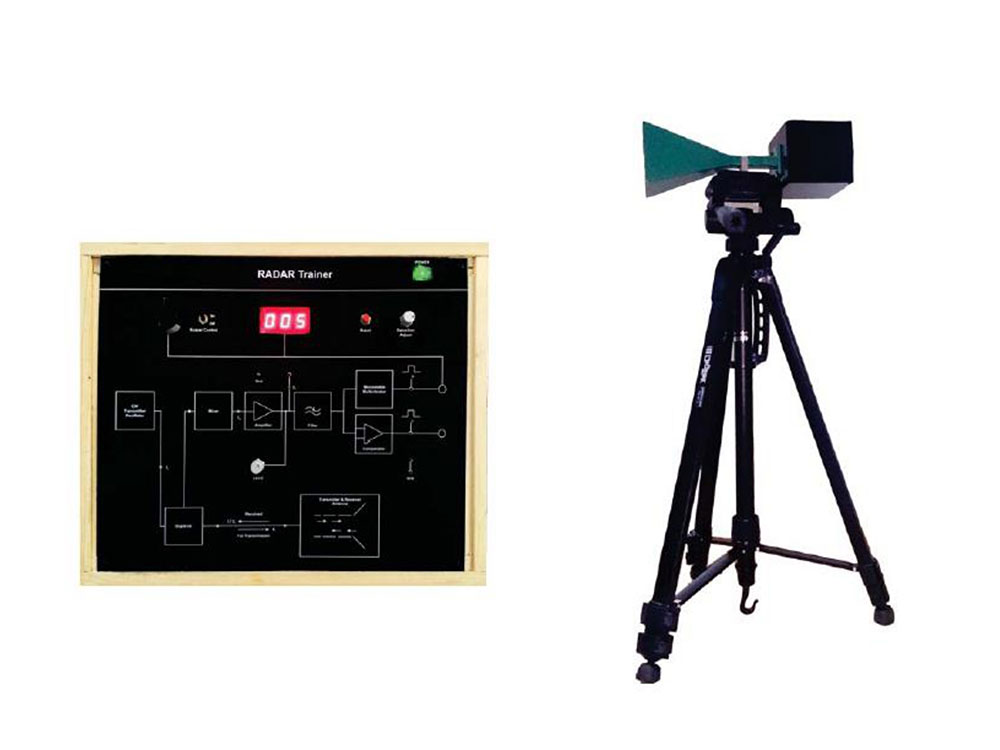

RADAR TRAINER

• Radar Complete hardware and software setup toDemonstrate concepts
• Transmitter Frequency: 10 GHz
• Output Power: 10 to 15 mW
• Operating Voltage: 8.6 V
• Antenna: Horn
• IF Output: Audio range
• Signals study on Software / Oscilloscope with the help of test points given on trainer
• Object counter provided on trainer
• Real time fan RPM measurements and vibrations
• Measurements with the help of tuning forks
• Tripod stand provided for height and levelMatching
• LED Indication for Doppler Echo Signal
• On board alarm for detected signals
