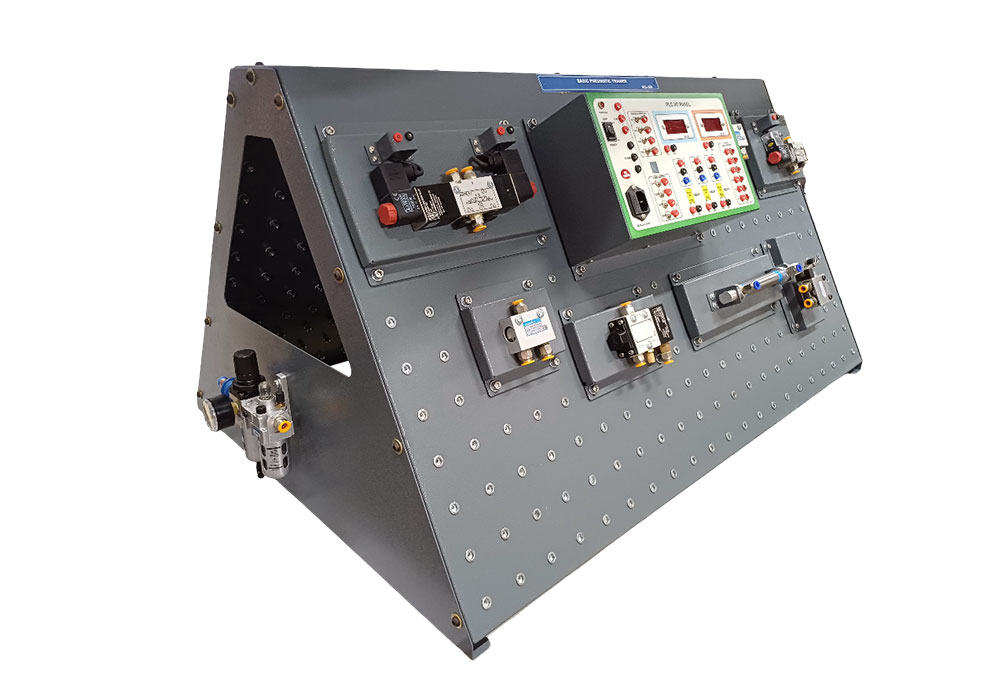

ELECTRO-PNEUMATIC TRAINER

• Electro-Pneumatic Trainer System is a very versatile self - contained training package for the teachers and students in pneumatics.
• Electro-Pneumatic Trainer consists of flat control panel with general purpose component area provided using 30X30 mm Aluminum profile rack with MS Plate size of 1115 x 940 mm (W x H).
• General purpose area of size 1000 x 700 mm (W x H) for fixing Pneumatic Component.
• Optionally available Pneumatic components, PLC’s & HMI’s makes it suitable for beginner as well as advance user.
• Electronics control having below components mounted in numbers of ABS enclosure having
• 230V AC Supply input
• 24V/2A DC output Power Supply
• 5 No’s of Toggle Switch /2A
• Dual Cyclic Timer Output NO, NC control contacts /2A
• Four No’s. of SPDT Switch NO, NC Switch
• 3 No’s of Relay Output NO, NC /5A
• 3 No’s of 22mm Led Indicators
• Filter Regulator Lubricator with 10 bar Pressure Gauge & Slide Isolation valve
• 6 Way Manifold with Slide Isolation valve & Self-sealing fitting.
• 3/2-way Single Solenoid Valve with Spring return up to 10 bar
• 5/2-way Double Solenoid Valve up to 10 bar
• 5/3-way Double Solenoid Valve with spring center up to 10 bar
• Single Acting Cylinder (Bore 100mm stroke) up to 10bar
• Double Acting Cylinder (Bore 100mm stroke) up to 10bar
• Non-Return Valve
• Two Numbers of Flow Control valve
• Quick Exhaust Valve
• Proximity Sensor 8mm dia, PNP type 10-24V Supply
• Two numbers Electrical Limit Switch NO,NC
• 8mm PU Pipe 10meters

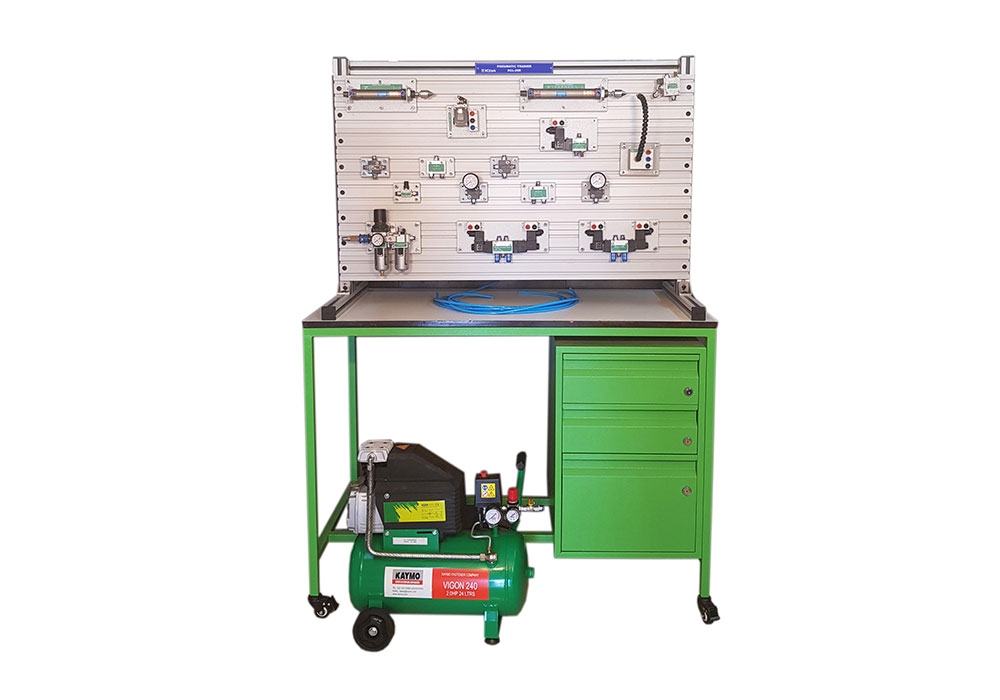

PNEUMATIC TRAINER

• Pneumatic Trainer System is a very versatile self - contained training package for the teachers and students in pneumatics
• Pneumatic Trainer consists of flat control panel with general purpose component area provided using 30X30 mm Aluminum profile rack with MS Plate size of 1115 x 750 mm (W x H).
• General purpose area of size 1000 x 700 mm (W x H) for fixing Pneumatic Component.
• Optionally available Pneumatic components makes it suitable for beginner as well as advance user.
• Filter Regulator Lubricator with 10bar Pressure Gauge & Slide Isolation valve
• 6 Way Manifold with Self-sealing fitting.
• 3/2 Hand lever operated valve with spring return
• 5/2 Hand lever operated valve with spring return
• 5/3 Hand lever operated valve with spring center
• Single Acting Cylinder (Bore 100mm stroke) up to 10bar
• Double Acting Cylinder (Bore 100mm stroke) up to 10bar
• Non-Return Valve
• Two Numbers of Flow Control valve
• Quick Exhaust Valve
• 8mm PU Pipe 10meters
